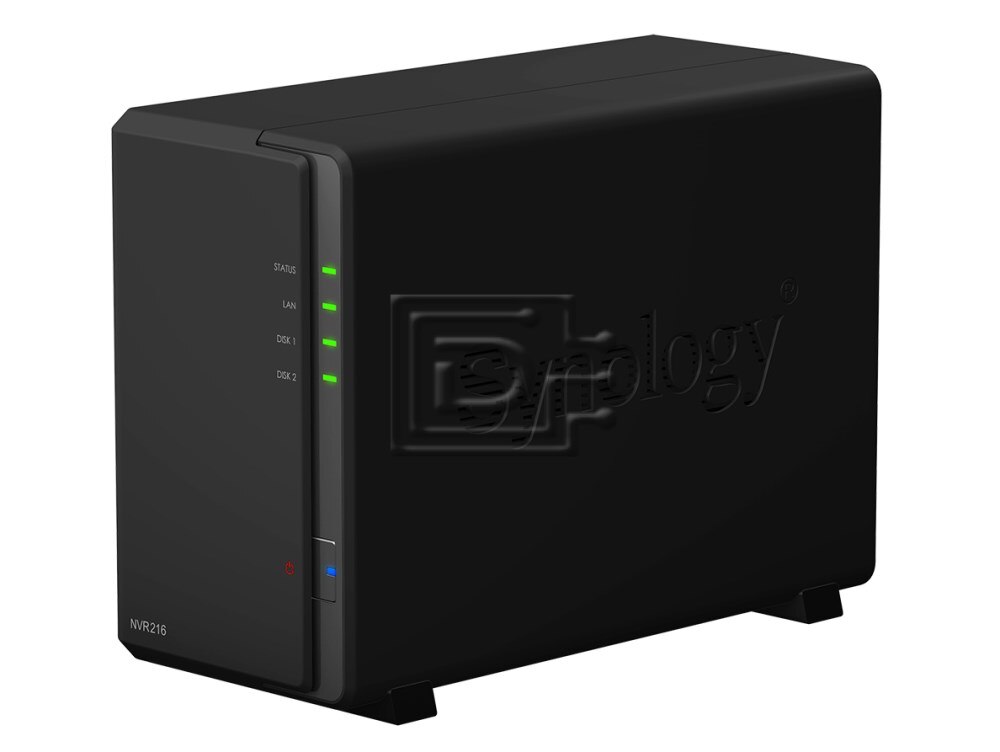

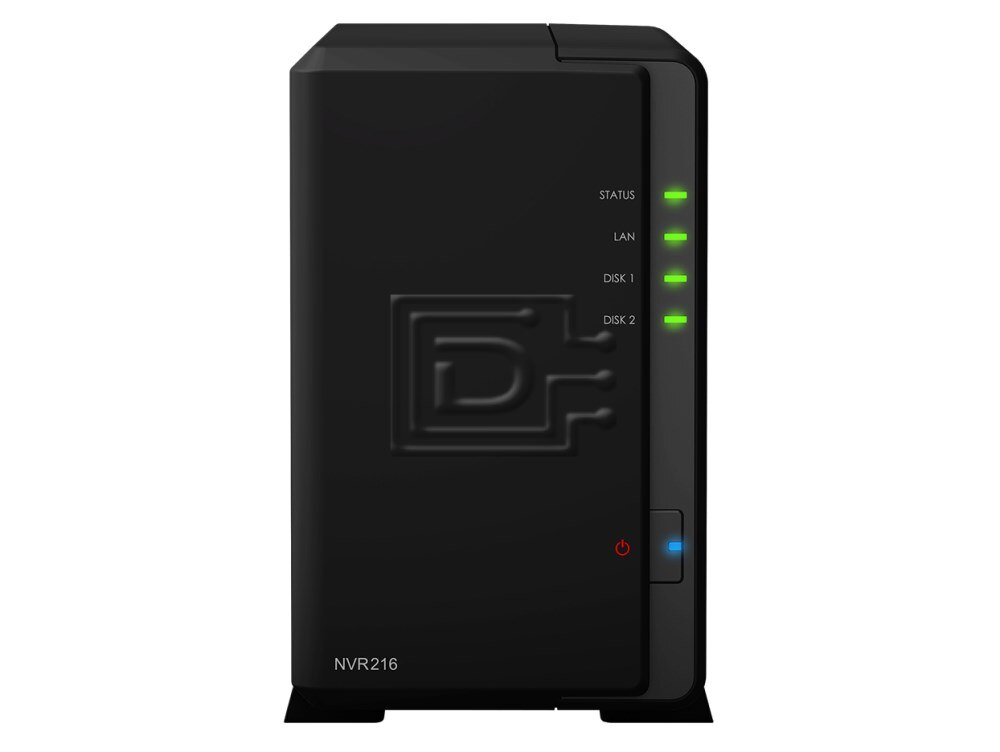

Synology NVR216-4CH Network Video Recorder

Synology NVR216-4CH Network Video Recorder
Interface Types: | Ethernet RJ45 |
Electrical Interface: | Ethernet Gigabit - 1Gbps |
Bays/Ports/Slots: | 2 |
Wattage/VA: | 60W |
Voltage: | 110-240V Multi |
Description
Synology NVR216-4CH 4 Channel 2-Bay Network Video Recorder - Diskless - Brand New
Synology NVR216-4CH 4-Channel Network Video Recorder includes...
- 4x Channels, capable of displaying and recording up to 4 IP cameras
- 2x USB 2.0 ports
- 1x USB 3.0 port
- 1x eSATA port
- 1x HDMI Video Output
- 1GB DDR3 Ram
- 2 drive bays, expandable to 7 when paired with an expansion unit
- Embedded NVR SoC Dual Core 1.0 GHz CPU
- Accepts 3.5" and 2.5" SATA hard drives.
Network Video Recorder NV216
Coming with a dedicated 1080p HDMI output, Synology Network Video Recorder NVR216 is an all-in-one, PC-less surveillance solution designed for offices and retail stores where space is precious. Capable of displaying and recording up to 4 or 9 IP cameras, expandable to 7 bays of storage with DX513, and extremely energy efficient, NVR216 offers an effortless surveillance experience.
1080p HDMI output for local display
Equipped with a dedicated HDMI output to display at 1080p resolution on a monitor, you can watch surveillance feeds and manage cameras and recordings without using a computer. It supports 720p at up to 9 channels/30FPS or even 5 megapixels with fewer channels/FPS.
Specifications
SPECIFICATIONS | |
---|---|
Model Number | NVR216-4CH |
IP Camera Support | 4 |
CPU | |
CPU Model | Emmbedded NVR SoC |
CPU Architecture | 32.bit |
CPU Frequency | Dual Core 1.0 GHz |
MEMORY | |
System Memory | 1 GB DDR3 |
STORAGE | |
Drive Bay(s) | 2 |
Maximum Drive Bays with Expansion Unit | 7 |
Compatible Drive Type | |
Maximum Internal Raw Capacity | 16 TB (8 TB HDD x 2) (Capacity may vary by RAID types) |
Maximum Raw Capacity with Expansion Unit | 56 TB (8 TB HDD x 7) (Capacity may vary by RAID types) |
Maximum Single Volume Size | 16 TB |
EXTERNAL PORTS | |
USB 2.0 Port | 2 |
USB 3.0 Port | 1 |
eSATA Port | 1 |
VIDEO OUTPUTS | |
Video Output | HDMI x 1 |
Audio Input | 3.5 mm Stereo Audio Jack x 1 |
Audio Output | 3.5 mm Stereo Audio Jack x 1 |
APPEARANCE | |
Size (Height x Width x Depth) | 165 mm x 100 mm x 225.5 mm |
Weight | 0.9 kg |
OTHERS | |
RJ-45 1GbE LAN Port | 1 |
Wake on LAN/WAN | Yes |
System Fan | 80 mm x 80 mm x 1 pcs |
Fan Speed Mode | Cool Mode Quiet Mode |
Power Recovery | Yes |
Noise Level | 19 dB(A) |
Scheduled Power On/Off | Yes |
Power Supply Unit / Adapter | 60W |
AC Input Power Voltage | 100V to 240V AC |
Power Frequency | 50/60 HZ, Single Phase |
Power Consumption | |
British Thermal Unit |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 3 lb
Warranty: 3 Year Manufacturer
Condition
Brand New
Warranty
3 Year Manufacturer Warranty
