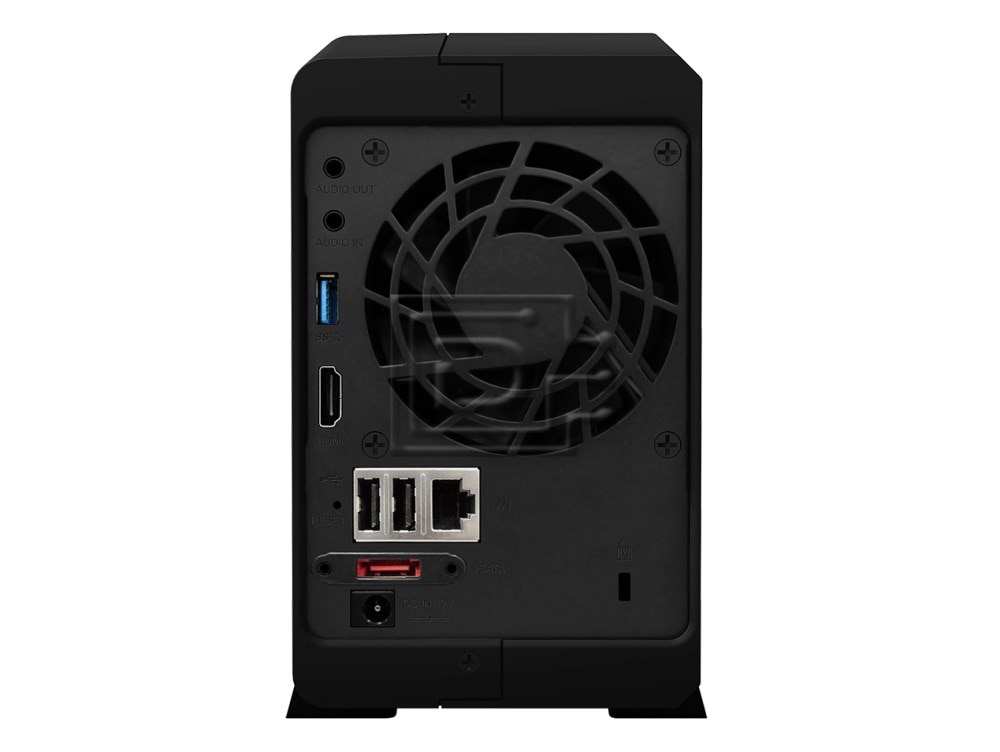

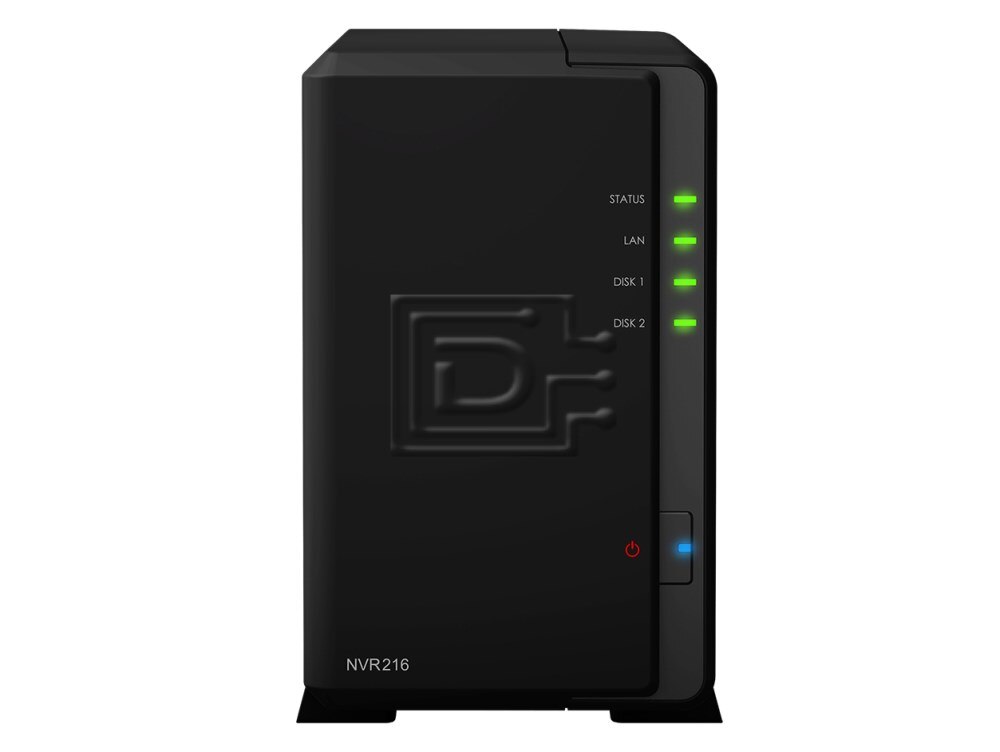

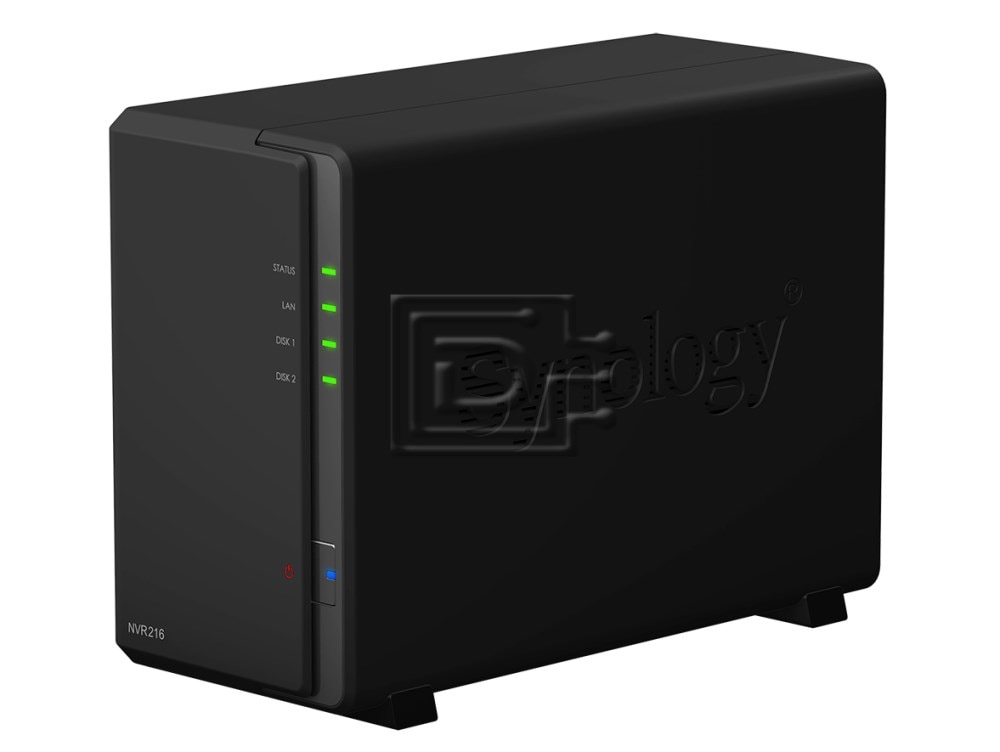

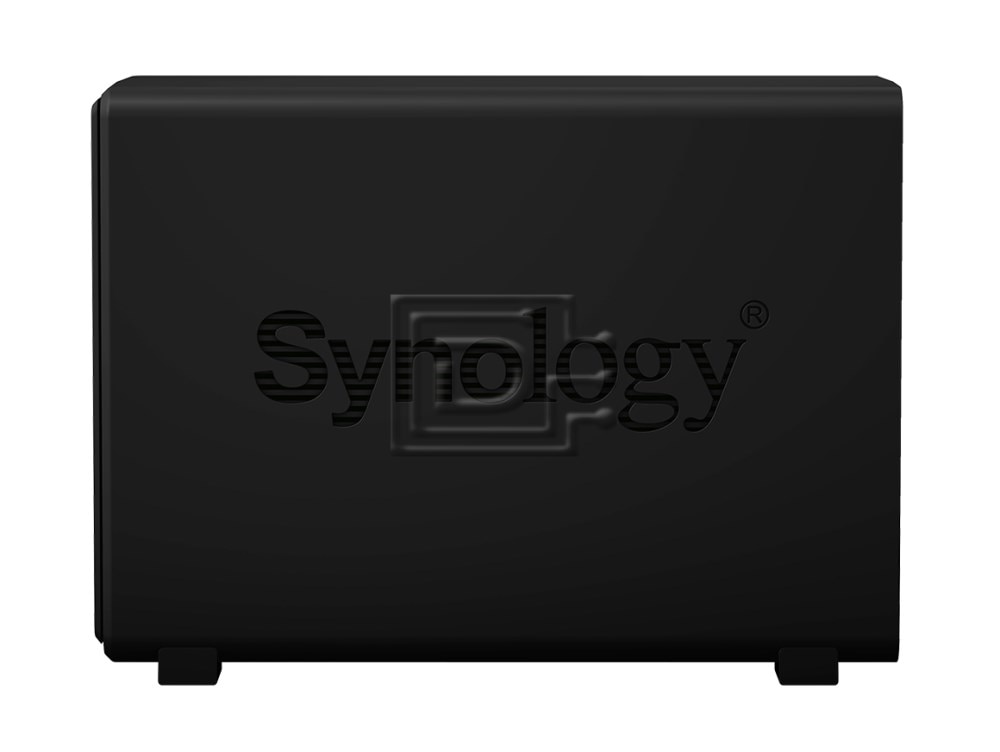

Synology NVR216-9CH Network Video Recorder

Synology Part #/MPN: NVR216-9CH

DiscTech Item #: SYN-NVR216-9CH-BN-3Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Interface Types: SATA, eSATA External, USB 2.0, USB 3.0 3.1 3.2, Ethernet RJ45, HDMI, 3.5mm Headphone

Electrical Interface: Ethernet Gigabit - 1Gbps

On-Board Cache: 1GB

Bays/Ports/Slots: 2

Wattage/VA: 60W

Voltage: 110-240V Multi

Synology NVR216-9CH 9 Channel 2-Bay Network Video Recorder - Diskless - Brand New

Synology NV216-4CH 4-Channel Network Video Recorder includes...

  • 9x Channel Numbers
  • 2x USB 2.0 ports
  • 1x USB 3.0 port
  • 1x eSATA port
  • 1x HDMI Video Output
  • 1GB DDR3 Ram
  • 2 drive bays, expandable to 7 when paired with an expansion unit
  • Embedded NVR SoC Dual Core 1.0 GHz CPU
  • accepts 3.5" and 2.5" SATA hard drives.

Network Video Recorder NV216
Coming with a dedicated 1080p HDMI output, Synology Network Video Recorder NVR216 is an all-in-one, PC-less surveillance solution designed for offices and retail stores where space is precious. Capable of displaying and recording up to 4 or 9 IP cameras, expandable to 7 bays of storage with DX513, and extremely energy efficient, NVR216 offers an effortless surveillance experience.

1080p HDMI output for local display
Equipped with a dedicated HDMI output to display at 1080p resolution on a monitor, you can watch surveillance feeds and manage cameras and recordings without using a computer. It supports 720p at up to 9 channels/30FPS or even 5 megapixels with fewer channels/FPS.

Model NumberNVR216-9CH
IP Camera Support9
CPU ModelEmbedded NVR SoC
CPU Architecture32.bit
CPU FrequencyDual Core 1.0 GHz
System Memory1 GB DDR3
Drive Bay(s)2
Maximum Drive Bays with Expansion Unit7
Compatible Drive Type
  • Maximum Internal Raw Capacity16 TB (8 TB HDD x 2) (Capacity may vary by RAID types)
    Maximum Raw Capacity with Expansion Unit56 TB (8 TB HDD x 7) (Capacity may vary by RAID types)
    Maximum Single Volume Size16 TB
    USB 2.0 Port2
    USB 3.0 Port1
    eSATA Port1
    Video OutputHDMI x 1
    Audio Input3.5 mm Stereo Audio Jack x 1
    Audio Output3.5 mm Stereo Audio Jack x 1
    Size (Height x Width x Depth)165 mm x 100 mm x 225.5 mm
    Weight0.9 kg
    NVR216 (9CH)
    Maximum Channel Number9 (including 9 Free License)
    Total FPS (H.264)
  • 270 FPS @ 720p (1280x720), 9 Channels
  • 90 FPS @ 1080p (1920×1080), 9 Channels
  • 50 FPS @ 3M (2048x1536), 5 Channels
  • 30 FPS @ 5M (2591x1944), 3 Channels
  • Total FPS (MJPEG)
  • 90 FPS @ 720p (1280x720), 9 Channels
  • 40 FPS @ 1080p (1920×1080), 4 Channels
  • 10 FPS @ 3M (2048x1536), 1 Channel
  • 10 FPS @ 5M (2591x1944), 1 Channel
  • Video Compression Format
  • MPEG-4
  • H.264
  • MxPEG(output via local display is not supported)
  • Audio Codec
  • PCM
  • G711
  • G726
  • AMR
  • AAC
    RJ-45 1GbE LAN Port1
    Wake on LAN/WANYes
    System Fan80 mm x 80 mm x 1 pcs
    Fan Speed ModeCool Mode
    Quiet Mode
    Power RecoveryYes
    Noise Level19 dB(A)
    Scheduled Power On/OffYes
    Power Supply Unit / Adapter60W
    AC Input Power Voltage100V to 240V AC
    Power Frequency50/60 HZ, Single Phase
    Power Consumption
  • 14.14 W (Access)
  • 5.09 W (HDD Hibernation)
  • British Thermal Unit
  • 48.28 BTU/hr (Access)
  • 17.38 BTU/hr (HDD Hibernation)

  • Click here to view the manufacturer's item description/brochure

    ROHS Compliant

    Weight: 3 lb

    Warranty: 3 Year Manufacturer

    Brand New

    Condition Levels Explained

    The product is brand new.

    3 Year Manufacturer Warranty

    Product Warranties Explained

    The product has a manufacturer warranty for the time period specified.
