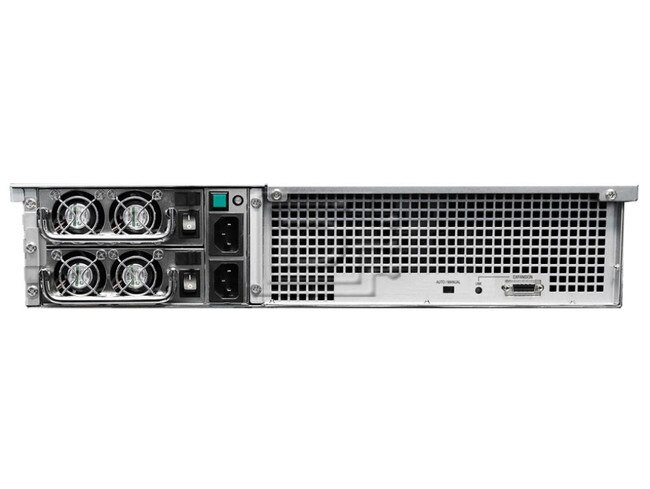

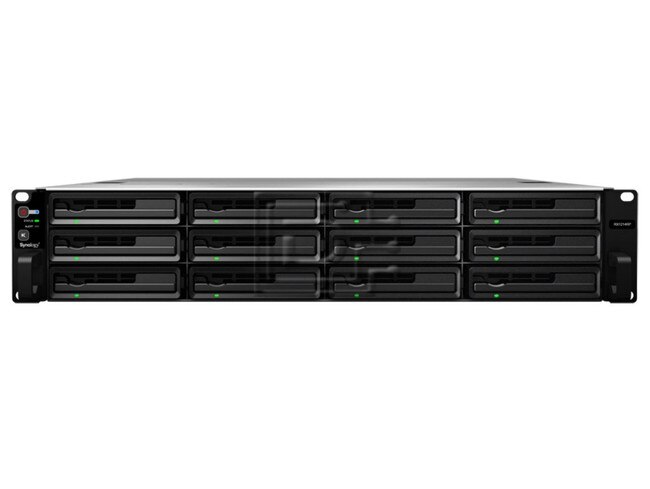

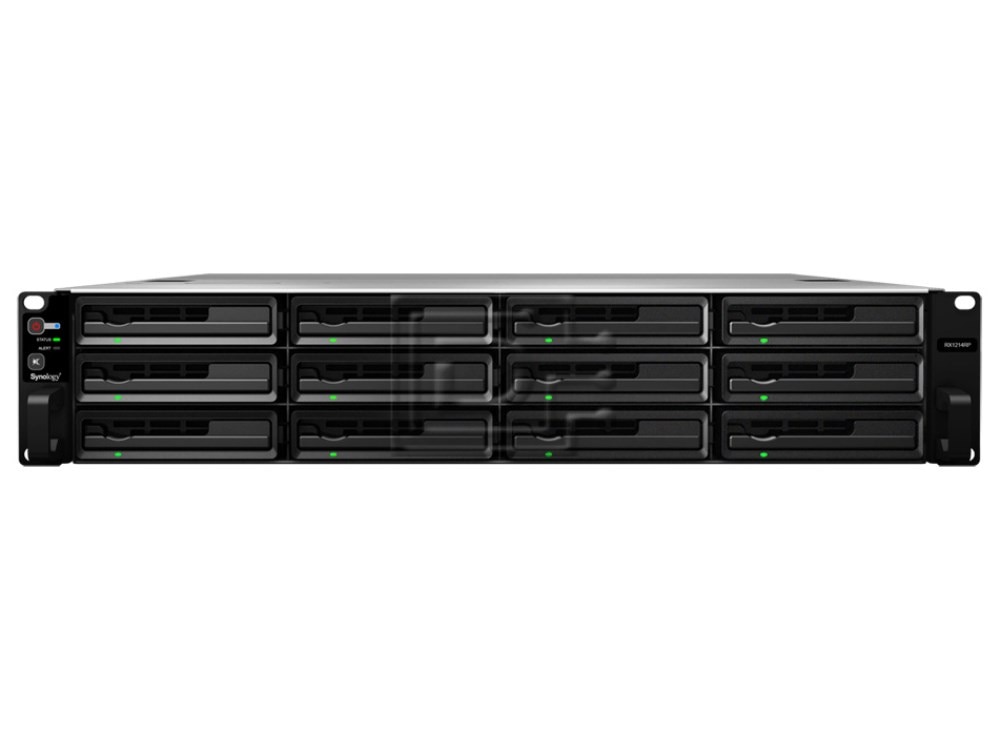

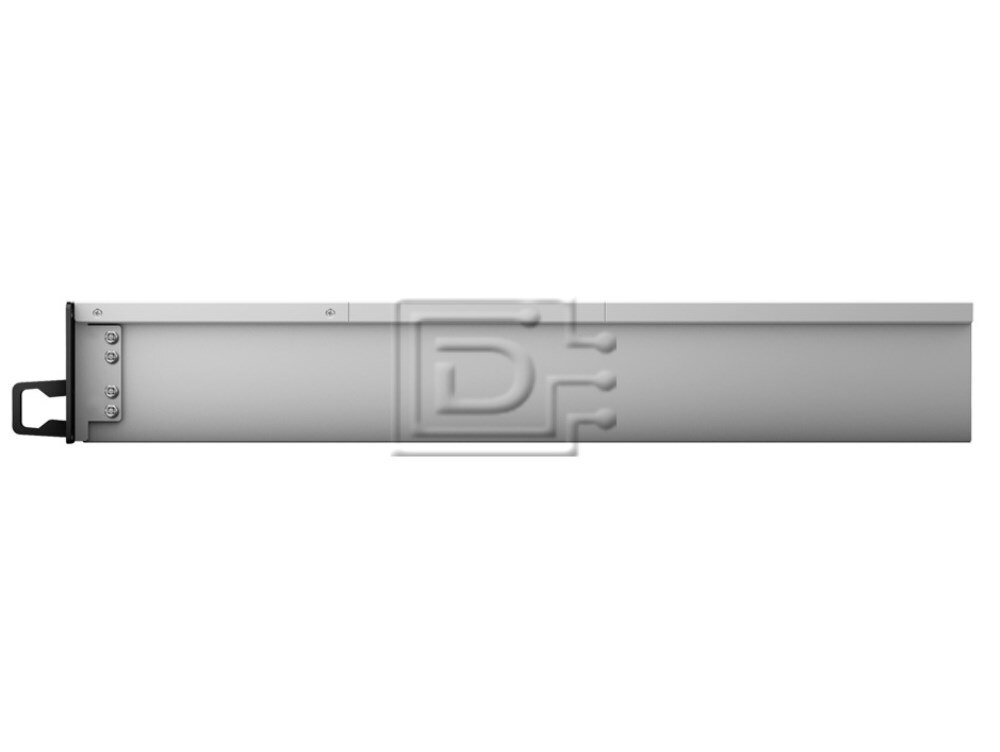

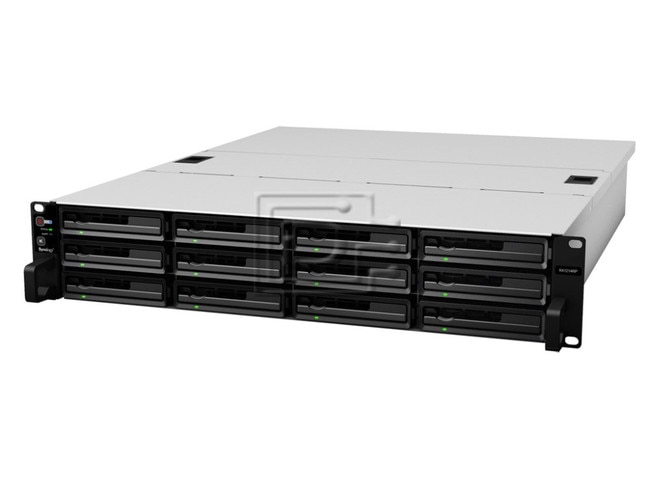

Synology RX1214 Expansion Unit

Synology Part #/MPN: RX1214

DiscTech Item #: SYN-RX1214-BN-5Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Interface Types: SATA, SFF-8470

Electrical Interface: SATA 600 - 6.0Gbps

Bays/Ports/Slots: 12

Wattage/VA: 400W

Voltage: 110-240V Multi

Synology RX1214 12-bay SATA NAS Expansion Unit - Brand New

Synology RX1214 NAS Expansion Unit includes...

  • 1x Infiniband / SFF-8470 port
  • 12 drive bays
  • accepts 3.5" and 2.5" SATA hard drives and 2.5" SATA solid state drives.

RX1214 Scale up your RackStation in a Breeze
Synology RX1214 delivers an effortless solution for volume expansion and data backup for Synology RackStation. The RX1214 seamlessly scales up the storage capacity of the Synology RackStation by an additional 12 hard drives on-the-fly when connected directly to an expansion cable.


  • Plug-n-Use Design for Seamless Storage Space Upgrade
  • Online Volume Expansion
  • SATA III 6Gb/s Interface Support
  • Energy-Saving Deep Sleep Mode
  • Easy Installation with Screwless Rail Kit (optional)
  • Managed from Synology DiskStation Manager (DSM)

Volume Expansion & Backup
When running out of hard drive capacity on the Synology RackStation, Synology RX1214 provides an easy way to immediately scale capacity by additional 12 hard drives. The RAID volume on the Synology RackStation can be expanded directly without having to reformat the existing hard drives, ensuring the Synology RackStation continues its service during the capacity expansion. Synology RX1214 can be used as a dedicated local backup solution for the Synology RackStation. When created as a separate volume, the Synology RX1214 provides a great backup solution to its local hard disks in case of system failure.

Reliable Plug-n-use Design
Synology RackStation securely connects to Synology RX1214 with an high-bandwidth expansion cable that ensures maximum throughput. It allows the hard drives in the connected Synology RX1214 to operate as they are the internal ones of the Synology RackStation, with no lag in data retrieval. With SATA III 6Gb/s interface support, Synology RX1214 unleashes the full performance of the installed drives and provides outstanding data transfer rate.

Green & Easy to Manage
Deep Sleep can be manually configured to take effect automatically when the system has been inactive for a period of time. This not only saves energy but also extends the lifespan of the hard disk. The RX1214 will also smartly power on/off with the attached RackStation, so no user intervention is needed to keep this system running smartly and efficiently.


Supported RackStation models ...

  • RS3614xs+
  • RS3614(RP)xs
  • RS3413xs+
  • RS3412(RP)xs
  • RS3411(RP)xs
  • RS2414(RP)+
  • RS2212(RP)+
  • RS2211(RP)+

Model NumberRX1214
Supported ModelsRS3614xs+
Drive Bay(s)12
Compatible Drive Type3.5in SATA III/SATA II HDD
Maximum Internal Raw Capacity72 TB (6 TB HDD x 12) (Capacity may vary by RAID types)
Hot Swappable DriveYes
RAID Management through Synology DSMYes
Infiniband port1
Size88 mm x 445 mm x 570 mm
Weight12 kg/26.5
Power RecoverySynchronized with the Synology Rack Station
Power Supply Unit / Adapter400W
AC Input Power Voltage100V to 240V AC
Power Frequency50/60 HZ, Single Phase
Power Consumption108 W (Access)
30 W (HDD Hibernation)
2.61 W (Deep Sleep)
British Thermal Unit368.51 BTU/hr (Access)
102.36 BTU/hr (HDD Hibernation)
8.90 BTU/hr (Deep Sleep)
Operating Temperature5°C to 35°C
(40°F to 95°F)
Storage Temperature-10°C to 70°C
(15°F to 155°F)
Relative Humidity5% to 95% RH
System Fan80 mm x 80 mm x 4 pcs
Easy Replacement System FanYes
Noise Level40.5 dB(A)
CertificationFCC Class A
EnvironmentRoHS Compliant
Packaging ContentMain Unit (1)
User's Guide (1)
Accessory Pack (1)
AC Power Cord (1)
Expansion Cable Infiniband (1)
Optional AccessoriesSynology RKS1314 - Rail Kit Sliding

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 26.5 lb

Warranty: 5 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

5 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
