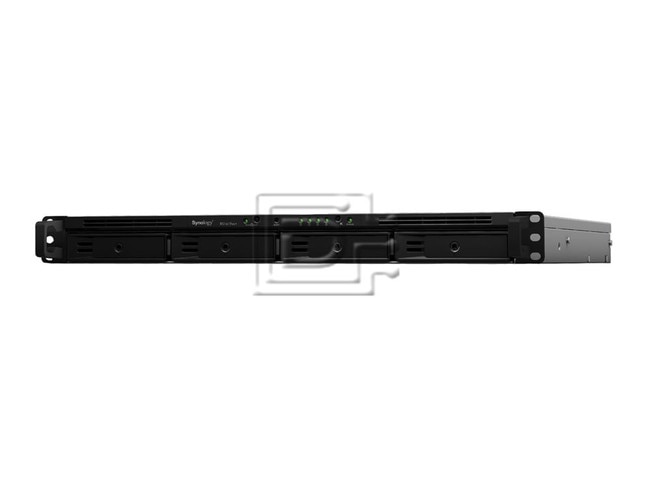

Synology RackStation RS1619XS+ NAS Server

Synology Part #/MPN: RS1619XS-PLUS

DiscTech Item #: SYN-RS1619XS-PLUS-BN-5Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Interface Types: SATA, USB 3.0 3.1 3.2, Ethernet RJ45

Encryption/SED Supported

Electrical Interface: Ethernet Gigabit - 1Gbps

On-Board Cache: 4GB

Bays/Ports/Slots: 4

U Height: 1U

Wattage/VA: 150W

Voltage: 110-240V Multi

Synology RackStation RS1619XS+ 4-bay 1U SATA Quad Core NAS Server - Diskless - Brand New

Synology RackStation RS1619XS+ 4-bay 1U SATA / Serial ATA Quad Core NAS / Network Attached Storage Server - Diskless - Brand New

Synology RackStation RS1619xs+ Network Attached Storage Server includes...

  • 1x Expansion Port
  • 2x USB 3.0 port
  • 4x Ethernet RJ45 1Gb LAN ports
  • Intel Xeon D-1527 Quad Core 2.2 (base) / 2.7 (turbo) GHz
  • 8GB DDR4 ECC UDIMM Ram, expandable up to 64GB (16 GB x 4)
  • 4 drive bays, expandable to 16 when paired with an expansion unit
  • accepts 3.5" and 2.5" SATA hard drives, 2.5" SATA Solid State Drives and M.2 2280 NVMe and SATA Solid State Drives.
  • Hardware Encryption Capable

RackStation RS1619xs+1U rackmount flagship aims for file collaboration and high-performance computation

Fast storage with outstanding computing power
RS1619xs+ is a high-performance and scalable 1U rackmount NAS designed with upgradable memory and M.2 SSD cache configuration to meet the needs of modern businesses that require a flexible, reliable, and efficient storage solution.

  • CPU
    Quad-core up to 2.7GHz
  • RAM options
    8GB DDR4 UDIMM, up to 64GB
  • High Performance
    1,523 MB/s sequential reading, 162,097 iSCSI random read IOPS
  • Scalability
    Up to 16 drives with one RX1217/RX1217RP

Variable options to boost system computing performance
Equipped with a PCIe 3.0 slot, RS1619xs+ supports installing a 10GbE/25GbE NIC for fast data transmission. Built-in M.2 2280 SSD cache slots further benefit IO-intensive tasks, such as virtualization or mail server deployment.

  • M.2 SSD support
    Dual M.2 2280 slots supporting NVMe/SATA SSDs
  • 10GbE/25GbE support
    optional high-speed network capacity for bandwidth-intensive environments

5 year warranty
Synology's 5-year limited warranty provides hardware replacement and technical support via email and telephone services, maximizing your enterprises' return on investment.

Synology Replacement Service (SRS)
SRS provides free advance replacement units as early as the next business day in selected regions, maximizing the service uptime for your mission-critical storage and ensuring your business continuity

Complete iSCSI and virtualization solutions
Synology iSCSI storage supports most virtualization solutions including VMware vSphere, Microsoft Hyper-V, Citrix Xen Server, and OpenStack Cinder, to enhance work efficiency. Create and manage virtual machines running multiple operating systems such as Windows, Linux, and DSM using Virtual Machine Manager.

Next-generation file system for better data protection
The Btrfs file system introduces advanced storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overhead. While ensuring high-level data integrity, it also offers flexible, efficient data protection and recovery tools.

  • Flexible Shared Folder/User Quota System provides comprehensive quota control on all user accounts and shared folders
  • Snapshot Replication provides schedulable and storage capacity-saving data protection with 1,024 shared folder backups and 65,000 system-wide snapshots
  • File or folder level data restoration makes data recovery fast and flexible
  • Automatic file self-healing detects and recovers corrupted files without user intervention

Ultimate Backup Solution
RS1619xs+ integrates various backup applications to safeguard your important data on any device with an intuitive user interface and durable storage technologies.

  • Active Backup for Business
    Centralize backup tasks for VMware, Windows, and file servers. Restore whatever you want fast and reliably when needed.
  • Hyper Backup
    Comprehensively back up your data to a local shared folder, an external device, another Synology NAS, an rsync server, or a public cloud to ensure data safety.
  • Desktop Backup
    Safeguard your PC with Cloud Station Backup. Effortlessly back up data stored on macOS to Synology NAS with Time Machine.
  • Active Backup for Office 365 / G Suite
    On-premise backup solution with a centralized dashboard. Optimize storage efficiency with single instancing and block-level deduplication technology.

Digital asset protection
Powered by Synology DiskStation Manager (DSM), Synology NAS offers advanced security measures to protect against sudden data loss and potential security holes.

  • Security Advisor
    Analyzes system settings, password strength, network preferences, and removes any possible malware.
  • AppArmor
    A kernel-level enhancement that blocks malicious programs from accessing unauthorized system resources.
  • AES 256-bit encryption
    Encrypt shared folders and network data transmission to keep data from unauthorized access.
  • 2-step verification
    Prevent others from logging in to your DSM by generating a one-time password (OTP) on your mobile device.
  • Trust Level
    Customize the trust level in Package Center to avoid installing packages from untrusted sources, safeguarding your NAS from unknown or tampered package files.

Powered by Synology DSM

  • DSM UI
    Award-winning operating system with an intuitive user interface and powerful capabilities.
  • Public Cloud Integration
    Backup and synchronize data easily between your public cloud accounts and your NAS.
  • High Availability
    Ensures seamless service transition between clustered servers in the event of a server failure.
  • Snapshot Replication
    Provides schedulable and instantaneous data protection for shared folders and virtual machines on iSCSI LUNs in the event of disaster.
  • VMM
    Run various operating systems in isolated sandboxes. Seamlessly clone, restore and migrate virtual machines.
  • Security
    Comprehensive built-in security tools are constantly updated to tackle evolving threats and protect your devices.

Model NumberRS1619xs+/RS1619xs-PLUS
Hardware Specifications
  • Intel Xeon D-1527
  • CPU Architecture
  • 64-bit
  • CPU Frequency
  • Quad Core 2.2 (base) / 2.7 (turbo) GHz
  • Hardware Encryption Engine (AES-NI)
  • Yes
  • MemorySystem Memory
  • Memory Module Pre-installed
  • 8 GB (8 GB x 1)
  • Total Memory Slots
  • 4
  • Memory Expandable up to
  • 64 GB (16 GB x 4)
  • StorageDrive Bays
  • 4
  • Maximum Drive Bays with Expansion Unit
  • 16
  • M.2 Drive Slots
  • 2 (NVMe & SATA)
  • Compatible Drive Type
  • 3.5" SATA HDD
  • 2.5" SATA HDD
  • 2.5" SATA SSD
  • M.2 2280 NVMe & SATA SSD
  • Maximum Internal Raw Capacity
  • 56 TB (14 TB drive x 4) (Capacity may vary by RAID types)
  • Maximum Raw Capacity with Expansion Units
  • 224 TB (56 TB + 14 TB drive x 12) (Capacity may vary by RAID types)
  • Maximum Single Volume Size
  • 200 TB (32GB RAM required, for RAID 5 or RAID 6 groups only)
  • 108 TB
  • Hot Swappable Drive
  • Yes
  • External PortsRJ-45 1GbE LAN Port
  • 4 (with Link Aggregation / Failover support)
  • USB 3.0 Port
  • 2
  • Expansion Port
  • 1
  • PCIePCIe Expansion
  • 1 x Gen3 x8 slot (x8 link)
  • Add-in-card support
  • PCIe Network Interface Card
  • File SystemInternal Drives
  • Btrfs
  • EXT4
  • External Drives
  • Btrfs
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+
  • exFAT
  • AppearanceSize (Height x Width x Depth)
  • 44 mm x 480 mm x 518.6 mm
  • Weight
  • 8.16 kg
  • Rack Installation Support
  • 4-post 19" rack (Synology Rail Kit - RKM114/RKS1317)
  • OthersSystem Fan
  • 40 mm x 40 mm x 2 pcs
  • Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
  • Easy Replacement System Fan
  • Yes
  • Power Recovery
  • Yes
  • Noise Level
  • 39.3 dB(A)
  • Scheduled Power On/Off
  • Yes
  • Wake on LAN/WAN
  • Yes
  • Power Supply Unit / Adapter
  • 2 X 150W
  • AC Input Power Voltage
  • 100V to 240V AC
  • Power Frequency
  • 50/60 Hz, Single Phase
  • Power Consumption
  • 68.68 W (Access)
  • 34.78 W (HDD Hibernation)
  • British Thermal Unit
  • 234.35 BTU/hr (Access)
  • 118.67 BTU/hr (HDD Hibernation)
  • Redundant Power Supply (for xs+ and RP model)
  • Yes
  • Environment TemperatureOperating Temperature
  • 5°C to 35°C
  • 40°F to 95°F
  • Storage Temperature
  • -20°C to 60°C
  • -5°F to 140°F
  • Relative Humidity
  • 5% to 95% RH
  • Certification
  • FCC
  • CE
  • BSMI
  • EAC
  • VCCI
  • CCC
  • RCM
  • KC

  • Click here to view the manufacturer's item description/brochure

    ROHS Compliant

    Alternate MPNs: RS1619XS+

    Weight: 18 lb

    Warranty: 3 Year Manufacturer

    Brand New
