Synology RackStation RS18016XS+ NAS Server

Synology Part #/MPN: RS18016XS-PLUS

DiscTech Item #: SYN-RS18016XS-PLUS-BN-5Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Interface Types: SAS Serial Attached SCSI, SATA, USB 2.0, USB 3.0 3.1 3.2, Ethernet RJ45, PCIe

Form Factor: 3.5inx1.0in LFF Hard Drive

Encryption/SED Supported

Electrical Interface: Ethernet Gigabit - 1Gbps

On-Board Cache: 8GB

Bays/Ports/Slots: 12

Wattage/VA: 500W

Voltage: 110-240V Multi

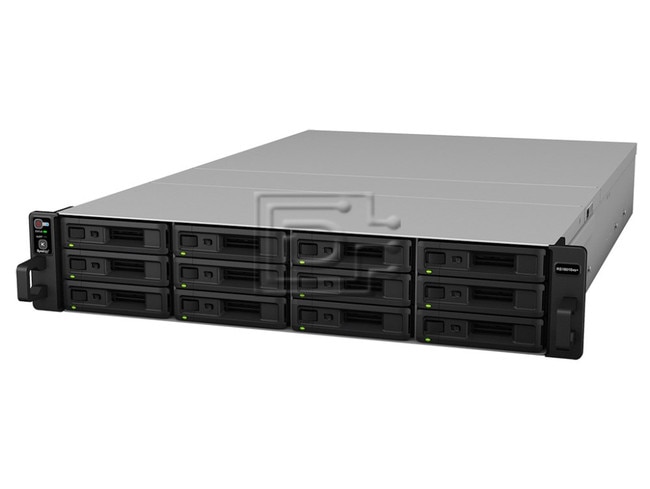

Synology RackStation RS18016XS+ 12-Bay SAS / SATA Quad Core Redundant AES-NI NAS Server - Diskless - Brand New

Synology RackStation RS18016xs+ 12-Bay Network Attached Storage Server includes ...

  • 2x USB 2.0 ports
  • 2x USB 3.0 ports
  • 2x Expansion ports
  • 4x Ethernet RJ45 1GbE LAN ports
  • 2x PCIe x8 slots for 10GbE / 1GbE Network Card
  • 8GB DDR3 ECC Ram, expandable up to 32GB (8 GB X 4)
  • 12 drive bays, expandable to a maximum of 180 bays when paired with an expansion unit
  • Intel Xeon E3-1230 v2 Quad Core 3.3 GHz CPU
  • Accepts 3.5" and 2.5" SATA and SAS hard drives and 2.5" SATA and SAS solid state drives.

RackStation RS18016xs+
Scalable and converged NAS for demanding businesses

With superior performance and hardware specifications, RS18016xs+ provides a reliable, scalable, and easily managed network attached storage solution for enterprises seeking uninterrupted service and comprehensive business applications.

Model NumberRS18016xs+/RS18016xs-PLUS
CPU ModelIntel Xeon E3-1230 v2
CPU Architecture64-bit
CPU FrequencyQuad Core 3.3 GHz
Floating PointYes
Hardware Encryption Engine (AES-NI)Yes
System Memory8 GB DDR3 ECC
Memory Module Pre-installed4 GB x 2
Total Memory Slots4
Memory Expandable up to32 GB (8 GB x 4)
Drive Bay(s)12
Maximum Drive Bays with Expansion Unit180
Compatible Drive Type
  • 3.5" SAS HDD
  • 2.5" SAS HDD
  • 2.5" SAS SSD
  • Maximum Internal Raw Capacity96 TB (8 TB HDD x 12)(Capacity may vary by RAID types)
    Maximum Raw Capacity with Expansion Units1440 TB (8 TB HDD x 180) (Capacity may vary by RAID types)
    Maximum Single Volume Size
  • 200 TB (32GB RAM required, for RAID 5 or RAID 6 groups only)
  • 108 TB
  • Hot Swappable DriveYes>
    USB 2.0 Port2
    USB 3.0 Port2
    Expansion Port2
    Size (Height x Width x Depth)88 mm x 430 mm x 692 mm
    Weight14.5 kg
    RJ-45 1GbE LAN Port4 (with Link Aggregation / Failover support)
    PCIe x8 Slot for 10Gbe/ 1Gbe Network Card2 (at x8 mode)
    Wake on LAN/WANYes
    System Fan80 mm x 80 mm x 4 pcs
    Fan Speed ModeCool Mode
    Quiet Mode
    Easy Replacement System FanYes
    Wireless Support (dongle)Yes
    Power RecoveryYes
    Noise Level45.1 dB(A)
    Power RecoveryYes
    Scheduled Power On/OffYes
    Power Supply Unit / Adapter2 x 500W
    AC Input Power Voltage100V to 240V AC
    Power Frequency50/60 HZ, Single Phase
    Power Consumption
  • 106.54 W (Access)
  • 71.78 W (HDD Hibernation)
  • British Thermal Unit
  • 363.77 BTU/hr (Access)
  • 245.09 BTU/hr (HDD Hibernation)
  • Redundant Power Supply (for xs+ and RP model)Yes

    Click here to view the manufacturer's item description/brochure

    ROHS Compliant

    Alternate MPNs: RS18016xs+

    Weight: 33 lb

    Warranty: 5 Year Manufacturer

    Brand New

    Condition Levels Explained

    The product is brand new.

    5 Year Manufacturer Warranty

    Product Warranties Explained

    The product has a manufacturer warranty for the time period specified.
