Synology Part #/MPN: RS3617XS-PLUS
DiscTech Item #: SYN-RS3617XS-PLUS-BN-5Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:5 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: SATA, USB 3.0 3.1 3.2, Ethernet RJ45
Electrical Interface: Ethernet 10Gigabit - 10Gbps
Bays/Ports/Slots: 12
Wattage/VA: 500W
Voltage: 110-240V Multi

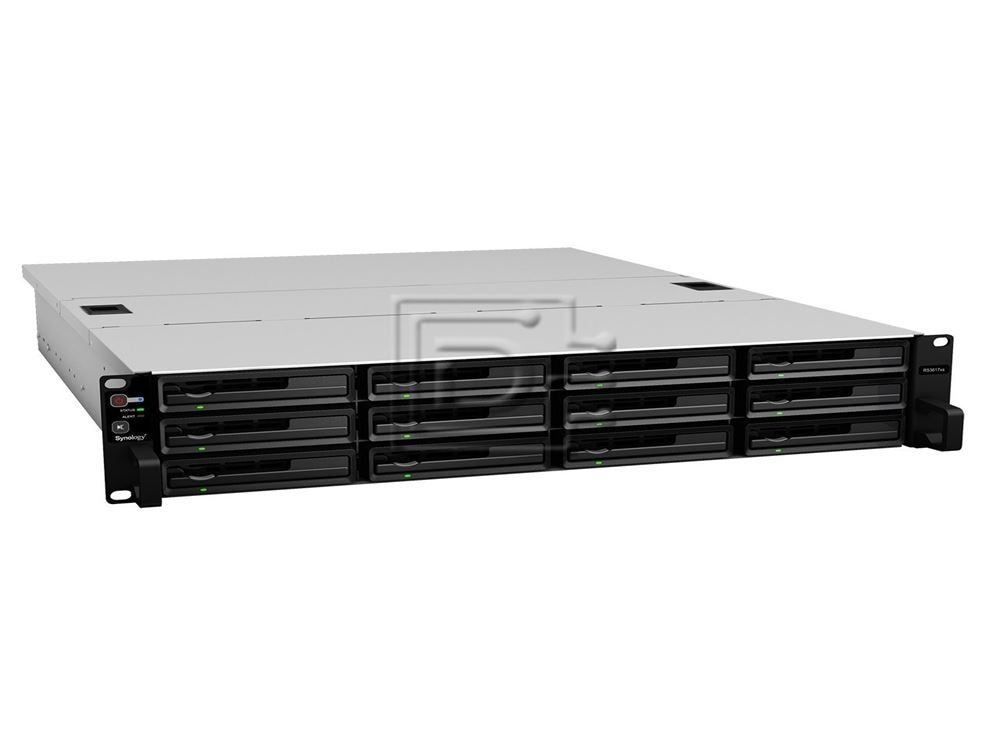

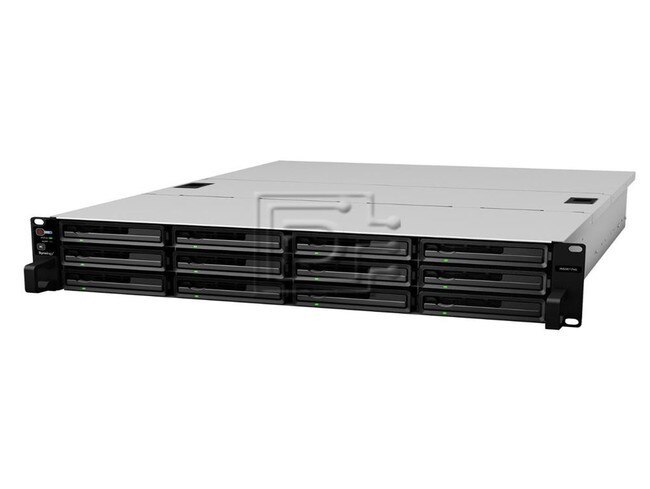

Synology RackStation RS3617XS-PLUS / RS3617XS+ 12-bay SAS / SATA Six-Core Redundant 10GbE NAS Server - Brand New
Synology RackStation RS3617RPxs Redundant Network Attached Storage Server includes...
- 2x USB 3.0 ports
- 4x Ethernet RJ45 1Gb LAN ports
- Six Core 2.2 (base) / 2.7 (turbo) GHz
- 12 drive bays, expandable to a maximum of 36 bays when paired with an expansion unit
- 8GB DDR4 ECC Ram, expandable up to 64GB (16 GB X 4)
- accepts 3.5" and 2.5" SATA hard drives and 2.5" SATA solid state drives.
RackStation RS3617xs+
RS3617xs+ provides a rock-solid and high performing storage solution with over 693,000 IOPS and 5,200 MB/s sequential read throughput1. DDR4 ECC UDIMM guarantees data accuracy and performance for mission-critical environments.
Blazing Performance
RS3617xs+ comes with two 10GBase-T and four 1GbE RJ-45 ports by default and allows installation of two optional 10GbE Network Interface Cards (NIC), bringing flexible network configuration and bandwidth utilization. With the help of a new Intel® Xeon D-1531 6-core processor, RS3617xs+ delivers blazing performance at over 4,937 MB/s sequential throughput and 556,727 IOPS under a RAID 5 configuration with 10GbE Link Aggregation enabled
Equipped with 8GB DDR4 ECC UDIMM and up to 64GB expansion support, RS3617xs+ ensures data accuracy as well as superior performance to provide a rigorous foundation for the mission-critical tasks of your business.
Btrfs: Next Generation Storage Efficiency
RS3617xs+ integrates the Btrfs file system, bringing the most advanced storage technologies to meet the management needs of modern large scale businesses:
● Flexible Shared Folder/User Quota System provides comprehensive quota control on all user accounts and shared folders.
● Advanced snapshot technology with customizable backup schedule allows up to 1,024 copies of shared folder backups and 65,000 copies of system-wise snapshots without occupying huge storage capacity and system resources.
● File or folder level data restoration brings huge convenience and saves time for users who wish to restore only the specific single file or folder.
● Cloud Station with file versioning reduces down to half of storage consumption when compared with ext4 file system.
Virtualization Ready
RS3617xs+ provides seamless storage solutions for virtualization environments, including VMware, Citrix, Hyper-V, and OpenStack Cinder. With VMware vSphere 6 and VAAI integration certified, RS3617xs+ helps offload specific storage operations and optimizes computation power for unparalleled performance and efficiency in VMware environments. As the centralized storage of a virtual environment, RS3617xs+ enables virtual machine migration, allowing movement from server to server whilst eliminating service downtime and disruption to user. Windows Offloaded Data Transfer (ODX) and Synology Advanced LUN support greatly improves the efficiency on massive data transfer and migration. With OpenStack Cinder support, RS3617xs+ can be used as a block-based storage component for servers complying with the Cinder API.
RackStation RS3617xs+
Synology RackStation RS3617xs+ provides reliable, superior-performance network attached storage solution for large scale businesses with comprehensive business applications. With builtin 10GBase-T support and scalability of up to 36 drives, RS3617xs+ simplifies data management, optimizes virtualization environments, and rapidly expands storage capacity with minimal time investment in setup and maintenance. Synology RS3617xs+ is backed with Synology’s 5-year limited warranty.
● Reliable, superior-performance for enterprises seeking uninterrupted service with comprehensive business applications.
● Intel Xeon D-1531 6-core CPU boosting performance at over 4,937 MB/s throughput and 556,727 IOPS1
● Dual 10GBase-T ports and optional 10GbE NICs
● 8GB DDR4-2133 ECC UDIMM, expandable up to 64GB
● Scale up to 36 drives with Synology RX1217/RX1217RP
● Complete virtualization solution for VMware, Windows Hyper-V, and Citrix
● OpenStack Cinder support
● Advanced Btrfs file system offering 65,000 system-wide snapshots and 1,024 snapshots per shared folder
● Redundant power supplies ensure service uptime
● Backed with Synology’s 5-year limited warranty & Synology Replacement Service (SRS)
| SPECIFICATIONS | |
|---|---|
| Model Number | RS3617XS+ / RS3617XS-PLUS |
| HARDWARE SPECIFICATIONS | |
| CPU Model | Intel Xeon D-1531 |
| CPU Architecture | 64-bit |
| CPU Frequency | Six Core 2.2 (base) / 2.7 (turbo) GHz |
| Hardware Encryption Engine (AES-NI) | Yes |
| MEMORY | |
| System Memory | 8 GB DDR4 ECC UDIMM |
| Memory Module Pre-installed | 8 GB x 1 |
| Total Memory Slots | 4 |
| Memory Expandable up to | 64 GB (16 GB x 4) |
| STORAGE | |
| Drive Bay(s) | 12 |
| Compatible Drive Type | 3.5in SATA HDD 2.5in SATA HDD 2.5in SATA SSD |
| Maximum Internal Raw Capacity | 120 TB (10 TB HDD x 12) (Capacity may vary by RAID types) |
| Maximum Raw Capacity with Expansion Units | 360 TB (10 TB HDD x 36) (Capacity may vary by RAID types) |
| Maximum Single Volume Size | |
| Hot Swappable Drive | Yes |
| FILE SYSTEM | |
| Internal Drives | Btrfs EXT4 |
| External Drives | Btrfs EXT4 EXT3 FAT NTFS HFS+ exFAT (purchased separately) |
| APPEARANCE | |
| Size (Height x Width x Depth) | 88 mm x 430.5 mm x 692 mm |
| Weight | 14.5 kg |
| OTHERS | |
| RJ-45 1GbE LAN Port | 4 (with Link Aggregation / Failover support) |
| RJ-45 10GbE LAN Port | 2 (with Link Aggregation / Failover support) |
| PCIe Slot for Network Card | 2 x Gen3 x8 slots (x8 link) |
| System Fan | 80 mm x 80 mm x 4 pcs |
| Fan Speed Mode | Full-Speed Mode Cool Mode Quiet Mode |
| Easy Replacement System Fan | Yes |
| Wireless Support (dongle) | Yes |
| Noise Level | 50.2 dB(A) |
| Power Recovery | Yes |
| Scheduled Power On/Off | Yes |
| Power Supply Unit / Adapter | 2 x 500W |
| AC Input Power Voltage | 100V to 240V AC |
| Power Frequency | 50/60 HZ, Single Phase |
| Redundant Power Supply | Yes (2x 500W) |
| ENVIRONMENT TEMPERATURE | |
| Operating Temperature | 5°C to 35°C (40°F to 95°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Relative Humidity | 5% to 95% RH |
| Certification | FCC Class A CE Class A BSMI Class A |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 50 lb
Warranty: 5 Year Manufacturer
Brand New
The product is brand new.
5 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
