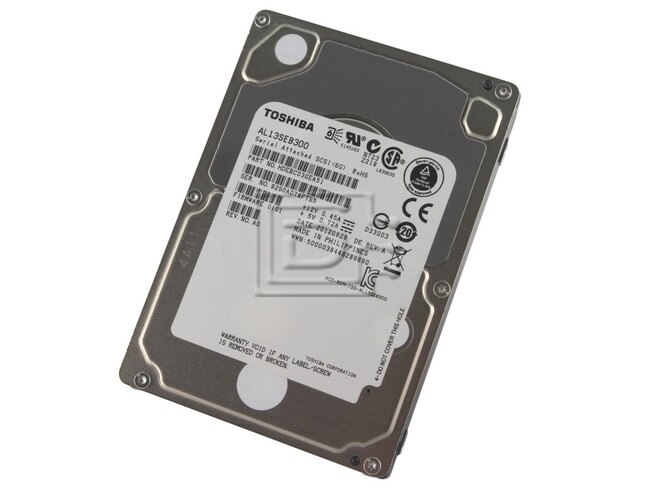

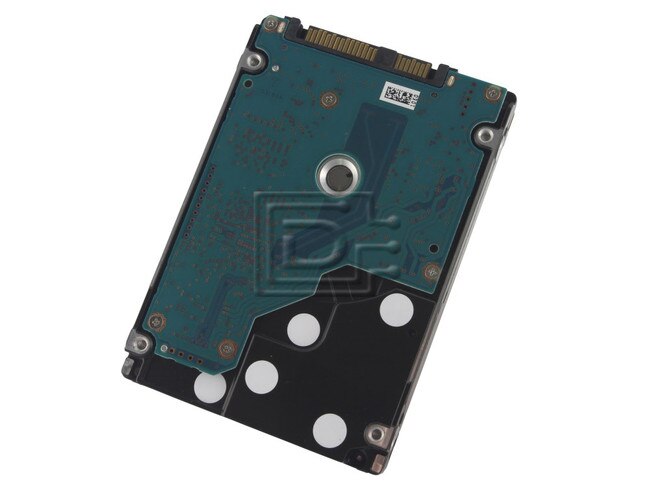

Toshiba AL13SEB300 300GB SAS Hard Drives

Toshiba Part #/MPN: AL13SEB300

DiscTech Item #: TOS-AL13SEB300-BN-OE

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Enterprise Grade

Capacity: 300GB

Speed: 10,000RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Average Seek Time: 3.7 / 4.1

Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps

On-Board Cache: 64MB

Toshiba AL13SEB300 AL13SE Series 300GB 6Gbps 10.5K 2.5" Enterprise SAS Hard Drive - Brand New

Toshiba AL13SEB300 AL13SE Series 300GB 6.0Gbps 10,500 RPM 2.5inch Small Form Factor Enterprise SAS Hard Drive - Brand New

The Toshiba AL13SE series of 2.5-inch 6 Gb/s SAS interface hard disk drives offer enterprise-class performance in capacities ranging from 900GB to 300GB.

The AL13SE is the first 10,000 RPM class model enterprise drive from Toshiba to achieve 900GB capacity and is also the first of Toshiba’s 10,000 RPM drives to employ a dualstage head positioning actuator that provides additional performance gains, including a 32% increase in sustained transfer rate.

Designed for even the most demanding mission-critical applications, the AL13SE series features an operating reliability rating of 2,000,000 power-on hours, a 25% increase over prior-generation drives. System compatibility is also assured through usage of the industry-standard 512 byte sector size.

In keeping with Toshiba’s leadership in power efficiency design, the AL13SE Series uses Supported Enhanced Power Condition State technology to lower RPM idle speed.

The AL13SE series drive is designed to support enterprise applications where reliability, high capacity, and performance are required. Specific applications include mid-range volume servers, mainstream storage arrays, blade and rackmount servers, and other mission-critical, power-conscious, dataintensive systems.


  • Up to 900GB of Storage Capacity
  • Enhanced Power Condition State Technology
  • 6 Gb/sec SAS
  • 64MB Cache Buffer


This drive is compatible with any server that accepts 2.5" x 15mm (SFF) SAS hard drives.

Model NumberAL13SEB300
Drive Capacity300GB
Drive InterfaceSAS 2.0
RoHS CompliantYes
Transfer Rate to Host6 Gb/sec
Track-to-track Seek0.2ms typ. (Read), 22ms typ. (Write)
Average Seek Time3.7ms typ. (Read), 4.1 ms typ. (Write)
Rotational Speed10,500 RPM
Average Latency2.8 ms
Buffer Size64MB
Power Requirements
Voltage5V (+/- 5%), 12V (+/- 5%)
Spin up (start) Power12V (=/-5%) @ 1.65A (peak) 3.0A (peak < 100us) 1.5V (+/-5%) @ 1.1A (peak)
Power Idle (Ready)4.0 watts (max.)
Physical Size
Dimensions (W) x (D) x (H)69.85 mm (2.75”) x 100.45 mm (3.95”) x 15 mm (0.59”)
Weight220 g, or less
- Operating
- Non-Operating

5° to 55°C (41° to 131°F)
-40° to 70°C (-40° to 158°F)
- Operating
- Non-Operating

5% to 95% RH
5% to 95% RH
- Operating
- Non-Operating

(0.6mm) 5 to 20 Hz / 9.8 m/s² (1.0G) 20 to 300 Hz
(3.1mm) 5 to 20 Hz / 49 m/s² (5.0G) 20 to 300 Hz
- Operating
- Non-Operating

980 m/s2 (100G) 1ms
3,920 m/s2 (400G) 1ms
- Operating
- Non-Operating

-1,000 to 10,000 ft
-1,000 to 40,000 ft
Acoustics (Ready)30dB
Mean Time Between Failures (MTBF)2,000,000 hours
Component Life5 years POH
