Toshiba Part #/MPN: AL13SEB600
DiscTech Item #: TOS-AL13SEB600-NP-OE
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 600GB
Speed: 10,000RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Average Seek Time: 3.7 / 4.1
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
On-Board Cache: 64MB

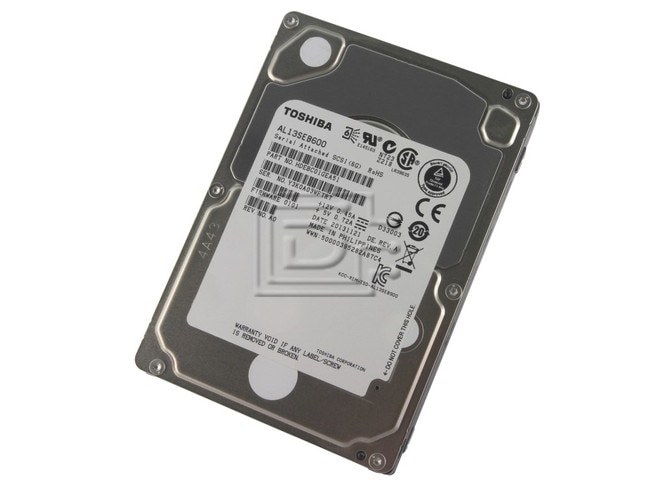

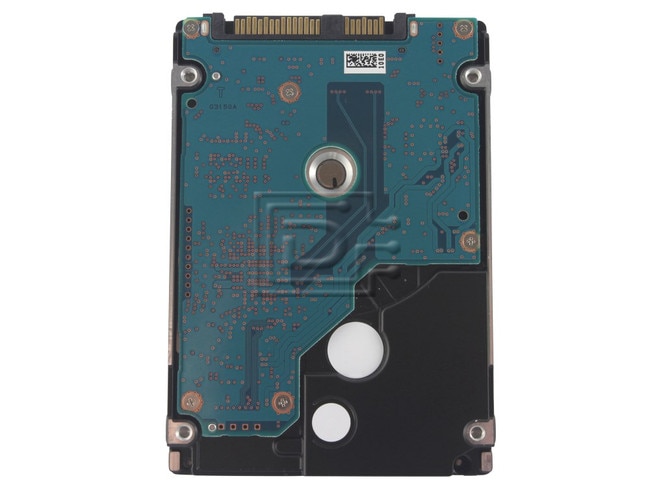

Toshiba AL13SEB600 AL13SE Series 600GB 6Gbps 10.5K 2.5" SFF Enterprise SAS Hard Drive - New Pull
Toshiba AL13SEB600 AL13SE Series 600GB 6.0Gbps 10,500 RPM 2.5inch Small Form Factor Enterprise SAS Hard Drive - New Pull
The Toshiba AL13SE series of 2.5-inch 6 Gb/s SAS interface hard disk drives offer enterprise-class performance in capacities ranging from 900GB to 300GB.
The AL13SE is the first 10,000 RPM class model enterprise drive from Toshiba to achieve 900GB capacity and is also the first of Toshiba’s 10,000 RPM drives to employ a dual stage head positioning actuator that provides additional performance gains, including a 32% increase in sustained transfer rate.
Designed for even the most demanding mission-critical applications, the AL13SE series features an operating reliability rating of 2,000,000 power-on hours, a 25% increase over prior-generation drives. System compatibility is also assured through usage of the industry-standard 512 byte sector size.
In keeping with Toshiba’s leadership in power efficiency design, the AL13SE Series uses Supported Enhanced Power Condition State technology to lower RPM idle speed.
The AL13SE series drive is designed to support enterprise applications where reliability, high capacity, and performance are required. Specific applications include mid-range volume servers, mainstream storage arrays, blade and rackmount servers, and other mission-critical, power-conscious, data intensive systems.
Highlights
- Up to 900GB of Storage Capacity
- Enhanced Power Condition State Technology
- 6 Gb/sec SAS
- 64MB Cache Buffer
Compatibility:
This drive is compatible with any server that accepts 2.5" x 15mm (SFF) SAS hard drives.
| Specifications | |
|---|---|
| Model Number | AL13SEB600 |
| Drive Capacity | 600GB |
| Drive Interface | SAS 2.0 |
| RoHS Compliant | Yes |
| Transfer Rate to Host | 6 Gb/sec |
| Performance | |
| Track-to-track Seek | 0.2ms typ. (Read), 22ms typ. (Write) |
| Average Seek Time | 3.7ms typ. (Read), 4.1 ms typ. (Write) |
| Rotational Speed | 10,500 RPM |
| Average Latency | 2.8 ms |
| Buffer Size | 64MB |
| Power Requirements | |
| Voltage | 5V (+/- 5%), 12V (+/- 5%) |
| Spin up (start) Power | 12V (=/-5%) @ 1.65A (peak) 3.0A (peak < 100us) 1.5V (+/-5%) @ 1.1A (peak) |
| Power Idle (Ready) | 4.0 watts (max.) |
| Physical Size | |
| Dimensions (W) x (D) x (H) | 69.85 mm (2.75”) x 100.45 mm (3.95”) x 15 mm (0.59”) |
| Weight | 220 g, or less |
| Environmental | |
| Temp - Operating - Non-Operating | 5° to 55°C (41° to 131°F) -40° to 70°C (-40° to 158°F) |
| Humidity - Operating - Non-Operating | 5% to 95% RH 5% to 95% RH |
| Vibration - Operating - Non-Operating | (0.6mm) 5 to 20 Hz / 9.8 m/s² (1.0G) 20 to 300 Hz (3.1mm) 5 to 20 Hz / 49 m/s² (5.0G) 20 to 300 Hz |
| Shock - Operating - Non-Operating | 980 m/s2 (100G) 1ms 3,920 m/s2 (400G) 1ms |
| Altitude - Operating - Non-Operating | -1,000 to 10,000 ft -1,000 to 40,000 ft |
| Acoustics | |
| Acoustics (Ready) | 30dB |
| Reliability | |
| Mean Time Between Failures (MTBF) | 2,000,000 hours |
| Component Life | 5 years POH |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1 lb
Warranty: 1 Year DiscTech
New Pull
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
