Toshiba Part #/MPN: DT01ACA100
DiscTech Item #: TOS-DT01ACA100-RF-OE
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Capacity: 1TB
Speed: 7,200RPM
Interface Types: SATA
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Average Seek Time: 4.17
Electrical Interface: SATA 600 - 6.0Gbps
On-Board Cache: 32MB

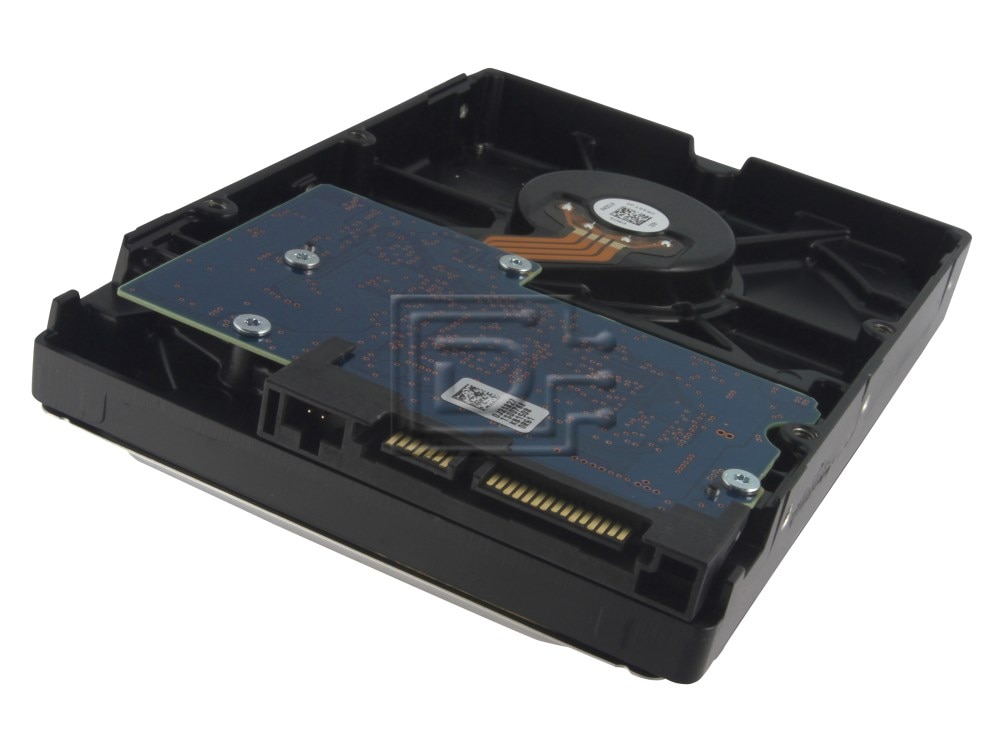

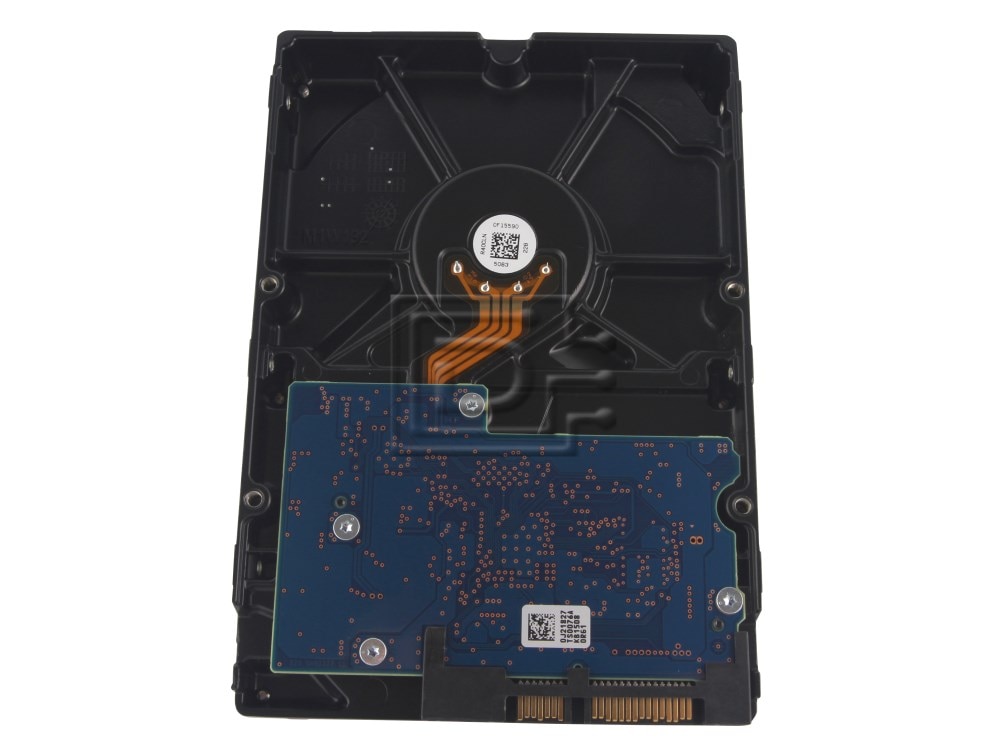

Toshiba DT01ACA100 1TB 6Gbps 7.2K SATA Hard Drive - Refurbished
Toshiba DT01ACA100 1TB 6Gbps 7.2K SATA Hard Drive - Refurbished
The DT01ACA series is Toshiba’s first 3.5-inch hard drive for use in power-friendly consumer and commercial desktop computers. The 7,200 RPM drive series is engineered for high performance and low power for cooler operation.
The DT01ACA Desktop HDDs feature 1 terabyte-per-platter technology in capacities ranging from 500GB to 3TB (1, 2 or 3 platters). With 64MB cache buffer (2TB, and 3TB models) the DT01ACA drives are designed for faster data processing.
The 3.5-inch DT01ACA drives include Advanced Sector Format technology, which utilizes the industry standard 4K byte-per-sector configuration and improved error-correcting code functionality to enhance data integrity while making more efficient use of the storage surface area.
Compatibility:
This drive is compatible with any server that accepts 3.5"x1" (LFF) SATA drives.
| Specifications | |
|---|---|
| Model Number | DT01ACA100 |
| Drive Capacity | 1TB |
| Drive Interface | Serial ATA 3.0 / ATA-8 |
| Transfer Rate to Host | 6 Gb/sec |
| Number of user data cylinders | 16,383 |
| Bytes per sector (HOST) | 512 byte |
| Bytes per sector(DISK) | 4,096 byte |
| Logical blocks (LBA) | 1,953,525,168 |
| Performance | |
| Rotational Speed | 7,200 RPM |
| Average Latency | 4.17ms |
| Buffer Size | 32MB |
| Single track seek time (read) | 0.6 ms |
| Single track seek time (write) | 0.8 ms |
| Power Requirements | |
| Voltage | 5V (+/- 5%), +12VDC ± 10% |
| Read/Write Power | 6.4 watts |
| Active Idle Power | 3.7 watts |
| Standby Power | 1.0 watts |
| Sleep Power | 1.0 watts |
| Physical Size | |
| Dimensions (W) x (D) x (H) | 101.6 mm x 147 mm x 26.1 mm |
| Weight | 450 g |
| Environmental | |
| Temp - Operating | 0° to 60°C |
| Temp - Non-Operating | -40° to -70°C |
| Vibration - Operating | 6.57 m/s² (0.67G) RMS 5 to 500 |
| Vibration - Non-Operating | 10.2 m/s² (1.04G) RMS 2 to 200 Hz |
| Shock - Operating | 686 m/s² (70G) 2ms Half Sine |
| Shock - Non-Operating | 3430 m/s² (350G) 2ms Half Sine |
| Acoustics | |
| Acoustics (idle) | 25 dB |
| Acoustics (seek) | 26 dB |
| Reliability | |
| Load/Unload | 300,000 tim |
| Error rate non-recoverable | 1/10^14 bit read |
Click here to view the manufacturer's item description/brochure
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Refurbished
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
