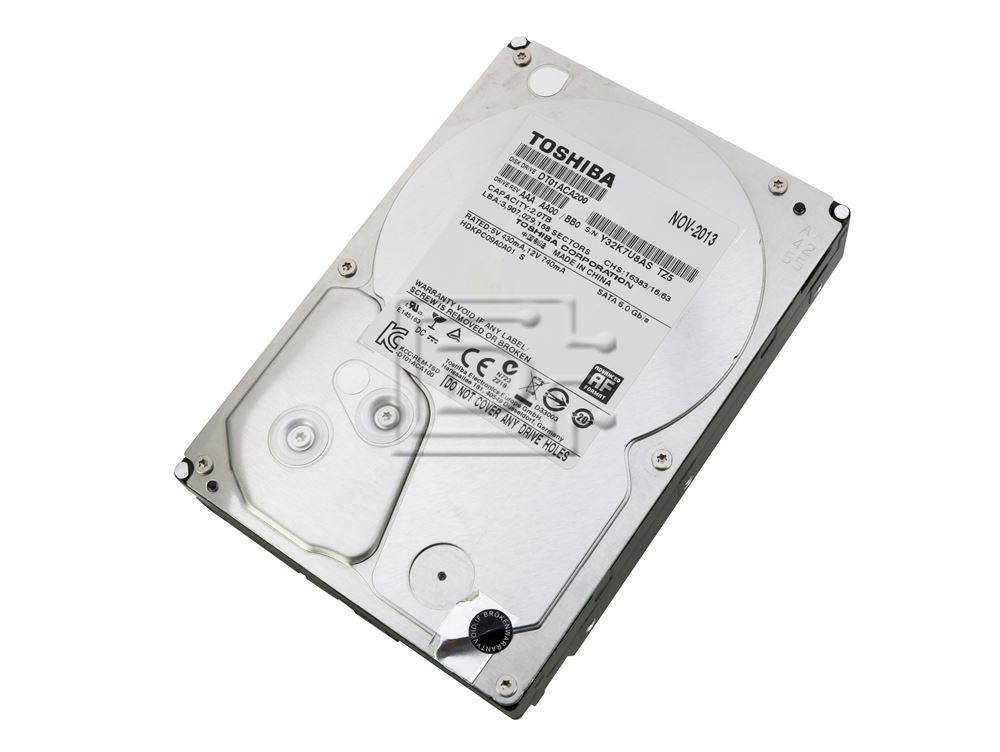

Toshiba DT01ACA200 2TB SATA Hard Drive

Toshiba DT01ACA200 SATA Hard Drive Image 1 image
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

  • 1 Year DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$89.00

Capacity:2TB
Speed:7.2K RPM
Interface Types:SATA
Form Factor:3.5" LFF Hard Drive
Electrical Interface:SATA 600 - 6Gbps
RAM:64MB

Description

Toshiba DT01ACA200 2TB / 2000GB 6.0Gbps 7,200 RPM 3.5in Large Form Factor SATA Hard Drive - Brand New

The DT01ACA series is Toshiba’s first 3.5-inch hard drive for use in power-friendly consumer and commercial desktop computers. The 7,200 RPM drive series is engineered for high performance and low power for cooler operation.

The DT01ACA Desktop HDDs feature 1 terabyte-per platter technology in capacities ranging from 500GB to 3TB1 (1, 2 or 3 platters). With 64MB cache buffer (2TB, and 3TB models) the DT01ACA drives are designed for faster data processing.

The 3.5-inch DT01ACA drives include Advanced Sector Format technology, which utilizes the industry standard 4K byte-per-sector configuration and improved error-correcting code functionality to enhance data integrity while making more efficient use of the storage surface area.

Highlights

  • Up to 3TB of Storage Capacity
  • 7,200 RPM Rotational Speed
  • Low Power
  • Advanced Format 512e

Compatibility:

This drive is compatible with any server that accepts 3.5"x1" (LFF) SATA drives.

Specifications

Series Overview
Model NumberDT01ACA200
Drive Capacity2TB
Drive InterfaceSerial ATA 3.0 / ATA-8
Transfer Rate to Host6 Gb/sec
Number of user data cylinders16,383
Bytes per sector (HOST)512 byte
Bytes per sector(DISK)4,096 byte
Logical blocks (LBA)3,907,029,168
Performance
Rotational Speed7,200 RPM
Average Latency4.17ms
Buffer Size64MB
Single track seek time (read)0.5 ms
Single track seek time (write)0.6 ms
Power Requirements
Voltage5V (+/- 5%), +12VDC ± 10%
Read/Write Power6.4 watts
Active Idle Power5.2 watts
Standby Power1.0 watts
Sleep Power1.0 watts
Physical Size
Dimensions (W) x (D) x (H)101.6 mm x 147 mm x 26.1 mm
Weight680 g
Environmental
Temp
- Operating
- Non-Operating
- 0° to 60°C
- -40° to -70°C
Vibration
- Operating
- Non-Operating
- 6.57 m/s² (0.67G) RMS 5 to 500 Hz
- 10.2 m/s² (1.04G) RMS 2 to 200 Hz
Shock
- Operating
- Non-Operating
- 686 m/s² (70G) 2ms Half Sine
- 2940 m/s² (300G) 2ms Half Sine
Acoustics
Acoustics (idle)27 dB
Acoustics (seek)28 dB
Reliability
Load/Unload300,000 times
Error rate non-recoverable1/10^14 bit read
Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 1.8 lb

Warranty: 1 Year DiscTech

Condition

Brand New

Warranty

1 Year DiscTech Warranty
