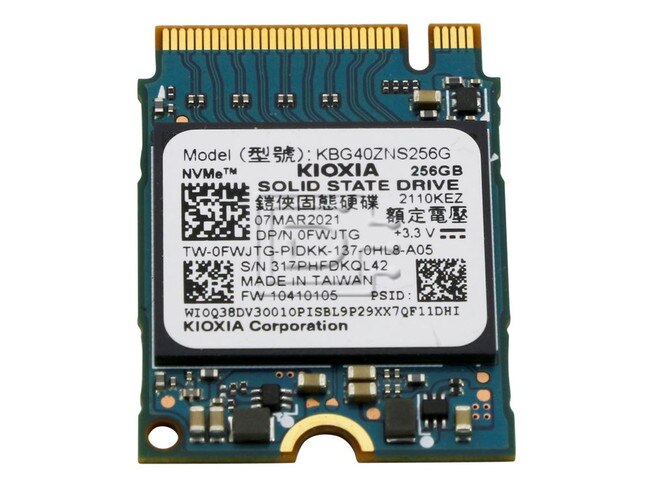

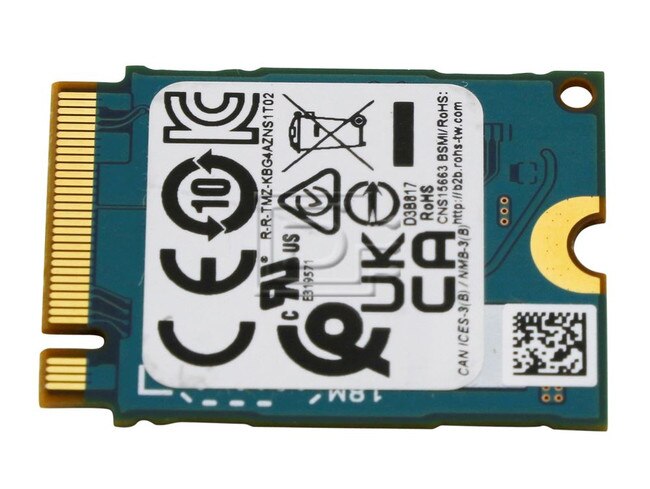

Toshiba / Kioxia BG4 Series KBG40ZNS256G / FWJTG 256GB M.2 2230 PCI-e Gen3 x4 NVMe Solid State Drive
- Brand NewCondition Levels Explained
The product is brand new.
- Special Order - Call for Lead TimeSpecial Order - Call for Lead Time
This item has a variable lead time for fulfilment. Please call us to discuss. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 256GB |
| Speed: | Solid State |
| Interface Types: | NVMe M.2 |
| Form Factor: | M.2 x 30mm |
| SSD Endurance DWPD: | Consumer / Value |
| Electrical Interface: | PCIe 3.0 16GBps |
Description
Toshiba / Kioxia BG4 Series KBG40ZNS256G / FWJTG 256GB M.2 2230 PCI-e Gen3 x4 NVMe Solid State Drive - Brand New OEM
Toshiba / Kioxia BG4 Series KBG40ZNS256G / FWJTG 256GB M.2 2230 PCI-e Gen3 x4 NVMe Solid State Drive - Brand New OEM
Toshiba / Kioxia Client SSDs
Leveraging state-of-the-art BiCS FLASH™ 3D flash memory with in-house designed controllers and firmware, TOSHIBA / KIOXIA client SSDs come in a variety of form factors, including a compact and lightweight “single-package SSD.”
They also offer a variety of capacities, performance and security options, and are well-suited for mobile computing, desktop PCs and workstations.
In a compact, single-package form factor and based on 96-layer BiCS FLASH™ 3D flash memory, the BG4 Series is designed for thin and light performance-oriented use cases, such as ultra-mobile PCs, IoT devices and data center server boot. Available in capacities up to 1 TB, this series features Host Memory Buffer (HMB), PCIe® Gen3 x4 interface and supports the NVMe™ command set.
DPN: FWJTG / 0FWJTG
Compatibility
This drive is Backward compatible with PCIe Gen3 x2, PCIe Gen3 x1, PCIe Gen2 x2 ande PCIe Gen2 x1
Form Factor: M.2 2230 (30mm length)
Specifications
| Toshiba / Kioxia M.2 2230 256GB NVMe SSD | |
|---|---|
| Model Number | KBG40ZNS256G |
| Main Specification | |
| Interface | PCIe Gen3 8 Gb/s, up to 4 lanes |
| Form Factor | M.2 2230 |
| Capacity | 256GB |
| Performance | |
| Sequential Read MB/s up to (Q=32, T=1) | 2200 |
| Sequential Write MB/s up to (Q=32, T=1) | 1400 |
| Physical Dimensions | |
| Length | 30.15 mm |
| Width | 22.15 mm |
| Height | 2.23mm |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: FWJTG 0FWJTG
Weight: 0.5 lb
Warranty: 1 Year DiscTech
Condition
Brand New
Warranty
1 Year DiscTech Warranty
