Toshiba Part #/MPN: MC04ACA400E
DiscTech Item #: TOS-MC04ACA400E-RF-OE
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:1Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Capacity: 4TB
Speed: 7,200RPM
Interface Types: SATA
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 140
Average Seek Time: 4.17
Electrical Interface: SATA 600 - 6.0Gbps
On-Board Cache: 128MB

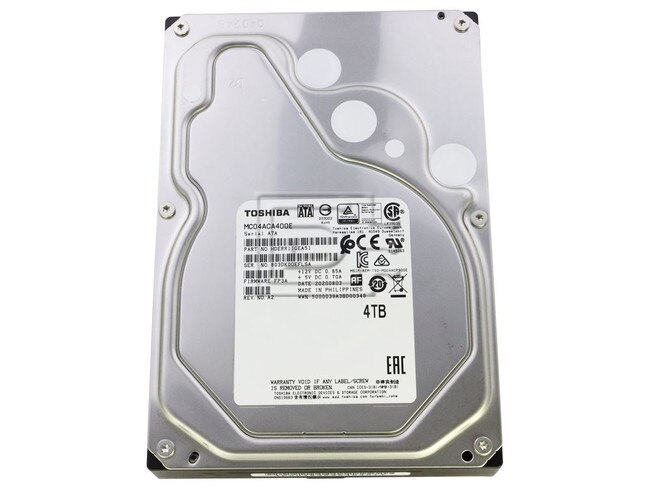

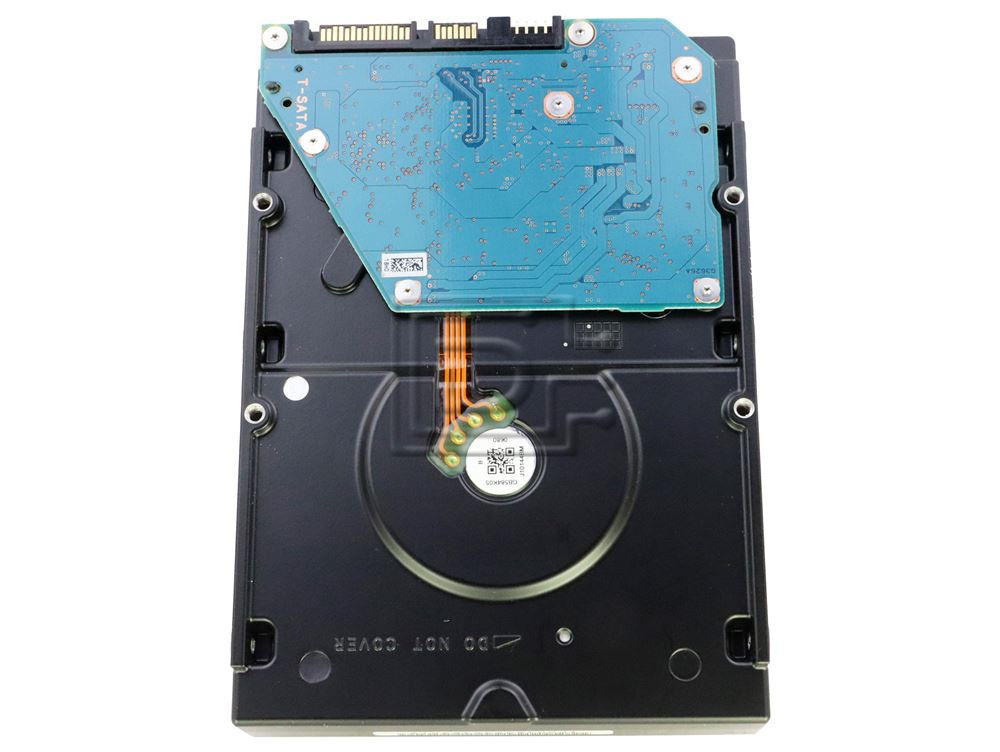

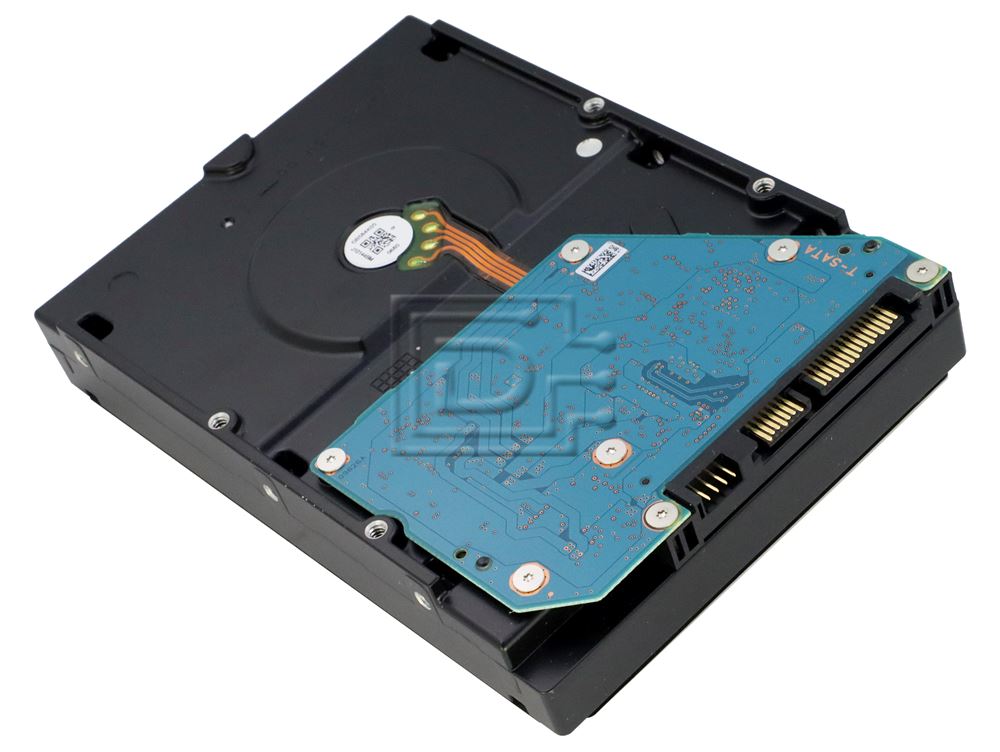

Toshiba MC04ACA400E 4TB / 4000GB 6.0Gbps 7,200 RPM 512e Enterprise SATA Hard Drive - Refurbished
The MC Series hard disk drive (HDD) models provide enterprise-class feature and capacities optimized for scale-out servers and storage workloads. Providing a balance between high-capacity and performance, the Toshiba MC series is ideal for moderate-workload data centers, and for scale -out storage and replicated data environments
- Affordable High Capacity storage for moderate workload use cases
- High capacity per spindle for improved storage density and reduced cost of ownership
- 7200rpm performance
- Vibration Compensation technology
- 180TB per year workload rating
- SATA 6Gbs interface performance
Compatibility:
This drive is compatible with any server that accepts 3.5in x 1.0in (LFF) SATA drives.
Enterprise Cloud HDD | |
---|---|
Model Number | MC04ACA400E |
Basic Specifications | |
Interface | SATA-2.6 / 3.0 |
Interface Speed | 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s |
Formatted Capacity | 4TB / 4000GB |
Logical Data Block Length (HOST) | 512 B |
Logical Data Block Length (DISK) | 4,096 B |
Environmental Compliance | RoHS Compatible |
Performances | |
Buffer Size | 128 MiB |
Rotation Speed | 7,200 rpm ±0.1 % |
Average Latency Time | 4.17 ms |
Data Transfer Speed (Sustained) | 170 MiB/s |
Reliability | |
Unrecoverable Error Rate | 10 per 10e15 bits read |
MTTF | 800,000 hours |
24 x 7 Operation | Yes |
Workloads | 180 TB/y |
Power Requirements | |
Supply Voltage | 5 V ±5 % , 12 V ±5 % |
Power Consumption (Read / Write) | 11.3 W |
Power Consumption (Idle-B) | 6.0 W Typ |
Dimensions | |
Height | 26.1 mm Max |
Width | 101.6 mm ± 0.25 mm |
Lenth | 147 mm Max |
Weight | 720 g Max |
Environmental Requirements | |
Temperature (Operating) | 5 to 55 °C |
Temperature (Non-operating) | -40 to 70°C |
Humidity (Operating) | 5 to 90 % R.H. |
Humidity (Non-operating) | 5 to 95 % R.H. |
Altitude (Operating) | -305 to +3,048 m |
Altitude (Non-operating) | -305 to +12,192 m |
Vibration (Operating) | |
Vibration (Non-operating) | 49 m/s2 { 5.0 G } ( 5 to 500 Hz ) |
Shock (Operating) | 686 m/s2 { 70 G } ( 2 ms duration ) |
Shock (Non-operating) | 2,940 m/s2 { 300 G } ( 2 ms duration ) |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Refurbished
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
