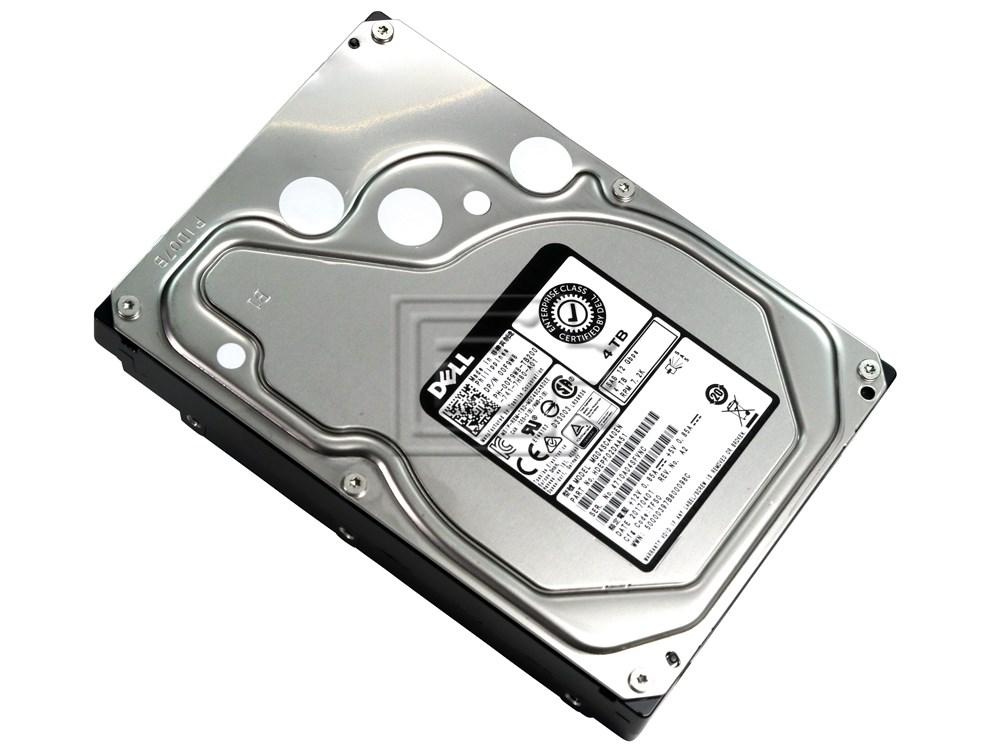

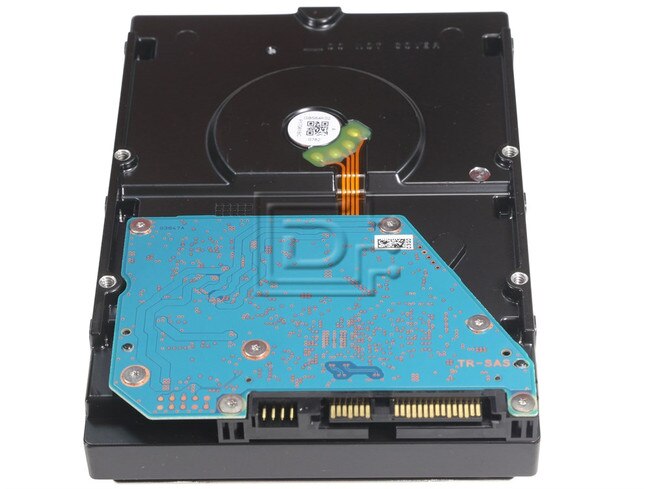

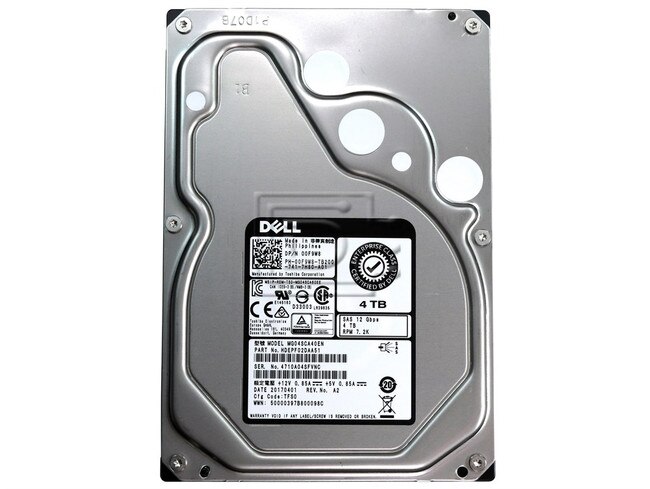

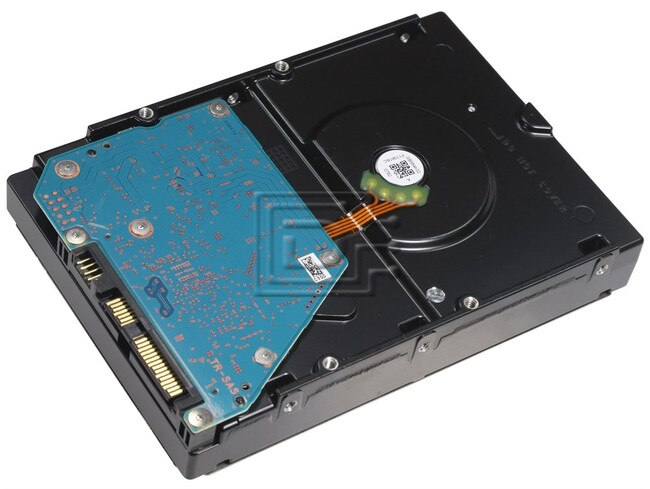

Toshiba MG04SCA60EN 4TB SAS Hard Drive
- Brand NewCondition Levels Explained
The product is brand new.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 4TB |
| Speed: | 7.2K RPM |
| Interface Types: | SAS |
| Form Factor: | 3.5" LFF Hard Drive |
| Electrical Interface: | SAS-3 12Gbps |
| RAM: | 128MB |
Description
Toshiba MG04SCA40EN 4TB / 4000GB 12Gbps 7200 RPM 512E Enterprise SAS / Serial Attached SCSI Hard Disk Drive - Brand New OEM
Alt. PN: HDEPF10DAA51
Dell Model Number: 0F9W8, 00F9W8,
The up to 4TB Enterprise Capacity HDD models (MG04SCAxxEx) come in a robust design with 3.5-inch form factor and performance of 7,200 rpm.
Features of MG04SCAxxEx include 12 Gbit/s SAS interface, Toshiba persistent write cache technology, industry-standard 4K native (4Kn) and 512e Advanced Format sector technologies for optimum performance in the latest generation of servers and storage systems. While 4Kn models (MG04SCAxxEA) offer optimum performance and compatibility with 4K applications, the support for legacy applications and operating environments that require 512B sector lengths is provided by 512e models (MG04SCAxxEE).
Model options supporting Sanitize Instant Erase (SIE) are also available. This feature may help to protect data from unintended disclosure in the event that drives are re-purposed or moved outside of data center environments.
Key Features
- Industry Standard 3.5-inch 26.1 mm Height Form-Factor
- Large Capacity (6 / 5 / 4 / 2 TB Models)
- 7,200rpm Performance
- Dual-Port 12.0 Gbit/s SAS Interface
- 550 total TB Transferred per Year Workload Rating
- 4Kn or 512e Advanced Format Sector Technology
- Introducing Toshiba Persistent Write Cache Technology for Data-Loss Protection in Sudden Power-Loss Events Sanitize Instant Erase (SIE) Option Available
Applications
- Engineered for Mid-line / Nearline Business Critical Workloads
- Tier 2 Business-Critical Servers and Storage Systems
- Servers Supporting Application Workloads that Benefit from High Capacity per Spindle
- Capacity-Optimized Data Center Storage Systems
Compatibility:
This drive is compatible with any server that accepts 3.5in x 1.0in (LFF) SAS drives.
Specifications
| Toshiba Enterprise HDD | |
|---|---|
| Standard Model Numbers | MG04SCA40EN |
| Alt Model Numbers | HDEPF02DAA51 |
| Dell Model Numbers | 0F9W8 , 00F9W8 |
| Basic Specifications | |
| Interface | SAS-3.0 |
| Interface Speed | 12Gbps |
| Formatted Capacity | 4TB / 4000GB |
| Logical Data Block Length (HOST) | 512 / 520 / 528 B (Emulation) |
| Logical Data Block Length (DISK) | 4,096 / 4,160 / 4,224 B |
| Environmental Compliance | RoHS Compatible |
| Performance | |
| Buffer Size | 128 MB |
| Rotational Speed | 7,200 rpm ±0.1 % |
| Average Latency Time | 4.17 ms |
| Data Transfer Speed (Sustained) | 205 MiB/s |
| Reliability | |
| Unrecoverable Error Rate | 10 per 10e16 bits read |
| MTTF | 1,400,000 hours |
| 24 x 7 Operation | Yes |
| Workloads | 550 TB/y |
| Power Requirements | |
| Supply Voltage | 5 V ±5% 12 V ±5% |
| Power Consumption (Read / Write) | 11.8 W |
| Power Consumption (Idle-B) | 6.1 W Typ |
| Dimensions & Weight | |
| Height | 26.1 mm Max |
| Width | 101.6 mm ±0.25 mm |
| Length | 147 mm Max |
| Weight | 770 g Max |
| Environmental Requirements | |
| Temperature (Operating) | 5 to 55°C |
| Temperature (Non-operating) | -40 to 70°C |
| Humidity (Operating) | 5 to 90 % R.H. |
| Humidity ( Non-operating ) | 5 to 95 % R.H. |
| Altitude ( Operating ) | -305 to 3,048 m { -1,000 to +10,000 feet } |
| Altitude ( Non-operating ) | -305 to 12,192 m { -1,000 to +40,000 feet } |
| Vibration ( Operating ) | 7.35 m/s { 0.75 G } ( 5 to 300 Hz ) |
| Vibration ( Non-operating ) | 49 m/s { 5 G } ( 5 to 500 Hz ) |
| Shock ( Operating ) | 686 m/s { 70 G } ( 2 ms duration ) |
| Shock ( Non-operating ) | 2,940 m/s { 300 G } ( 2 ms duration ) |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: HDEPF02DAA51 00F9W8 0F9W8
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Condition
Brand New
Warranty
1 Year DiscTech Warranty
