Toshiba MG04SCA40ENY / DELL 1MVTT 4TB SAS HDD ME4

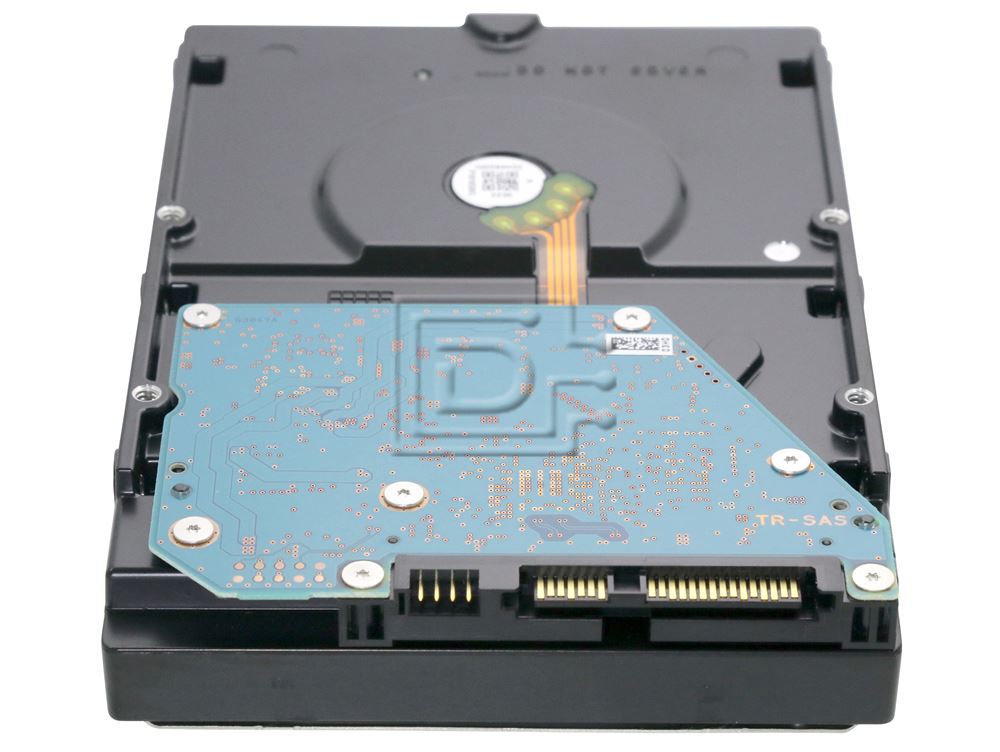

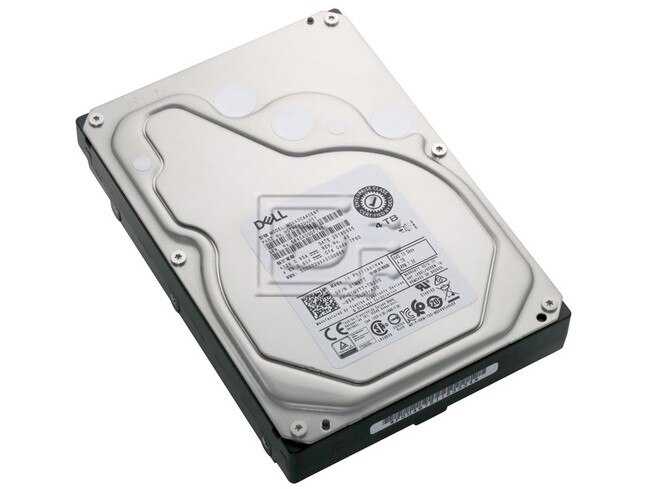

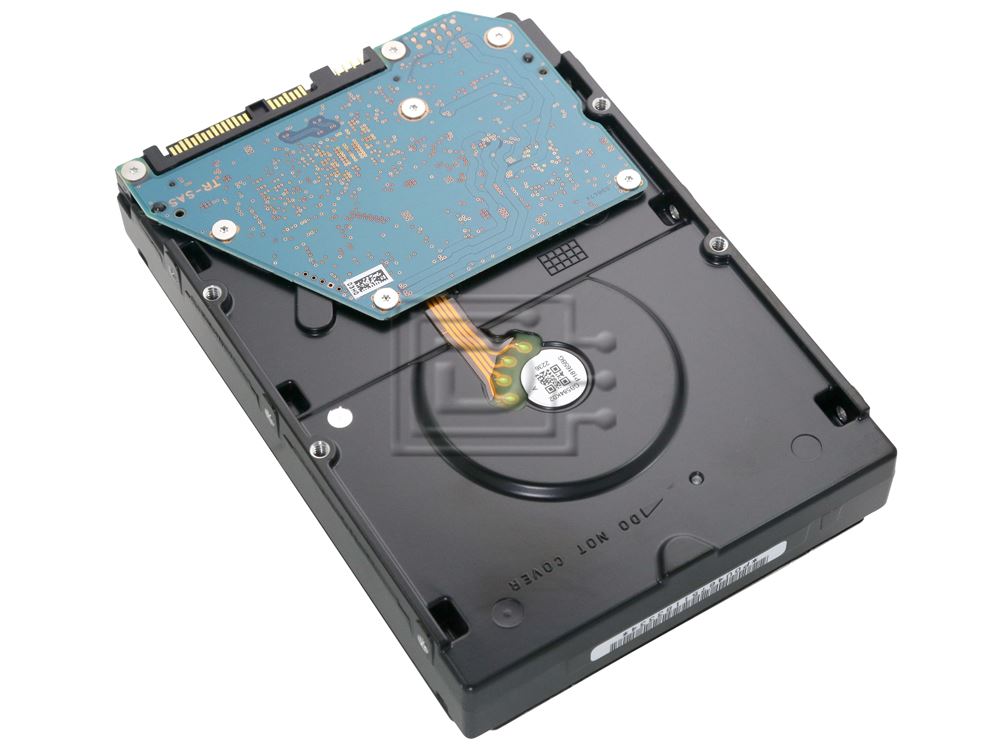

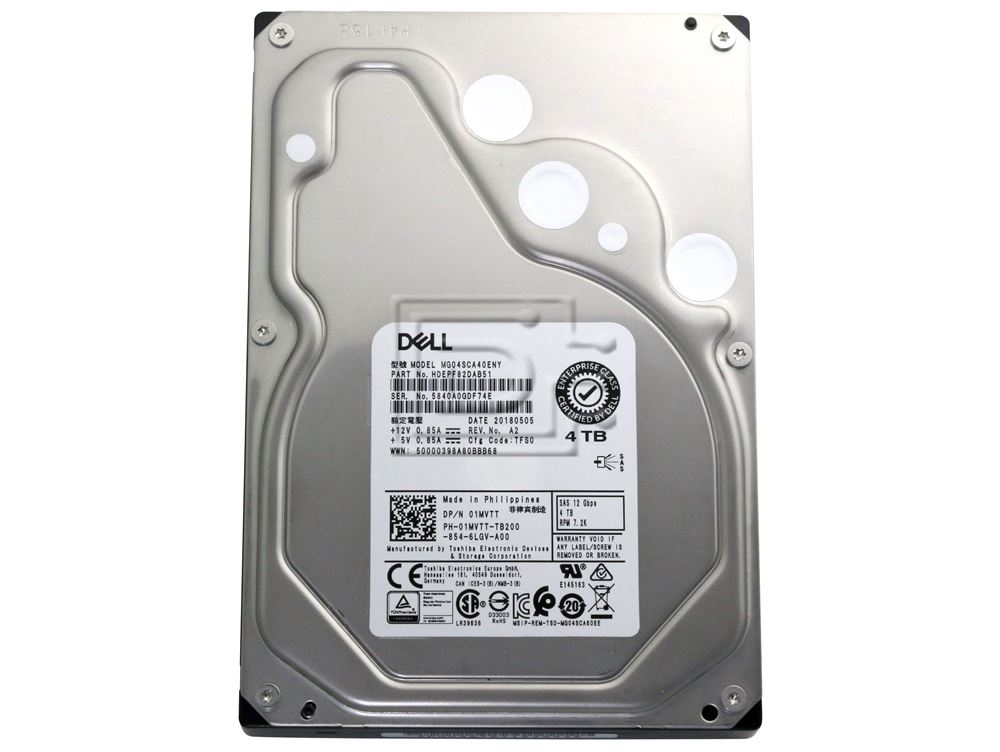

Toshiba MG04SCA40ENY HDEPF82DAB51 1MVTT 01MVTT Dell 4TB SAS Hard Drive ME4 Image 1 imageToshiba MG04SCA40ENY HDEPF82DAB51 1MVTT 01MVTT Dell 4TB SAS Hard Drive ME4 Image 2 imageToshiba MG04SCA40ENY HDEPF82DAB51 1MVTT 01MVTT Dell 4TB SAS Hard Drive ME4 Image 3 imageToshiba MG04SCA40ENY HDEPF82DAB51 1MVTT 01MVTT Dell 4TB SAS Hard Drive ME4 Image 4 image
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

  • 1 Year DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$199.00

Capacity:4TB
Speed:7.2K RPM
Interface Types:SAS
Form Factor:3.5" LFF Hard Drive
Electrical Interface:SAS-3 12Gbps
RAM:128MB

Description

Dell 1MVTT / Toshiba MG04SCA40ENY / HDEPF82DAB51 4TB 12Gbps 7.2K RPM 512n SIE Enterprise SAS HDD ME4 - Brand New OEM

Dell 1MVTT / Toshiba MG04SCA40ENY / HDEPF82DAB51 4TB 12Gbps 7.2K RPM 512n SIE Enterprise SAS HDD - Brand New OEM

Dell Model Number: 1MVTT, 01MVTT

The up to 4TB Enterprise Capacity HDD models (MG04SCAxxEx) come in a robust design with 3.5-inch form factor and performance of 7,200 rpm.
Features of MG04SCAxxEx include 12 Gbit/s SAS interface, Toshiba persistent write cache technology, industry-standard 4K native (4Kn) and 512e Advanced Format sector technologies for optimum performance in the latest generation of servers and storage systems. While 4Kn models (MG04SCAxxEA) offer optimum performance and compatibility with 4K applications, the support for legacy applications and operating environments that require 512B sector lengths is provided by 512e models (MG04SCAxxEE).
Model options supporting Sanitize Instant Erase (SIE) are also available. This feature may help to protect data from unintended disclosure in the event that drives are re-purposed or moved outside of data center environments.

Key Features

  • Industry Standard 3.5-inch 26.1 mm Height Form-Factor
  • Large Capacity (6 / 5 / 4 / 2 TB Models)
  • 7,200rpm Performance
  • Dual-Port 12.0 Gbit/s SAS Interface
  • 550 total TB Transferred per Year Workload Rating
  • 4Kn or 512e Advanced Format Sector Technology
  • Introducing Toshiba Persistent Write Cache Technology for Data-Loss Protection in Sudden Power-Loss Events
    • Sanitize Instant Erase (SIE) Option Available

Applications

  • Engineered for Mid-line / Nearline Business Critical Workloads
  • Tier 2 Business-Critical Servers and Storage Systems
  • Servers Supporting Application Workloads that Benefit from High Capacity per Spindle
  • Capacity-Optimized Data Center Storage Systems

Compatibility

This drive is designed to work in the Dell ME4 series arrays. This includes the ME4012, ME4024, ME4084, ME412, ME424, ME484. It will also work in the Dell PowerEdge and PowerVault systems.

Specifications

Toshiba Enterprise HDD
Standard Model NumbersMG04SCA40ENY
Alt Model NumbersHDEPF82DAB51
Dell Model Numbers1MVTT , 01MVTT
Basic Specifications
InterfaceSAS-3.0
Interface Speed12Gbps
Formatted Capacity4TB / 4000GB
Logical Data Block Length (HOST)512N
Logical Data Block Length (DISK)512 / 520 / 528
Environmental ComplianceRoHS Compatible
Performance
Buffer Size128 MB
Rotational Speed7,200 rpm ±0.1 %
Average Latency Time4.17 ms
Data Transfer Speed (Sustained)205 MiB/s
Reliability
Unrecoverable Error Rate10 per 10e16 bits read
MTTF1,400,000 hours
24 x 7 OperationYes
Workloads550 TB/y
Power Requirements
Supply Voltage5 V ±5%
12 V ±5%
Power Consumption (Read / Write)11.8 W
Power Consumption (Idle-B)6.1 W Typ
Dimensions & Weight
Height26.1 mm Max
Width101.6 mm ±0.25 mm
Length147 mm Max
Weight770 g Max
Environmental Requirements
Temperature (Operating)5 to 55°C
Temperature (Non-operating)-40 to 70°C
Humidity (Operating)5 to 90 % R.H.
Humidity ( Non-operating )5 to 95 % R.H.
Altitude ( Operating )-305 to 3,048 m { -1,000 to +10,000 feet }
Altitude ( Non-operating )-305 to 12,192 m { -1,000 to +40,000 feet }
Vibration ( Operating )7.35 m/s { 0.75 G } ( 5 to 300 Hz )
Vibration ( Non-operating )49 m/s { 5 G } ( 5 to 500 Hz )
Shock ( Operating )686 m/s { 70 G } ( 2 ms duration )
Shock ( Non-operating )2,940 m/s { 300 G } ( 2 ms duration )
Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: HDEPF82DAB51 1MVTT 01MVTT

Weight: 1.8 lb

Warranty: 1 Year DiscTech

Condition

Brand New

Warranty

1 Year DiscTech Warranty
