Toshiba Part #/MPN: MG04SCA60EA
DiscTech Item #: TOS-MG04SCA60EA-NP-OE
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:7Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Capacity: 6TB
Speed: 7,200RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 4Kn
Sustained Throughput: 215
Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps
On-Board Cache: 128MB

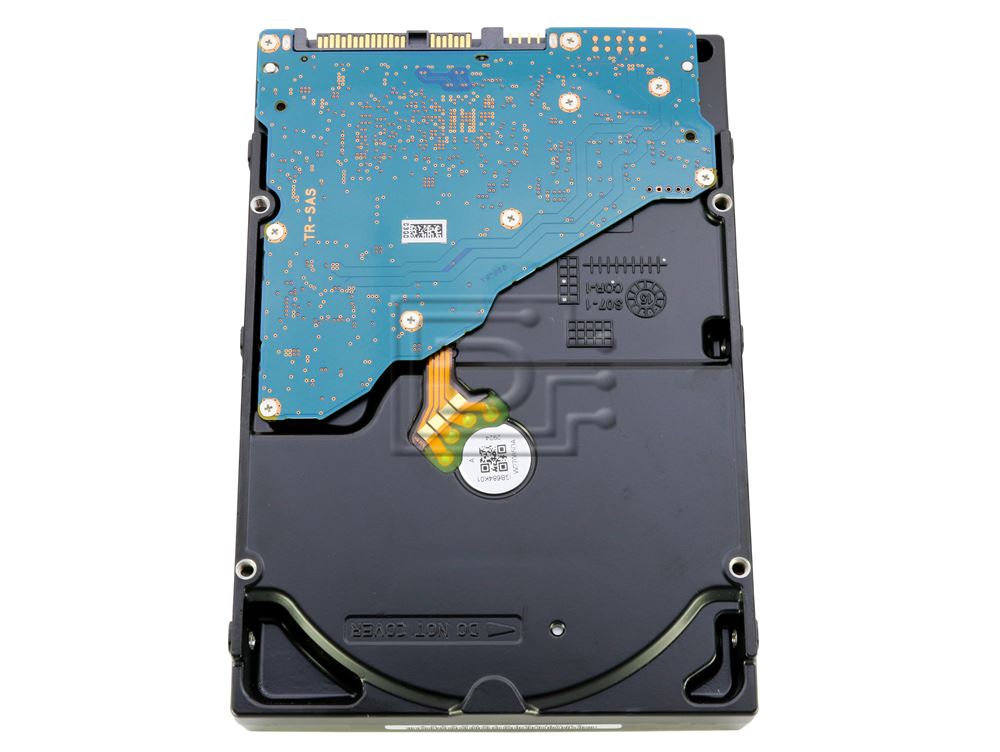

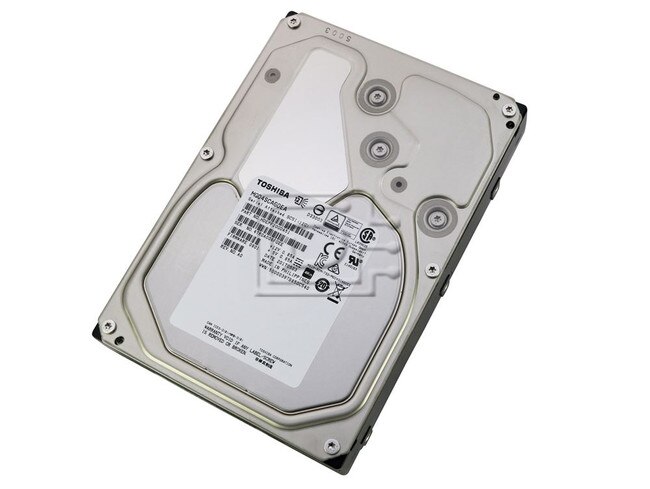

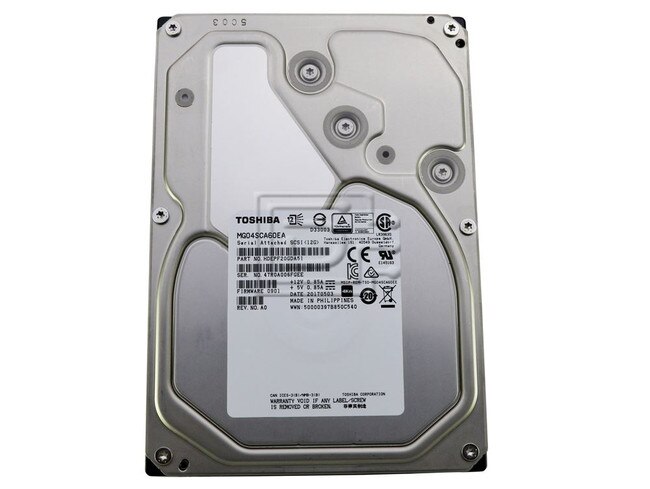

Toshiba MG04SCA60EA 6TB 3.5-inch 12Gbps 7.2K RPM 4Kn Enterprise SAS Hard Drive - New Pull
Toshiba MG04SCA60EA 6TB / 6000GB 3.5" 12.0 Gb/s 7200 RPM 4K Native Enterprise SAS / Serial Attached SCSI HDD / Hard Disk Drive - New Pull
Enterprise Capacity HDD
The up to 6TB Enterprise Capacity HDD models (MG04SCAxxEx) come in a robust design with 3.5-inch form factor and performance of 7,200 rpm.
Features of MG04SCAxxEx include 12 Gbit/s SAS interface, Toshiba persistent write cache technology, industry-standard 4K native (4Kn) and 512e Advanced Format sector technologies for optimum performance in the latest generation of servers and storage systems.
While 4Kn models (MG04SCAxxEA) offer optimum performance and compatibility with 4K applications, the support for legacy applications and operating environments that require 512B sector lengths is provided by 512e models (MG04SCAxxEE).
Model options supporting Sanitize Instant Erase (SIE) are also available. This feature may help to protect data from unintended disclosure in the event that drives are re-purposed or moved outside of data center environments.
Key Features
- Industry Standard 3.5-inch 26.1 mm Height Form-Factor
- Large Capacity (6 / 5 / 4 / 2 TB Models)
- 7,200 rpm Performance
- Dual-Port 12.0 Gbit/s SAS Interface
- 550 total TB Transferred per Year Workload Rating
- 4Kn or 512e Advanced Format Sector Technology
- Introducing Toshiba Persistent Write Cache Technology for Data-Loss Protection in Sudden Power-Loss Events
- Sanitize Instant Erase (SIE) Option Available
Applications
- Engineered for Mid-line / Nearline Business Critical Workloads
- Tier 2 Business-Critical Servers and Storage Systems
- Servers Supporting Application Workloads that Benefit from High Capacity per Spindle
- Capacity-Optimized Data Center Storage Systems
Compatibility:
This drive is compatible with any server that accepts 3.5inx1.0in SAS Drive.
Toshiba Enterprise Capacity HDD | |
---|---|
Model Number | MG04SCA60EA |
Form Factor | 3.5-inch |
Interface | 12 Gbit/s SAS |
Formatted Capacity | 6 TB |
Buffer Size | 128 MiB |
Rotation Speed | 7,200 rpm |
Data Transfer Speed ( Sustained ) | 205 MiB/s |
MTTF | 1,400,000 hours |
Power Consumption ( Idle - B ) | 6.1 W Typ. |
Weight | 720 g Max. |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1.7 lb
Warranty: 1 Year DiscTech
New Pull
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
