Toshiba MG06ACA Series MG06ACA800E 8TB 512e SATA Hard Drive

  • Toshiba MG06ACA800E SATA Hard Drives image 1
  • Toshiba MG06ACA800E SATA Hard Drives image 2
  • Toshiba MG06ACA800E SATA Hard Drives image 3

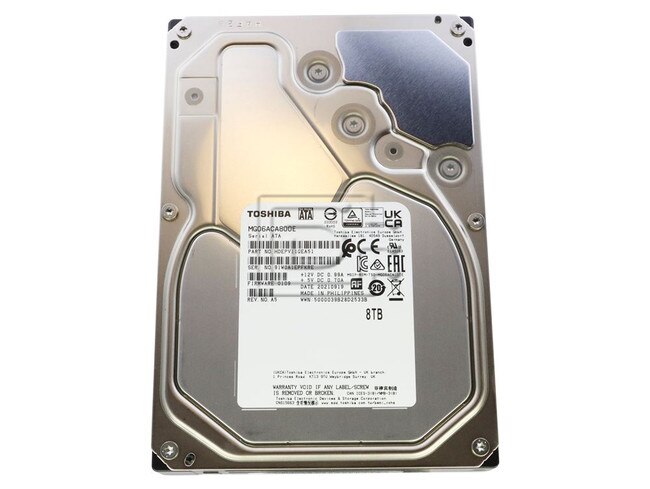

Toshiba MG06ACA800E SATA Hard Drives image 1

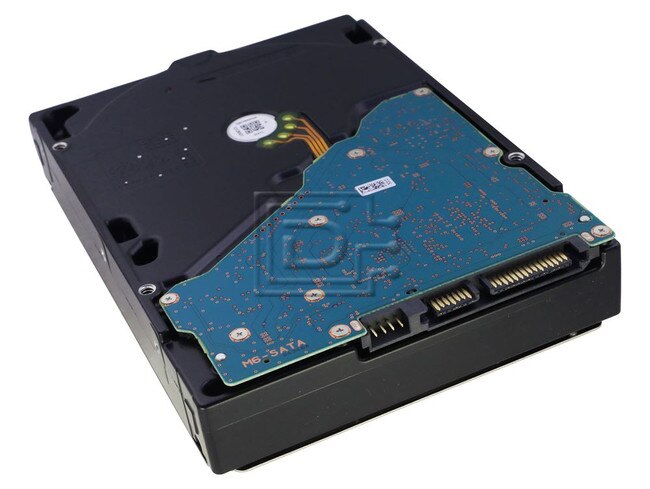

Toshiba MG06ACA800E SATA Hard Drives image 2

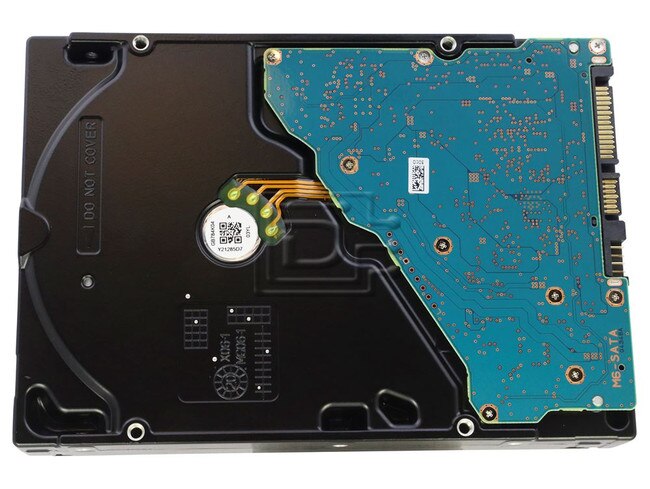

Toshiba MG06ACA800E SATA Hard Drives image 3

Toshiba Part #/MPN: MG06ACA800E

DiscTech Item #: TOS-MG06ACA800E-BN-5Y

$199.00
  • Brand New
  • Warranty:5 Year Manufacturer
  • In Stock:81Need more?
Back
$199.00

Enterprise Grade

Capacity: 8TB

Speed: 7.2K RPM

Interface Types: SATA

Form Factor: 3.5" LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 230

Electrical Interface: SATA 600 - 6Gbps

On-Board Cache: 256MB

Toshiba MG06ACA800E 8TB 3.5-Inch LFF 6Gbps 7.2K RPM 512e MG06ACA Series Enterprise SATA Hard Drive - Brand New

Toshiba MG06ACA800E 8TB / 8000GB 3.5" LFF / Large Form Factor 6.0 Gb/s 7200 RPM 512e / Emulation MG06ACA Series Enterprise SATA / Serial ATA HDD / Hard Drive - Brand New

MG06ACA Series
Enterprise Capacity HDD

The MG06ACA Enterprise Capacity HDD models provides up to 10TB of capacity and 7,200 rpm performance, in a robust design engineered for nearline business-critical workloads.

The MG06ACA model generation utilizes industry-standard 3.5-inch 26.1 mm height form factor and Advanced Format sector technologies for optimum capacity and data reliability. Models support Toshiba Persistent Write Cache technology which helps enhance performance while assuring the consistency of write operations in the event of a sudden loss of power. Equipped with SATA 6.0 Gbit/s interface, the Enterprise Capacity MG06ACA models help to save rack space and reduce the footprint and operational burden of business critical servers and storage systems.

The MG06ACA Series improves sustained transfer rate performance to 237 MiB/s and increases MTTF by 25% when compared to the prior MG05ACA series. 4Kn or 512e Advanced Format Sector Technology models are available. 4Kn sector models (MG06ACAxxxA) offer suitable performance and compatibility with the 4Kn-capable applications and operating environments. 512e sector models (MG06ACAxxxE) provide support for legacy applications and operating environments that require 512 byte sector lengths.

Key Features

  • Industry Standard 3.5-inch 26.1 mm Height Form
  • Large 10TB Capacity; plus 8TB and 6TB MG06 Series models
  • 7,200 rpm Performance
  • SATA 6.0 Gbit/s Interface
  • MTTF 2.5 M hours
  • 550 Total TB Transferred per Year Workload Rating
  • 4Kn or 512e Advanced Format Sector Technology
  • Toshiba Persistent Write Cache Technology for Data-Loss Protection in Sudden Power-Loss Events
  • Improved sustained transfer rate
  • Sanitize Instant Erase (SIE) option model available

Applications

  • Mid-line / Nearline Business Critical Workloads
  • Tier 2 Business-Critical Servers and Storage Systems
  • Workloads and Use-Cases that Benefit from High Capacity per Spindle
  • Capacity-Optimized Storage Systems
  • Cloud-scale Storage Infrastructure
  • Data Archive and Back-up Infrastructure

Compatibility:

This drive is compatible with servers and arrays that accept 3.5in x 1.0in SATA drives

Toshiba MG06
Enterprise Capacity HDD
512emulation( 512e ) Model#MG06ACA800E
SPECIFICATIONS
Sector Size512E
Form Factor3.5-Inch
InterfaceSAS-3.0
Formatted Capacity8TB / 8,000GB
PerformanceInterface Speed
  • 6.0 Gbit/s
  • 3.0Gbit/s
  • 1.5 Gbit/s

    • Rotation Speed
  • 7,200 RPM +/- 0.1%

    • Buffer Size
  • 256 MiB

    • Data Transfer Speed (Sustained)
  • 230 MiB/s
    • Logical Data Block LenthMG06ACAxxxA
  • 4,096 B

    • MG06ACAxxxE
  • Host 512B Disk 4,096B
    • Supply VoltageAllowable Voltage
  • 12 V ± 10%
  • 5 V +10/-7%
    • Power ConsumptionRandom Read / Write
  • 9.1 W Typ

    • Active Idle (Idle-A)
  • 6.4 W Typ
    • Acoustics (Sound Power)Idle
  • 34 dB Typ
    • Environmental Limits
    TemperatureOperating
  • 5° C to 55° C

    • Non-Operating
  • -40° C to 70° C
    • HumidityOperating
  • 5 % to 90 % R.H. (No condensation)

    • Non-Operating
  • 5 % to 95 % R.H. (No condensation)
    • ShockOperating
  • 686 m/s { 70 G } ( 2 ms duration )

    • Non-Operating
  • 2,450 m/s { 300 G } ( 2 ms duration )
    • VibrationOperating
  • 7.35 m/s { 0.75 G } ( 5 to 300 Hz )
  • 2.45 m/s { 0.25 G } ( 300 to 500 Hz )

    • Non-Operating
  • 29.4 m/s { 3.0 G } ( 5- 500Hz )
    • AltitudeOperating
  • -305 m to +3,048 m { -1,000 to +10,000 feet }

    • Non-Operating
  • -305 m to +12,192 m { -1,000 to +40,000 feet }
    • Click here to view the manufacturer's item description/brochure

    ROHS Compliant

    Weight: 1.8 lb

    Warranty: 5 Year Manufacturer

    Brand New

    5 Year Manufacturer Warranty
