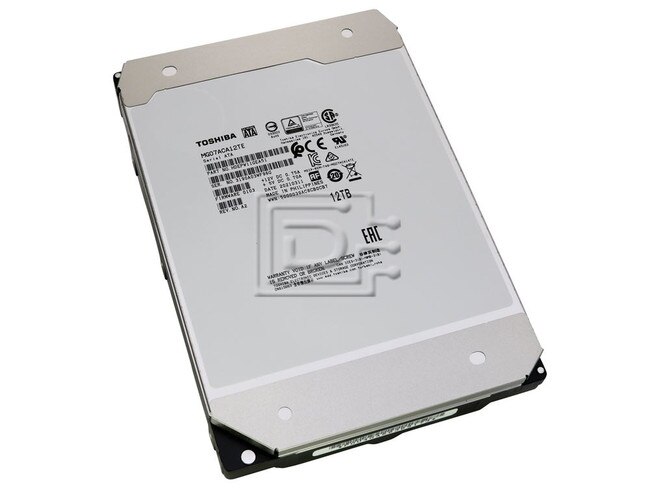

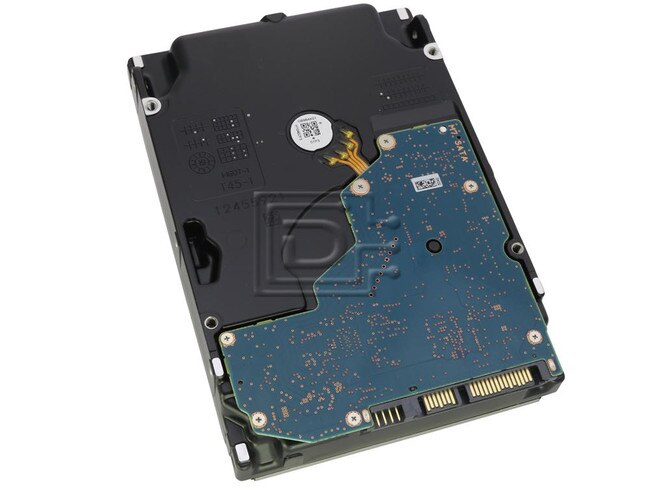

Toshiba MG07ACA Series MG07ACA12TE 12TB 512e SATA Hard Drive

Toshiba Part #/MPN: MG07ACA12TE

DiscTech Item #: TOS-MG07ACA12TE-BN-5Y


$484.00
$484.00

Enterprise Grade

Capacity: 12TB

Speed: 7,200RPM

Interface Types: SATA

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 242

Electrical Interface: SATA 600 - 6.0Gbps

On-Board Cache: 256MB

Toshiba MG07ACA12TE 12TB 3.5-Inch LFF 6Gbps 7.2K RPM 512e MG07ACA Series Enterprise SATA Hard Drive - Brand New

Toshiba MG07ACA12TE 12TB / 12000 3.5” LFF / Large Form Factor 6.0 Gb/s 7200 RPM 512e / 512 Emulation MG07ACA Series Enterprise SATA / Serial ATA HDD / Hard Drive - Brand New

MG07ACA Series
Enterprise Capacity HDD

Using the world's first 9-disk Helium sealed design, the GG07ACA Enterprise Capacity SATA HDD provides up to 14 TB of conventional magnetic recording (CMR) and 7,200 rpm performance. The industry-standard 3.5-inch form-factor integrates easily int cloud-scale storage infrastructure, business-critical servers and storage, and File Object storage solutions.

The MG07ACA Series utilizes Toshiba precision laser welding technology to seal helium inside 9-disk mechanics for the life of the drive. The helium-sealed design reduces aerodynamic drag to deliver a lower operational power profile, helping to achieve TCO opbectives for cloud-scale and software-defined data center infrasructure.

The massive 14TB and 12TB model capacity is delivered using proven CMR/PRM recording technologies providing optimum compatibility and data reliability. Equipped with SATA 6.0 Gbit/s interface, the MG07ACA models integrate easily into standard 3.5-inch SATA drive bays to help reduce the footprint and operational burden of cloud-scale storage infrastructure, and business critical servers and storage systems

Key Features

  • 14TB and 12TB capacity models
  • Innovative 9-disk helium-sealed design for superiour storage density
  • Industry Standard 3.inch 26.1 mm Form Factor
  • 7,200 rpm Performance
  • SATA 6.0 Gbit/s Interface
  • Low operational power profile, providing excellent power efficiency (W/TB) for better TCO
  • 550 Total TB Transferred per Year Workload Rating
  • Sanitize Instant Erase (SIE) option model available

Applications

  • Cloud-scale Storage Infrastructure
  • Software-defined data center infrastructure
  • File- and Object-based storage infrastructure
  • Midline / Nearline Business Critical Workloads
  • Tier 2 Business-Critical Servers and Storage Systems


Compatibility:

This drive is compatible with servers and arrays that accept 3.5in x 1.0in SATA drives

Toshiba MG07ACA Series
Enterprise Capacity HDD
512 emulation (512e) Model#MG07ACA12TE
SPECIFICATIONS
Sector Size512 emulation (512e)
Form Factor3.5-Inch
InterfaceSATA-3.3
Formatted Capacity12TB / 12,000GB
PerformanceInterface Speed
  • 6.0 Gbit/s
  • 3.0 Gbit/s
  • 1.5 Gbit/s

  • Rotation Speed
  • 7,200 RPM

  • Buffer Size
  • 256 MiB

  • Maximum Sustained Data Transfer Speed (Typ)
  • 242 MiB/s
  • Logical Data Block LenthMG07ACAxxxE/EY
  • Host:512 GB, Disk:4,096 GB
  • Supply VoltageAllowable Voltage
  • 12 V ± 10% / 5 V + 10% / -7%
  • Power ConsumptionRandom Write / Read 4KB Q1 (Typ)
  • 7.83 W Typ

  • Active Idle (Idle-A)
  • 4.25 W Typ.
  • AcousticsActive Idle (Typ)
  • 20 dB Typ
  • ENVIRONMENTAL LIMITS
    Ambient TemperatureOperating
  • 5°C to 55°C

  • Non-Operating
  • -40°C to 70°C
  • Relative Humidityoperating
  • 5% to 90% R.H. (No condensation)

  • Non-Operating
  • 5% to 95% R.H. (No condensation)
  • AltitudeOperating
  • -305 m to 3,048 m

  • Non-Operating
  • -305 m to 12,192 m
  • ShockOperating
  • 686 m/s {70 G}(2 ms duration)

  • Non-Operating
  • 2,450 m/s {250 G} (2 ms duration)
  • VibrationOperating
  • 7.35 m/s {0.75 G} (5 to 300 Hz
  • 2.45 m/s {0.25 G} (300 to 500 Hz)

  • Non-Operating
  • 29.4 m/s {3.0 G} (5 to 500 Hz)
  • RELIABILITY
    MTTF2,500,000 hours
    Non-recoverable Error Rate10 error per 1016 bits read
    Load / Unload600,000 times
    Availability24 hours/day, 7 days/week
    Ratted Annual Workload (Total TB Transferred per Year, R/W)550 TB per year
    MECHANICAL SPECIFICATIONS
    Width (Max)101.85 mm
    Height (Max)26.1 mm
    Length (Max)147.0 mm
    Weight (Max(Typ))720 g / 1.59 lbs

    Click here to view the manufacturer's item description/brochure

    ROHS Compliant

    Weight: 1.8 lb

    Warranty: 5 Year Manufacturer

    Brand New

    Condition Levels Explained

    The product is brand new.

    5 Year Manufacturer Warranty

    Product Warranties Explained

    The product has a manufacturer warranty for the time period specified.
