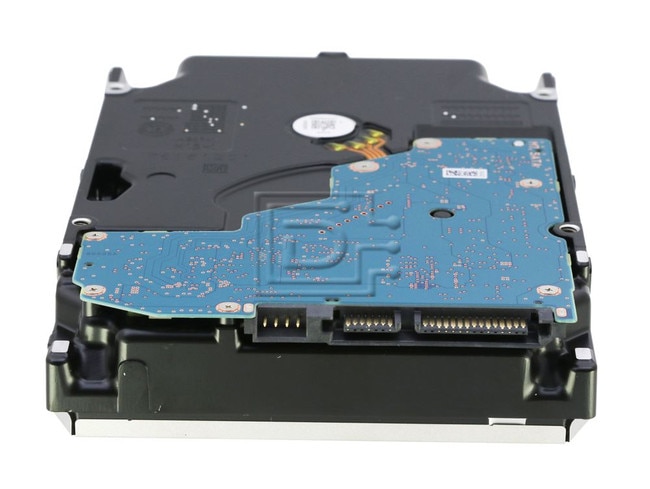

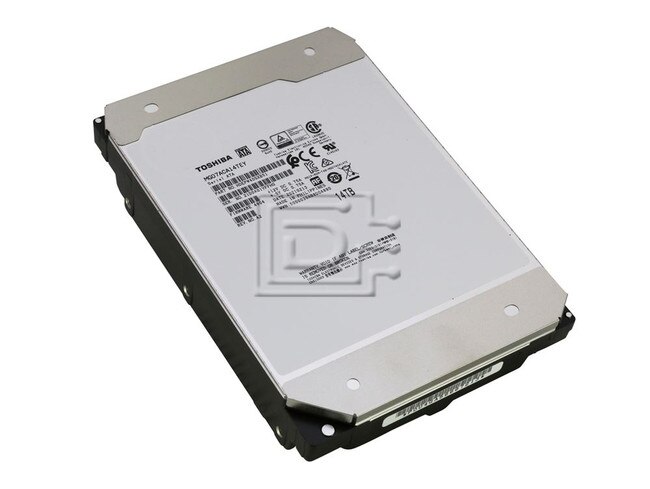

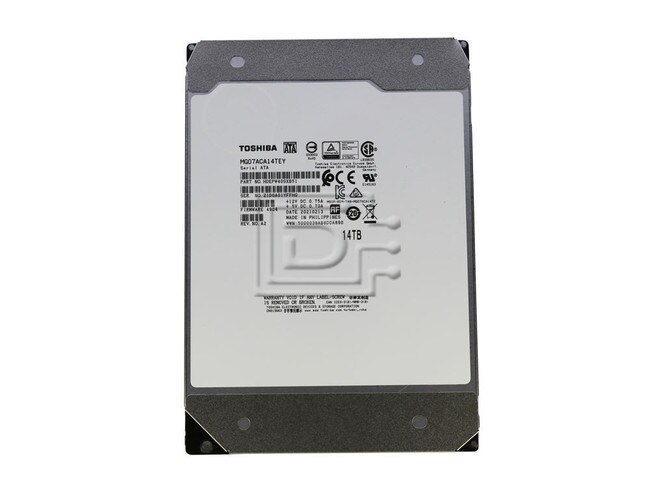

Toshiba MG07ACA14TEY / HDEPW40SXB51 14TB LFF 6Gbps 7.2K 512e SATA HDD

Toshiba Part #/MPN: MG07ACA14TEY

DiscTech Item #: TOS-MG07ACA14TEY-BN-OE


Enterprise Grade

Capacity: 14TB

Speed: 7,200RPM

Interface Types: SATA

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 248

Electrical Interface: SATA 600 - 6.0Gbps

On-Board Cache: 256MB

Toshiba MG07ACA14TEY / HDEPW40SXB51 14TB LFF 6Gbps 7.2K 512e MG07ACA Series SIE SATA HDD - Brand New

Toshiba MG07ACA14TEY / HDEPW40SXB51 14TB / 1400GB 3.5” LFF / Large Form Factor 6.0 Gb/s 7200 RPM 512e / 512 Emulation MG07ACA Series SIE / Sanitize Instant Erase SATA / Serial ATA HDD / Hard Drive - Brand New

Same as MG07ACA14TE but MG07ACA14TEY includes Instant Secure Erase feature.


The New Heavyweight Champion in the the Capacity Arena
The World’s First 9 Disk HDD*

Using the world’s first 9-disk Helium-sealed design, the MG07ACA Enterprise Capacity SATA HDD provides up to 14TB of conventional magnetic recording (CMR) capacity and 7,200 rpm performance. The industry-standard 3.5-inch form-factor integrates easily into cloudscale storage infrastructure, business-critical servers and storage, and File and Object storage solutions.

The MG07ACA Series utilizes Toshiba precision laser welding technology to seal helium inside the 9-disk mechanics for the life of the drive. The helium-sealed design reduces aerodynamic drag to deliver a lower operational power profile, helping to achieve TCO objectives for cloud-scale and software-defined data center infrastructure.


  • 14TB and 12TB capacity models
  • Innovative 9-disk helium-sealed design for superior storage density
  • Industry Standard 3.5-inch 26.1 mm Form Factor
  • 7,200 rpm Performance
  • SATA 6.0 Gbit/s Interface
  • Low operational power profile, providing excellent power efficiency (W/TB) for better TCO
  • 550 Total TB Transferred per Year Workload Rating
  • Sanitize Instant Erase (SIE) option model available



  • Cloud-scale Storage Infrastructure
  • Software-defined data center infrastructure
  • File- and Object-based storage infrastructure
  • Mid-line / Nearline Business Critical Workloads
  • Tier 2 Business-Critical Servers and Storage Systems



Advanced Format (AF) is the standard that improves formatting efficiency by increasing the length of HDD data sectors to be longer than their traditional size of 512 bytes. The Advanced Format standard was formulated by the International Disk Drive Equipment and Materials Association (IDEMA) in which Toshiba Electronic Devices & Storage Corporation and other HDD manufacturers participate. By establishing the Advanced Format standard, IDEMA aims to ensure that the storage devices supplied by various companies will be compatible with file systems and operating systems (OS) generations that support AF sector technology.

Advanced Format improves formatting efficiency and the reliability of recorded data by increasing the length of data sectors and relative strength of the error detection and correction algorithms. The generation one Advanced Format standards stipulate a physical sector size of 4,096 bytes and includes the ability to logically emulate the older 512-byte sectors (sometimes called "512e")in order to maintain compatibility with applications or hardware which demand conventional 512-byte sector technology. During emulation, when the host sends the disk drive data to be stored in increments of 512 bytes, the disk drive places the emulated 512-byte sector at an appropriate position within a larger physical 4,096 bytes sector and then writes the 4,096 bytes sector to the disk media.

Some file systems and operating systems generations have advanced to support the physical 4096-byte sector as the logical sector size. Such host systems are called "4K native (4Kn)" capable. Since both the physical and logical sector length are 4096 bytes, emulation of the older 512-byte sectors is no longer required, allowing the 4Kn host to use the available 4Kn disk storage more efficiently. We have made available HDDs of the 512-byte emulation type, the 4Kn type, and the 512 native type, to provide the sector technology that will fit the host systems’ specification.

* Source: Toshiba Electronic Devices & Storage Corporation, as of December 2017 for the 3.5-inch, 26.1mm


This drive is compatible with servers and arrays that accept 3.5in x 1.0in SATA drives

Model NumberMG07ACA14TEY
Part NumberHDEPW40SXB51
Sector Size512 emulation ( 512e )
InterfaceSATA 6.0
Formatted Capacity14TB / 14,000GB
PerformanceInterface Speed
  • 6.0 Gbit/s
  • 3.0 Gbit/s
  • 1.5 Gbit/s
Rotation Speed
  • 7,200 RPM
Buffer Size
  • 256 MiB
Maximum Sustained Data Transfer Speed (Typ)
  • 248 MiB/s
Logical Data Block LenthMG07ACAxxxA/AY (fixed length)
  • 4,096 GB
  • Host:512 GB, Disk:4,096 GB
Supply VoltageAllowable Voltage
  • 12 V ± 10%
  • 5 V + 10% / -7%
Power ConsumptionRandom Write / Read 4KB Q1 (Typ)
  • 7.80W Typ
Active Idle (Idle-A)
  • 4.22W Typ
AcousticsActive Idle (Typ)
  • 20 dB Typ
Ambient TemperatureOperating
  • 5°C to 55°C
  • -40°C to 70°C
Relative HumidityOperating
  • 5% to 90% R.H. (No condensation)
  • 5% to 95% R.H. (No condensation)
  • -305 m to 3,048 m
  • -305 m to 12,192 m
  • 686 m/s {70 G}(2 ms duration)
  • 2,450 m/s {250 G} (2 ms duration)
  • 7.35 m/s {0.75 G} (5 to 300 Hz
  • 2.45 m/s {0.25 G} (300 to 500 Hz)
  • 29.4 m/s {3.0 G} (5 to 500 Hz)
MTTF2,500,000 hours
Non-recoverable Error Rate10 error per 1016 bits read
Load / Unload600,000 times
Availability24 hours/day, 7 days/week
Ratted Annual Workload (Total TB Transferred per Year, R/W)550 TB per year
Width (Max)101.85 mm
Height (Max)26.1 mm
Length (Max)147.0 mm
Weight (Max(Typ))720 g / 1.59 lbs

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: HDEPW40SXB51 MG07ACA14TE

Weight: 1.8 lb

Warranty: 1 Year DiscTech

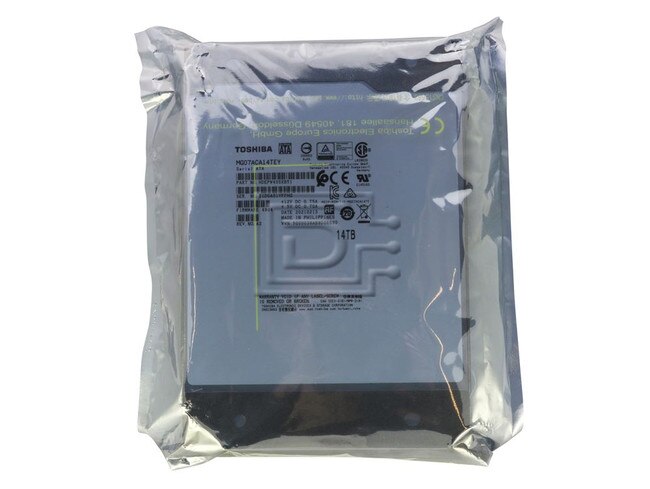

Brand New
