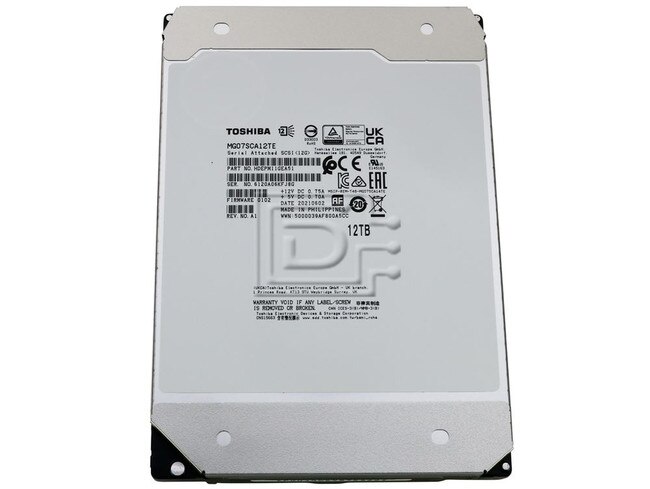

Toshiba MG07SCA Series MG07SCA12TE 12TB 512e SAS Hard Drive

Toshiba Part #/MPN: MG07SCA12TE

DiscTech Item #: TOS-MG07SCA12TE-BN-5Y


$289.00
$289.00

Enterprise Grade

Capacity: 12TB

Speed: 7,200RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 242

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps

On-Board Cache: 256MB

Toshiba MG07SCA12TE 12TB 3.5-inch LFF 12Gbps 7.2K RPM 512e MG07SCA Series Enterprise SAS Hard Drive - Brand New

Toshiba MG07SCA12TE 12TB / 12000 3.5” LFF / Large Form Factor 12.0 Gb/s 7200 RPM 512e / 512 Emulation MG07SCA Series Enterprise SAS / Serial Attached SCSI HDD Hard Drive - Brand New

MG07SCA Series
Enterprise Capacity HDD

The MG07SCA Enterprise Capacity HDD series provide capacities up to 14 TB and 7,200 rpm performance, in a robust design engineered for near-line business-critical workloads.

The MG07SCA series utilize industry-standard 3.5-inch 26.1 mm height from factor and Advanced Format sector technologies helps enhance performance while also maintaining data integrity in the event of a sudden loss of power. Equipped with 12 Gbit/s SAS Interface, the Enterprise Capacity MG07SCA series help save rack space and reduce the footprint and operational burden of business critical servers and storage systems.

512e or 4Kn Advanced Format sector technology models are available. 4Kn models (MC07SCAxxxA/AY) offer optimum performance and compatibility with 4K-capable applications and operating environments. 512e (MC07SCAxxxA/AY) models are broadly supported today and also help provide support for legacy applications and operating environments that require 512 B sector lengths.

KEY FEATURES

  • Industry Standard 3.5-inch 26.1 mm Height Form Factor
  • Large Capacity (14 TB and 12 TB Models)
  • 7,200 rpm Performance
  • Dual-Port 12 Gbit/s SAS Interface
  • MTTF of 2,500,000 hours
  • 550 total TB Transferred per Year Workload Rating
  • 4Kn or 512e Advanced Format Sector Technology
  • Toshiba Persistent Write Cache Technology to help Maintain Data Integrity during Power-Loss Events
  • Sanitize Instant Erase (SIE) option model

APPLICATIONS

  • Engineered for Mid-line / Near-line Business Critical Workloads
  • Tier 2 Business-Critical Servers and Storage Systems
  • Servers Supporting Application Workloads that Benefit form High Capacity per Spindle
  • Capacity-Optimized Data Center Storage Systems
  • Object and File Storage Solutions
  • Enterprise Data Protection and Tiered Storage Infrastructure


Compatibility:

This drive is compatible with servers and arrays that accept 3.5in x 1.0in SAS drives

Toshiba MG07ACA Series
Enterprise Capacity HDD
512 Emulation (512e) Model#MG07SCA12TE
SPECIFICATIONS
Sector Size512e Emulation (512e)
Form Factor3.5-Inch
InterfaceSAS-3.3
Formatted Capacity12TB / 12,000GB
PerformanceInterface Speed
  • 12.0 Gbit/s
  • 6.0 Gbit/s
  • 3.0Gvit/s
  • 1.5 Gbit/s

  • Rotation Speed
  • 7,200 RPM

  • Buffer Size
  • 256 MiB

  • Maximum Sustained Data Transfer Speed (Typ)
  • 242 MiB/s
  • Logical Data Block LenthMG07SCAxxxE/EY (emulation)
  • Host:512 B, , Disk:4,096 B
  • Host:520 B, Disk:4,160 B
  • Host:528 B, Disk:4,224 B
  • Supply VoltageAllowable Voltage
  • 12 V ± 10% / 5 V + 10% / -7%
  • Power ConsumptionRandom Write / Read 4KB Q1 (Typ)
  • 7.80 W Typ

  • Active Idle (Idle-A)
  • 4.36 W Typ.
  • AcousticsActive Idle (Typ)
  • 20 dB Typ
  • ENVIRONMENTAL LIMITS
    Ambient TemperatureOperating
  • 5°C to 55°C

  • Non-Operating
  • -40°C to 70°C
  • Relative Humidityoperating
  • 5% to 90% R.H. (No condensation)

  • Non-Operating
  • 5% to 95% R.H. (No condensation)
  • AltitudeOperating
  • -305 m to 3,048 m

  • Non-Operating
  • -305 m to 12,192 m
  • ShockOperating
  • 686 m/s {70 G}(2 ms duration)

  • Non-Operating
  • 2,450 m/s {250 G} (2 ms duration)
  • VibrationOperating
  • 7.35 m/s {0.75 G} (5 to 300 Hz
  • 2.45 m/s {0.25 G} (300 to 500 Hz)

  • Non-Operating
  • 29.4 m/s {3.0 G} (5 to 500 Hz)
  • RELIABILITY
    MTTF2,500,000 hours
    Non-recoverable Error Rate10 error per 1016 bits read
    Load / Unload600,000 times
    Availability24 hours/day, 7 days/week
    Ratted Annual Workload (Total TB Transferred per Year, R/W)550 TB per year
    MECHANICAL SPECIFICATIONS
    Width (Max)101.85 mm
    Height (Max)26.1 mm
    Length (Max)147.0 mm
    Weight (Max(Typ))720 g / 1.59 lbs

    Click here to view the manufacturer's item description/brochure

    ROHS Compliant

    Weight: 1.8 lb

    Warranty: 5 Year Manufacturer

    Brand New

    Condition Levels Explained

    The product is brand new.

    5 Year Manufacturer Warranty

    Product Warranties Explained

    The product has a manufacturer warranty for the time period specified.
