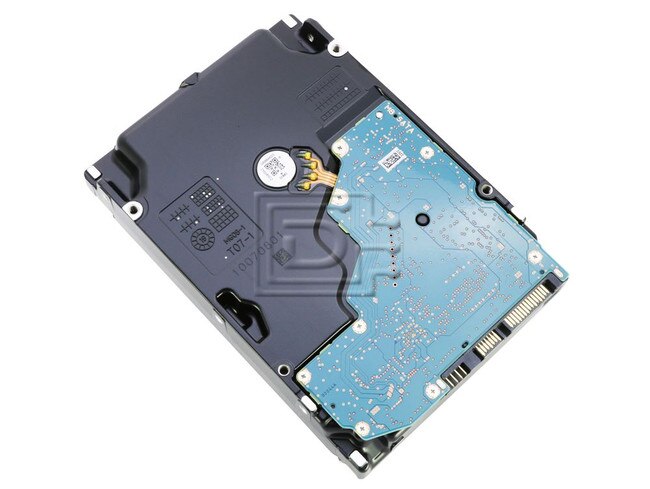

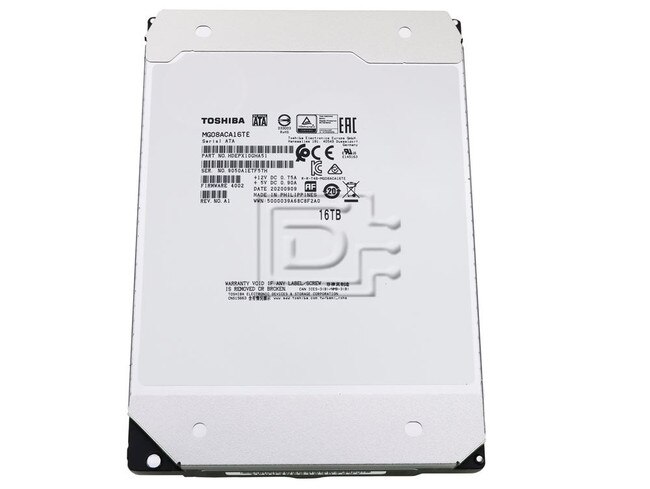

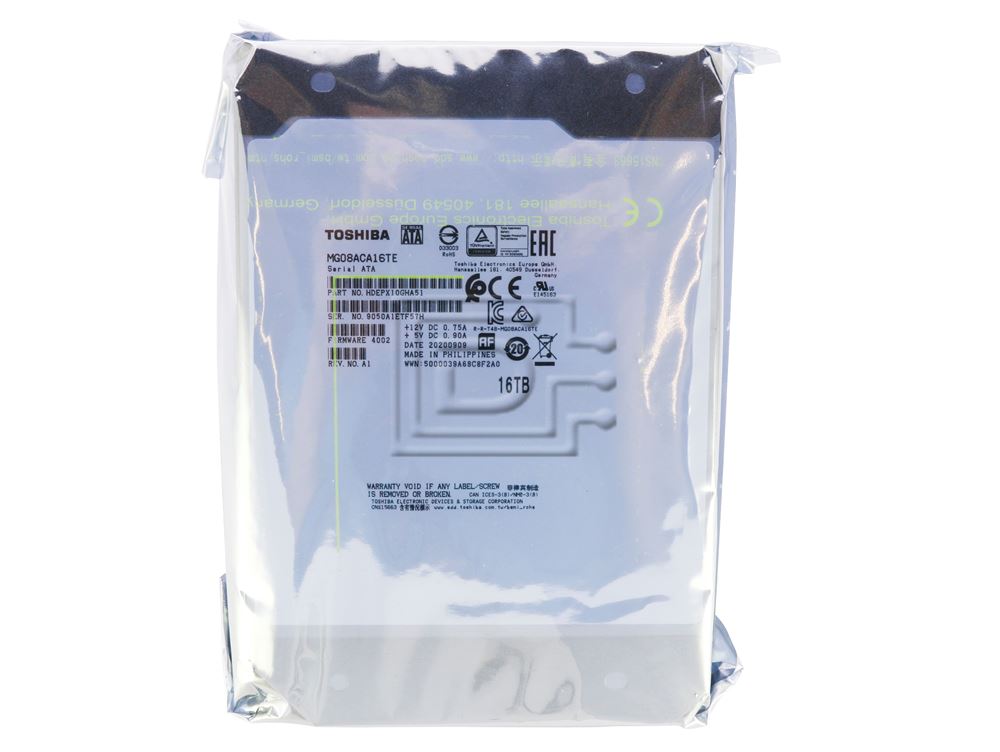

Toshiba MG08ACA16TE 16TB 3.5 LFF SATA Hard Drive HDD

Toshiba Part #/MPN: MG08ACA16TE

DiscTech Item #: TOS-MG08ACA16TE-BN-OE

$244.99
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • Warranty:1 Year DiscTech
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

  • Special Order - Ships in 1-2 business days
    Special Order - Ships in 1-2 business days

    This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.

Back
$244.99

Enterprise Grade

Capacity: 16TB

Speed: 7,200RPM

Interface Types: SATA

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Electrical Interface: SATA 600 - 6.0Gbps

On-Board Cache: 512MB

Toshiba MG08ACA16TE / HDEPX10GHA51 16TB 3.5-Inch LFF 6Gbps 7.2K RPM 512e MG08 Series Enterprise SATA Hard Drive - Brand New

Toshiba MG08ACA16TE / HDEPX10GHA51 16TB / 16000 3.5" LFF / Large Form Factor 6.0 Gb/s 7200 RPM 512e / 512 Emulation MG08 Series Enterprise SATA / Serial ATA HDD / Hard Drive - Brand New

MG08 Series
Enterprise Capacity HDD

Using an industry-leading 9-disk design pioneered by Toshiba, the MG08 Series provides 16TB of conventional magnetic recording (CMR) capacity and 7,200 rpm performance. The industry-standard .5-inch form-factor integrates easily into cloud-scale storage infrastructure, business-critical servers and storage, and File and Object storage solutions. Toshiba’s precision industrial laser welding technology is put to use to seal helium inside the 9-disk mechanics. The massive 16TB capacity is delivered using proven CMR recording technology providing optimum application compatibility and data reliability. Available with either a SATA 6.0 Gbit/s or a 12.0 Gbit/s SAS interface, the MG08 Series models integrate easily into standard 3.5-inch drive bays to help reduce the footprint and operational burden of cloud-scale storage infrastructure, and business critical servers and storage systems.

Key Features

  • Industry Standard 3.5-inch 26.1 mm Height Form Factor
  • Conventional Magnetic Recording (CMR) 16TB for broad compatibility
  • Industry-leading 9-disk helium-sealed design for superior storage density
  • 7,200 rpm Performance
  • 550 Total TB Transferred per Year Workload Rating
  • 512e or 4Kn Advanced Format Sector Technology; (512e Model) Includes Toshiba Persistent Write Cache Technology for Data-Loss Protection in Sudden Power-Loss Events



Application

  • Cloud-scale Sever and Storage Infrastructure
  • Software-defined data center infrastructure
  • File- and Object-based storage infrastructure
  • Tiered Storage Infrastructure
  • Workloads and Use-Cases that Benefit from High Capacity per Spindle
  • Capacity-Optimized Cloud-scale and Rack-Scale Storage Systems
  • Compliance Data Life-Cycle Management
  • Data Center Data-Protection and Data Back-up Infrastructure



Compatibility:

This drive is compatible with servers and arrays that accept 3.5in x 1.0in SATA drives

Toshiba MG08
Enterprise Capacity HDD
512 Emulation (512e) Model#MG08ACA16TE
SPECIFICATIONS
Sector Size512 Emulation (512e)
Form Factor3.5-Inch
InterfaceSATA-3.3
Formatted Capacity16TB / 16,000GB
PerformanceInterface Speed
  • 12.0 Gbit/s
  • 6.0 Gbit/s
  • 3.0Gvit/s
  • 1.5 Gbit/s

  • Rotation Speed
  • 7,200 RPM

  • Buffer Size
  • 512 MiB
Logical Data Block LengthMG08xxxxxxE (emulation)
  • Host:512 B, Disk; 4096 B
Supply VoltageAllowable Voltage
  • 12 V ± 10% / 5 V + 10% / -7%
Power ConsumptionRandom Write / Read 4KB Q1 (Typ)
  • 8.28 W Typ
  • Active Idle (Idle-A)
  • 4.73 W Typ.
AcousticsActive Idle (Typ)
  • 20 dB Typ
ENVIRONMENTAL LIMITS
Ambient TemperatureOperating
  • 5°C to 55°C

  • Non-Operating
  • -40°C to 70°C
Relative HumidityOperating
  • 5% to 90% R.H. (No condensation)

  • Non-Operating
  • 5% to 95% R.H. (No condensation)
AltitudeOperating
  • -305 m to 3,048 m

  • Non-Operating
  • -305 m to 12,192 m
ShockOperating
  • 686 m/s {70 G}(2 ms duration)

  • Non-Operating
  • 2,450 m/s {250 G} (2 ms duration)
VibrationOperating
  • 7.35 m/s {0.75 G} (5 to 300 Hz
  • 2.45 m/s {0.25 G} (300 to 500 Hz)

  • Non-Operating
  • 29.4 m/s {3.0 G} (5 to 500 Hz)
RELIABILITY
MTTF2,500,000 hours
Non-recoverable Error Rate10 error per 1016 bits read
Load / Unload600,000 times
Availability24 hours/day, 7 days/week
Ratted Annual Workload (Total TB Transferred per Year, R/W)550 TB per year
MECHANICAL SPECIFICATIONS
Width (Max)101.85 mm
Height (Max)26.1 mm
Length (Max)147.0 mm
Weight (Max(Typ))720 g / 1.59 lbs
Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: HDEPX10GHA51

Weight: 1.8 lb

Warranty: 1 Year DiscTech
