Toshiba MG08ADA800A 8TB 3.5" LFF 6 Gbps 7.2K RPM 4Kn MG08-D Series Enterprise SATA Hard Drive

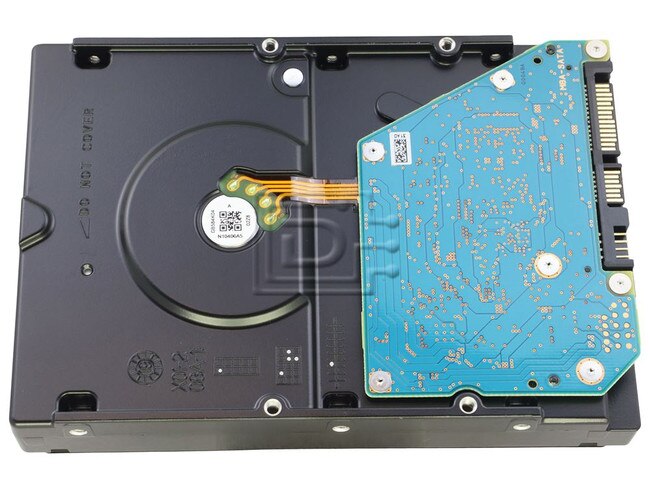

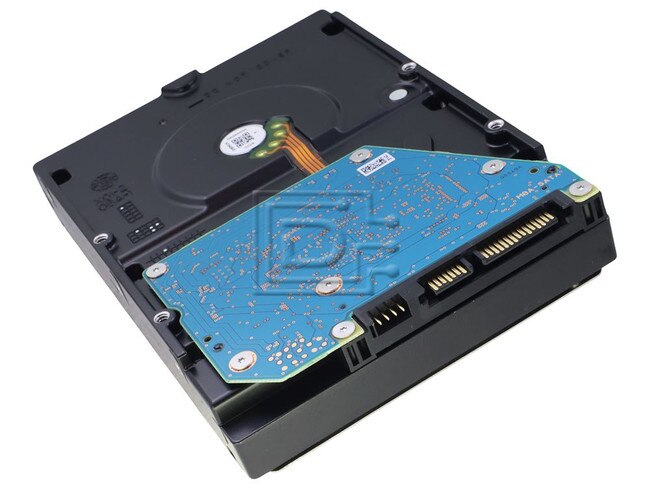

Toshiba MG08ADA800A 8TB SATA Hard Drive Image 1 imageToshiba MG08ADA800A 8TB SATA Hard Drive Image 2 imageToshiba MG08ADA800A 8TB SATA Hard Drive Image 3 imageToshiba MG08ADA800A 8TB SATA Hard Drive Image 4 imageToshiba MG08ADA800A 8TB SATA Hard Drive Image 5 image
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

  • 1 Year DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$299.99

Capacity:8TB
Speed:7.2K RPM
Interface Types:SATA
Form Factor:3.5" LFF Hard Drive
Electrical Interface:SATA 600 - 6Gbps
RAM:256MB
Click to see more 8TB SATA 7.2K RPM Drives

Description

Toshiba MG08ADA800A 8TB 3.5" LFF 6 Gbps 7.2K RPM 4Kn MG08-D Series Enterprise SATA Hard Drive - Brand New

Toshiba MG08ADA800A 8TB 3.5" LFF 12Gbps 7.2K RPM 4Kn MG08-D Series Enterprise SATA Hard Drive - Brand New

The Enterprise Capacity 7200 rpm HDD models offer up to 8 TB[1] , a choice of interface (SATA -MG08ADA Series, and SAS - MG08SDA Series), as well as a choice of 512 Native(512n) sector or 512 emulation(512e) sector technologies. All models utilize a power-efficient mechanical design incorporating the latest advancements in HDD technology. MG08-D Series models are designed to provide plug-and-play robustness using the industry standard 3.5-inch[2] form factor. Model options supporting Sanitize Instant Erase (SIE) and Self-Encrypting Drive (SED).

Key Features

  • Industry Standard 3.5-inch 26.1 mm Height Form Factor
  • Up to 8 TB Capacity
  • 7200 rpm Performance
  • Choice of SATA 6 Gbit/s or Dual-Port SAS 12 Gbit/s Interface
  • 550 Total TB Transferred per Year Workload Rating[
  • Choice of 512n or 512e (Advanced Format) Sector Technology
  • Sanitize Instant Erase (SIE) and Self-Encrypting Drive (SED) Option Models Available

Applications

  • Engineered for Mid-line / Nearline Business Critical Workloads
  • Tier 2 Business-Critical Servers and Storage Systems
  • Servers Supporting Application Workloads that Benefit from High Capacity per Spindle
  • Capacity-Optimized Data Center Storage Systems
  • IT infrastructure designed around Enterprise Capacity HDD performance and applications and hypervisors that require legacy 512 Native Sector Technology

Compatibility

This drive is compatible with servers and arrays that accept 3.5in x 1.0in SATA drives

Specifications

Toshiba MG08SDA800E
Enterprise Capacity HDD
4Kn Model#MG08ADA800A
SPECIFICATIONS
Environmental Limits
Reliability
Mechanical Specifications
Sector Size4Kn
Form Factor3.5-Inch
InterfaceSATA 6.0 Gbit/s
Formatted Capacity8TB / 8,000GB
Performance

Interface Speed

  • 12.0 Gbit/s
  • 6.0 Gbit/s
  • 3.0Gbit/s
  • 1.5 Gbit/s


Rotation Speed

  • 7,200 RPM


Buffer Size

  • 256 MiB


Maximum Data Transfer Speed (Sustained)

  • 248 MiB/s
Logical Data Block Lenth

MG08SDA800E

  • 4,096 B


MG08SDA800E

  • Host: 512 B, Disk: 4,096B
Supply Voltage

Allowable Voltage

  • 12 V ± 10% / 5 V + 10% / -7%
  • 5 V +10/-7%
Power Consumption

Random Read / Write 4KB Q1

  • 9.29 W Typ


Active Idle (Idle-A)

  • 5.61 W Typ
Acoustics (Sound Power)

Idle

  • 31 dB Typ
Ambient Temperature

Operating

  • 5° C to 55° C


Non-Operating

  • -40° C to 70° C
Relative Humidity

Operating

  • 5 % to 90 % R.H. (No condensation)


Non-Operating

  • 5 % to 95 % R.H. (No condensation)
Altitude

Operating

  • -305 m ti 3,048 m


Non-Operating

  • -305 m ti 12,192 m
Shock

Operating

  • 686 m/s2 { 70 G } ( 2 ms duration )


Non-Operating

  • 2,450 m/s2 { 250 G } ( 2 ms duration )
Vibration

Operating

  • 7.35 m/s2 { 0.75 G } ( 5 to 300 Hz )
  • 2.45 m/s2 { 0.25 G } ( 300 to 500 Hz )


Non-Operating

  • 29.4 m/s { 3.0 G } ( 5- 500Hz )
MTTF2,000,000 hours
Non-recoverable Error Rate10 error per 1016 bits read
Load / Unload600,000 times
Availability24 hours/day, 7 days/week
Rated Annual Workload (Total TB Transferred per Year, R/W)550 TB per Year
Width101.85 mm Max
Height26.1 mm Max
Length147.0 mm Max
Weight770 g Max
Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 1.8 lb

Warranty: 1 Year DiscTech
