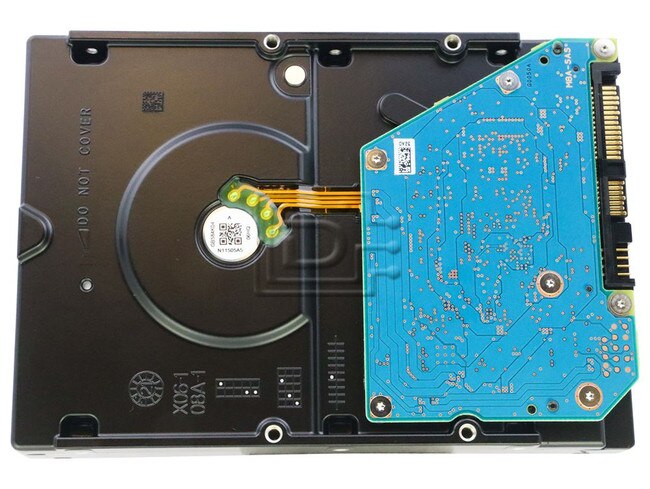

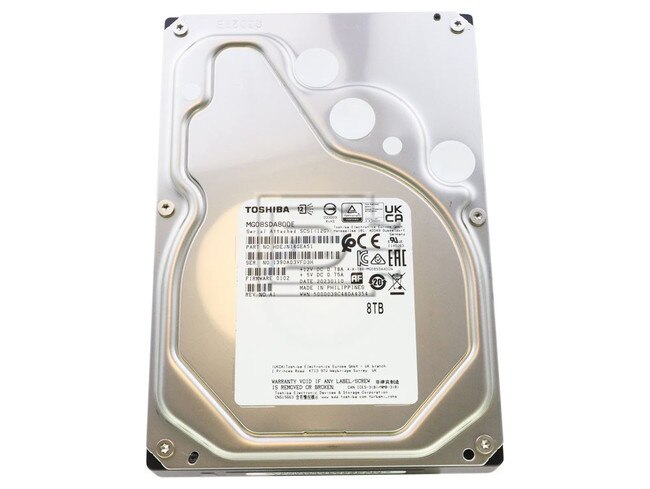

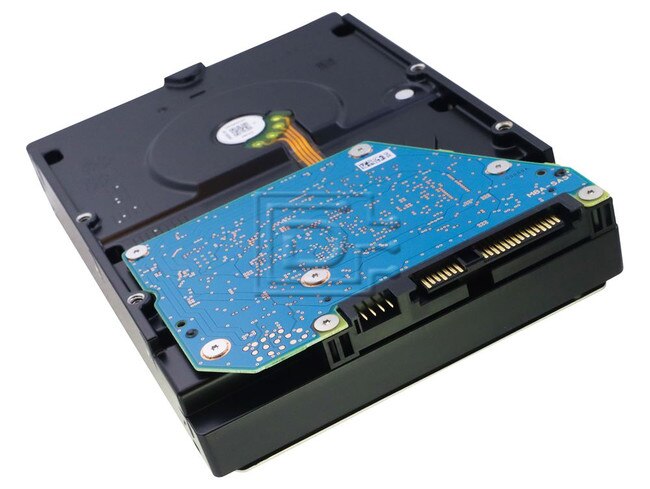

Toshiba MG08SDA800E 8TB 3.5" LFF 12Gbps 7.2K RPM 512e MG08-D Series Enterprise SAS Hard Drive

Toshiba Part #/MPN: MG08SDA800E

DiscTech Item #: TOS-MG08SDA800E-BN-5Y

$129.00

Brand New
Warranty:5 Year Manufacturer
In Stock:392Need more?

Back

$129.00

Enterprise Grade

Capacity: 8TB

Speed: 7.2K RPM

Interface Types: SAS

Form Factor: 3.5" LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 248

Electrical Interface: SAS-3 12Gbps

On-Board Cache: 256MB

Toshiba MG08SDA800E 8TB 3.5" LFF 12Gbps 7.2K RPM 512e MG08-D Series Enterprise SAS Hard Drive - Brand New

The Enterprise Capacity 7200 rpm HDD models offer up to 8 TB[1] , a choice of interface (SATA -MG08ADA Series, and SAS - MG08SDA Series), as well as a choice of 512 Native(512n) sector or 512 emulation(512e) sector technologies. All models utilize a power-efficient mechanical design incorporating the latest advancements in HDD technology. MG08-D Series models are designed to provide plug-and-play robustness using the industry standard 3.5-inch[2] form factor. Model options supporting Sanitize Instant Erase (SIE) and Self-Encrypting Drive (SED).

Key Features

Industry Standard 3.5-inch 26.1 mm Height Form Factor
Up to 8 TB Capacity
7200 rpm Performance
Choice of SATA 6 Gbit/s or Dual-Port SAS 12 Gbit/s Interface
550 Total TB Transferred per Year Workload Rating[
Choice of 512n or 512e (Advanced Format) Sector Technology
Sanitize Instant Erase (SIE) and Self-Encrypting Drive (SED) Option Models Available

Applications

Engineered for Mid-line / Nearline Business Critical Workloads
Tier 2 Business-Critical Servers and Storage Systems
Servers Supporting Application Workloads that Benefit from High Capacity per Spindle
Capacity-Optimized Data Center Storage Systems
IT infrastructure designed around Enterprise Capacity HDD performance and applications and hypervisors that require legacy 512 Native Sector Technology

Compatibility:

This drive is compatible with servers and arrays that accept 3.5in x 1.0in SAS drives

Toshiba MG08SDA800E Enterprise Capacity HDD
512 Emulation (512e) Model#	MG08SDA800E
SPECIFICATIONS
Environmental Limits
Reliability
Mechanical Specifications
Sector Size	512E
Form Factor	3.5-Inch
Interface	SAS 12.0 Gbit/s
Formatted Capacity	8TB / 8,000GB
Performance	Interface Speed 12.0 Gbit/s 6.0 Gbit/s 3.0Gbit/s 1.5 Gbit/s Rotation Speed 7,200 RPM Buffer Size 256 MiB Maximum Data Transfer Speed (Sustained) 248 MiB/s
Logical Data Block Lenth	MG08SDA800E 4,096 B MG08SDA800E Host: 512 B, Disk: 4,096B
Supply Voltage	Allowable Voltage 12 V ± 10% / 5 V + 10% / -7% 5 V +10/-7%
Power Consumption	Random Read / Write 4KB Q1 9.29 W Typ Active Idle (Idle-A) 5.61 W Typ
Acoustics (Sound Power)	Idle 31 dB Typ
Ambient Temperature	Operating 5° C to 55° C Non-Operating -40° C to 70° C
Relative Humidity	Operating 5 % to 90 % R.H. (No condensation) Non-Operating 5 % to 95 % R.H. (No condensation)
Altitude	Operating -305 m ti 3,048 m Non-Operating -305 m ti 12,192 m
Shock	Operating 686 m/s² { 70 G } ( 2 ms duration ) Non-Operating 2,450 m/s² { 250 G } ( 2 ms duration )
Vibration	Operating 7.35 m/s² { 0.75 G } ( 5 to 300 Hz ) 2.45 m/s² { 0.25 G } ( 300 to 500 Hz ) Non-Operating 29.4 m/s { 3.0 G } ( 5- 500Hz )
MTTF	2,000,000 hours
Non-recoverable Error Rate	10 error per 10¹⁶ bits read
Load / Unload	600,000 times
Availability	24 hours/day, 7 days/week
Rated Annual Workload (Total TB Transferred per Year, R/W)	550 TB per Year
Width	101.85 mm Max
Height	26.1 mm Max
Length	147.0 mm Max
Weight	770 g Max

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 1.8 lb

Warranty: 5 Year Manufacturer

Brand New

5 Year Manufacturer Warranty

Toshiba MG08SDA800E 8TB SAS Hard Drive 3.5in LFF 12Gbps 512e MG08-D Series Enterprise HDD
