Toshiba MG11SCP24TE 24TB SED SAS 12Gbps 7.2K RPM MG11 Hard Drive HDD

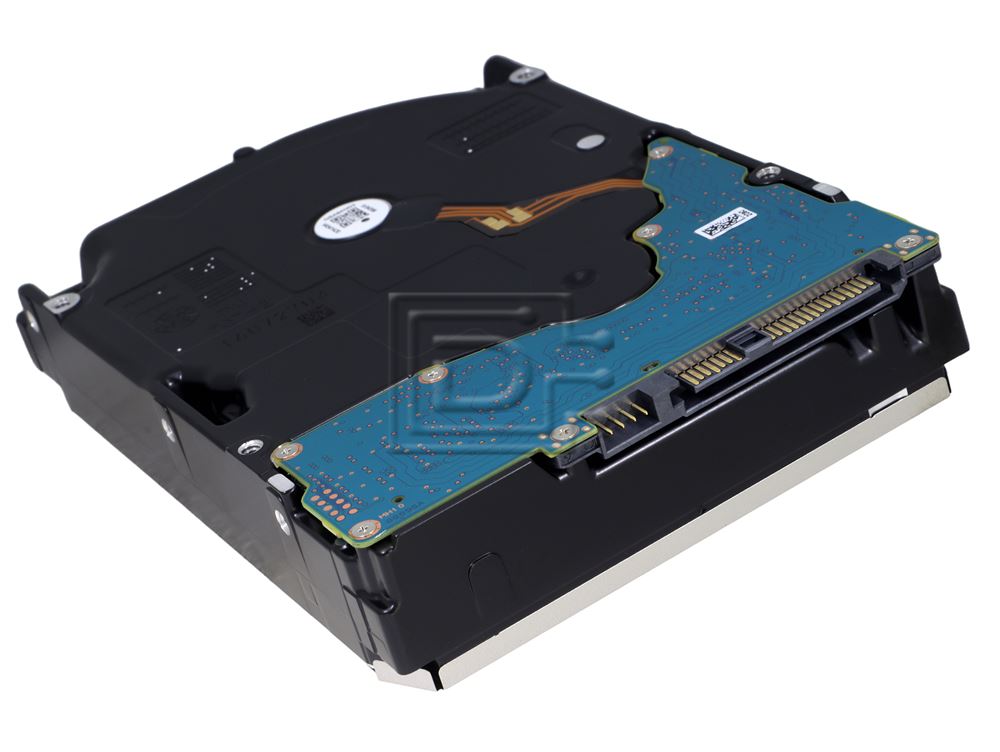

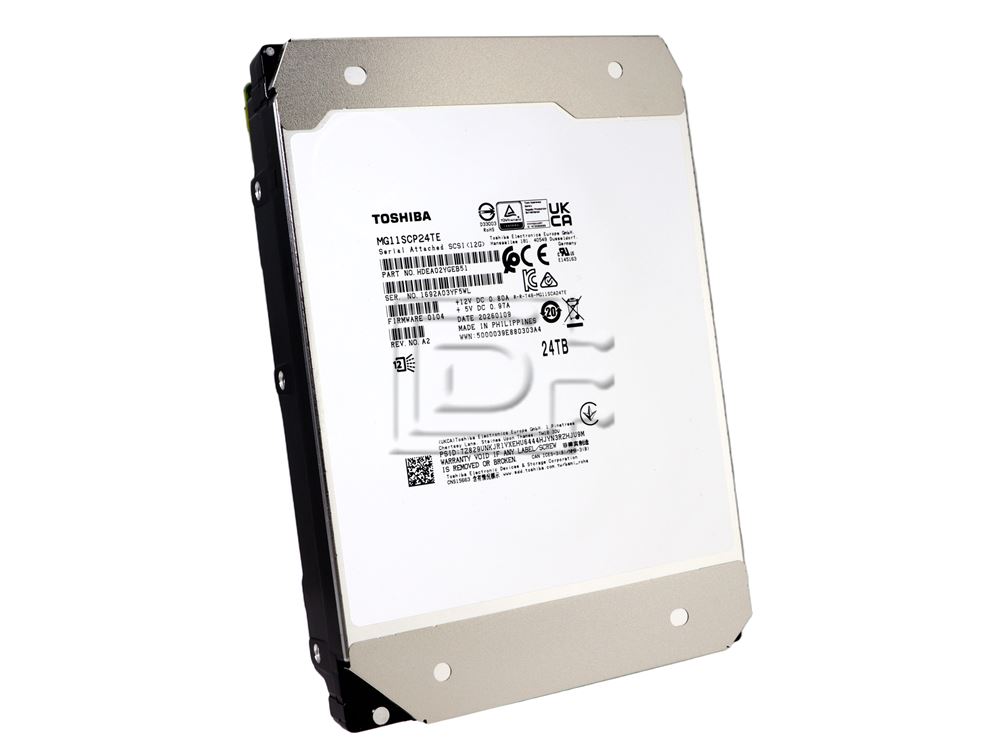

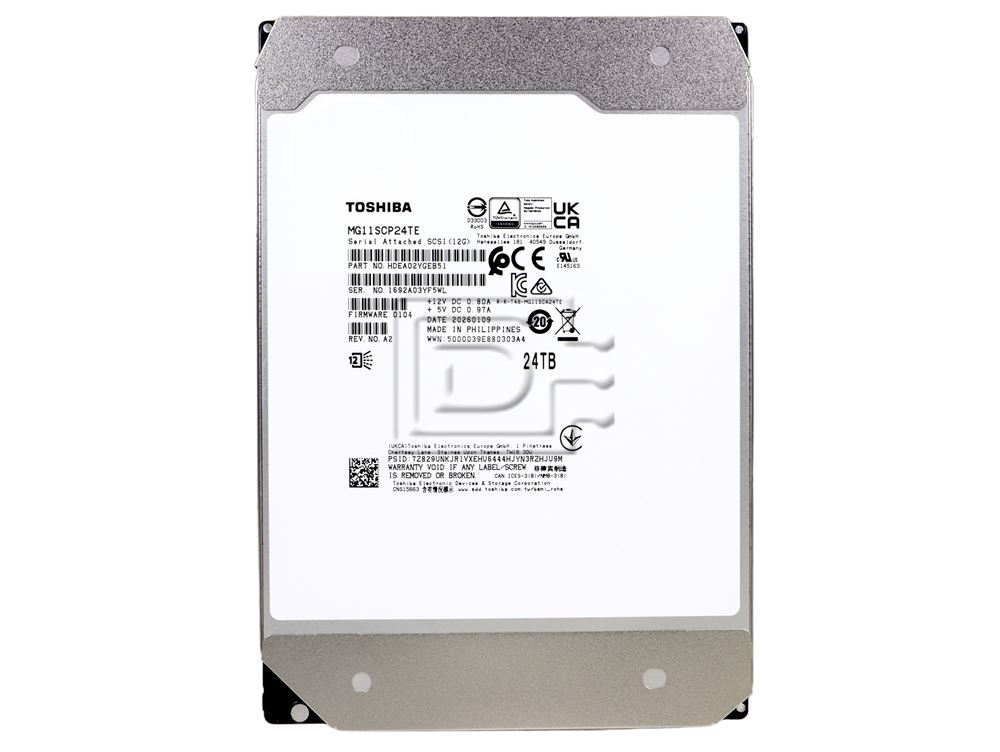

Toshiba MG11SCP24TE 24TB SED Encrypted SAS Hard Drive Image 1 imageToshiba MG11SCP24TE 24TB SED Encrypted SAS Hard Drive Image 2 imageToshiba MG11SCP24TE 24TB SED Encrypted SAS Hard Drive Image 3 image
  • In Stock:130
    Need more?
    Stock Levels

    This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.

  • 5 Year ManufacturerWarranty
    Product Warranties Explained

    The product has a manufacturer warranty for the time period specified.

$769.00

Capacity:24TB
Speed:7.2K RPM
Interface Types:SAS
Form Factor:3.5" LFF Hard Drive
Electrical Interface:SAS-3 12Gbps
Click to see more 24TB SAS 7.2K RPM Drives

Description

Toshiba MG11SCP24TE 24TB SED 3.5” LFF 12Gbps 7.2K RPM 512e MG11 Series SAS Hard Drive - Brand New

Toshiba MG11SCP24TE 24TB / 24000GB SAS 12Gbps SED 3.5” LFF / Large Form Factor 7200 RPM 512e / 512 Emulation MG11 Series HDD / Hard Drive - Brand New

TOSHIBA
MG11 SERIES CLOUD-SCALE CAPACITY HDD

Built on 50 years of Toshiba's HDD innovation, the MG11 Series delivers new levels of capacity, performance, and quality. Packing up to 24 TB into a standard 3.5-inch conventional magnetic recording (CMR) HDD, the MG11 Series enables cloud-scale infrastructure to build higher storage densities at lower TCO. The MG11 Series features up to a 10-disk helium-sealed 3.5-inch design, which leverages Toshiba's innovative Flux Control Microwave Assisted Magnetic Recording (FC-MAMR™) technology to achieve 2.4 TB per disk.

Built to meet growing data storage demands, the MG11 Series has a high workload rating of 550 TB with 7200 rpm, and is available in 6 Gbps SATA and 12 Gbps SAS interfaces. Engineered for 24/7 quality and enterprise reliability, the MG11 Series has an MTTF of 2.5 million hours. SED and SIE options are available to secure data and deliver peace of mind. In addition to 24 TB, the MG11 is available in 22 TB, 20 TB, 18 TB, 16 TB, and 14 TB in both SAS and SATA interfaces with SIE and SED options.

KEY FEATURES

  • Up to 24 TB capacity
  • Conventional Magnetic Recording (CMR) for broad compatibility
  • Toshiba 2nd generation Flux Control Microwave-assisted Magnetic Recording (FC-MAMR™) Technology
  • Industry-leading 10-disk helium-sealed design for superior storage density
  • Industry Standard 3.5-inch 26.1mm height Form Factor
  • 7200 rpm Performance
  • Choice of SATA 6.0 Gbit/s and 12.0 Gbit/s SAS Interfaces
  • Lower operational power profile, providing excellent power efficiency (W/TB) for better TCO
  • 550 Total TB Transferred per Year Workload Rating
  • 512e or 4Kn Advanced Format Sector Technology; (512e Model) Includes Toshiba Persistent Write Cache Technology for Data-Loss Protection in Sudden Power-Loss Events
  • Sustained transfer rate and power efficiency improvements vs. prior MG Series generations
  • Sanitize Instant Erase (SIE) option model and Self Encrypting Drive (SED) option model

APPLICATIONS

  • Data Center Applications
  • Big Data
  • Video Surveillance
  • Capacity-Optimized Cloud-scale and Rack-Scale Storage Systems
  • Compliance Data Archives and Data Life-Cycle Management Storage Systems
  • Data Back-up Infrastructure

Compatibility

This drive is compatible with servers and arrays that accept 3.5in x 1.0in SAS drives

Specifications

TOSHIBA MG11 SERIES CLOUD-SCALE CAPACITY HDD
Model NumberMG11SCP24TE
SPECIFICATIONS
Sector Size512 emulation (512e)
InterfaceSAS-3 (12.0 Gb/s)
Formatted Capacity24 TB / 24,000 GB
Security / EncryptionSelf-Encrypting Drive (SED) supporting TCG Enterprise SSCs
Performance

Interface Speed

  • 12.0 Gbit/s

Rotation Speed

  • 7,200 RPM

Buffer Size

  • 1 GiB

Maximum Sustained Data Transfer Speed (Typ.)

  • 295 MiB/s
Logical Data Block Length

Default: 512e

  • Host: 512 B, Disk: 4,096 B

Also supports 520 B / 4,160 B and 528 B / 4,224 B

Supply Voltage
  • 12 V ± 10%
  • 5 V +10% / -7%
Power Consumption

Read / Write (Typ.)

  • Approx. 7.41 W – 8.11 W (4KB Q1)

Active Idle (Typ.)

  • 4.22 W
Acoustics

Active Idle (Typ.)

  • 20 dB

Seek (Typ.)

  • 32 dB
ENVIRONMENTAL LIMITS
Ambient Temperature

Operating

  • 5°C to 55°C

Non-Operating

  • -40°C to 70°C
Relative Humidity

Operating

  • 5% to 90% R.H. (no condensation)

Non-Operating

  • 5% to 95% R.H. (no condensation)
Altitude

Operating

  • -305 m to 3,048 m

Non-Operating

  • -305 m to 12,192 m
Shock

Operating

  • 70 G (2 ms duration)

Non-Operating

  • 250 G (2 ms duration)
Vibration

Operating

  • 0.75 G (5–300 Hz)
  • 0.25 G (300–500 Hz)

Non-Operating

  • 3.0 G (5–500 Hz)
RELIABILITY
MTTF2,500,000 hours
Non-recoverable Error Rate10 errors per 1016 bits read
Load / Unload Cycles600,000 times
Availability24 hours/day, 7 days/week
Rated Annual Workload550 TB transferred per year
MECHANICAL SPECIFICATIONS
Width (Max)101.85 mm
Height (Max)26.1 mm
Length (Max)147.0 mm
Weight (Max)730 g (approx. 1.61 lbs)
Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 1.8 lb

Warranty: 5 Year Manufacturer
