Toshiba Part #/MPN: MK3261GSYN
DiscTech Item #: TOS-MK3261GSYN-RF-OE
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Capacity: 320GB
Speed: 7,200RPM
Interface Types: SATA
Form Factor: 2.5inx9mm Fits Most laptops
Sector Size: 512 / 512e
Average Seek Time: 12
Electrical Interface: SATA 300 - 3.0Gbps
On-Board Cache: 16MB

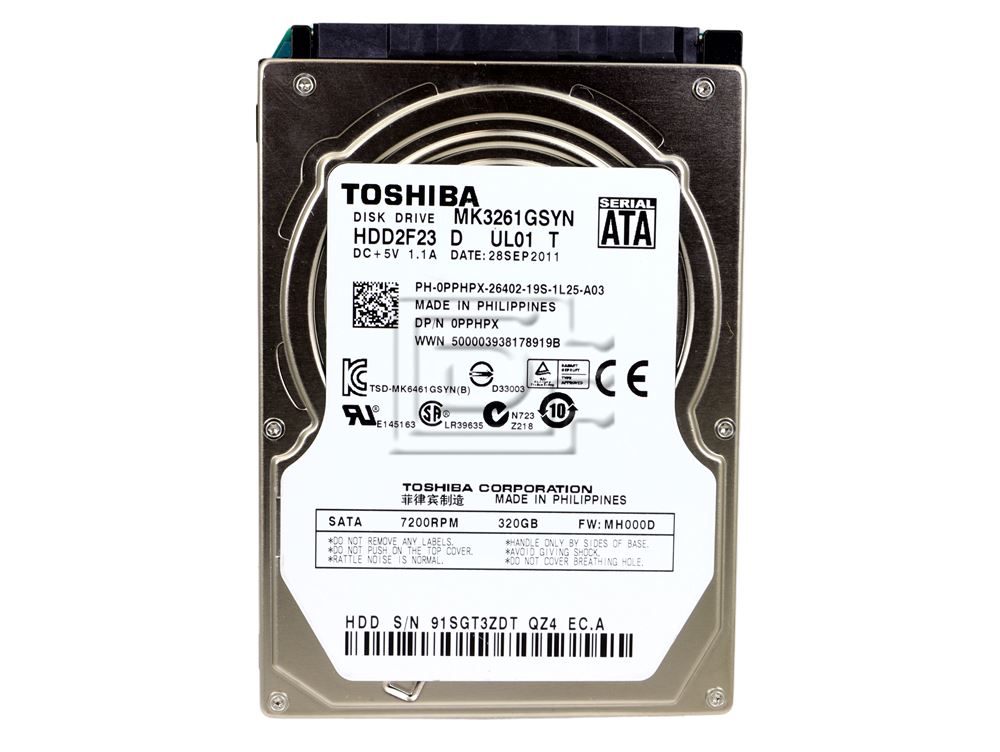

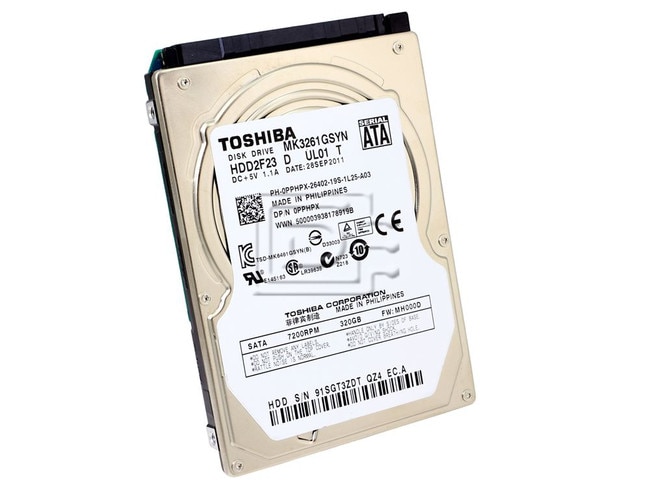

Toshiba MK3261GSYN 320GB 2.5in 3Gbps 7.2K RPM SATA HDD - Refurbished
Toshiba MK3261GSYN 320GB 2.5" 3.0 Gbps 7200 RPM Serial ATA Hard Disk Drive - Refurbished
7,200 RPM 2.5-Inch SATA Hard Disk Drives
High Performance and Lower Power Consumption Across Broad Line of Capacity Points
Designed for optimal performance and high durability, the Toshiba MKxx61GSYN series of 7,200 RPM hard disk drives deliver 160 to 640GB of storage capacity in the 2.5-inch form factor. The MKxx61GSYN family of Serial ATA drives offers extreme power efficiency and superior operating acoustics over 3.5-inch drives for today’s high-end notebook PCs, gaming laptops, and mobile workstations as well as Energy Star all-in-one and slim line desktop PCs.
Toshiba couples greater power efficiency of the MKxx61GSYN drives with other environmentally-conscious solutions including RoHS-compliance and utilization of components that reduce PVC (polyvinyl chloride) and BRs (brominated flame retardants) as well).
An optional free-fall sensor responds to drop events and securely locks the recording heads in place off the media before system impact. This provides as additional level of ruggedness and durability to the MKxx61GSYN drives and is particularly suitable for mobile applications.
- Up to 640GB of Storage Capacity
- Optimal Performance at 7,200 RPM
- Serial AVA 3.0 Gb/sec, Revision 2.6 / ATA-8
- 16MB Cache Buffer
- Optional Free-fall Sensor
Compatibility:
This drive is compatible with any server that accepts 2.5in x 9mm SATA drives.
| SALES OVERVIEW | |
|---|---|
| Model Number | MK3261GSYN |
| Drive Capacity | 320GB |
| Drive Interface | Seria ATA 3.0, Revision 2.6 / ATA-8 |
| Number of Platters (disks) | 1 |
| Number of Data Heads | 2 |
| RoHS Complaiant | Yes |
| Transfer Rate to Host | 3 Gb/sec |
| PERFORMANCE | |
| Track-to-Track Seek | 1 ms |
| Average Seek Time | 12 ms |
| Rotational Speed | 7,200 RPM |
| Average Latency | 4.16 ms |
| Buffer Size | 16 MB |
| POWER REQUIREMENTS | |
| Voltage | 5V(+/-5%) |
| Spin up (start) Power | 5.5 watts |
| Seek Power | 2.3 watts |
| Read/Write Power | 2.1 watts |
| Lower Power Idle | 0.8 watts |
| Standby Power | 0.16 watts |
| Sleep Power | 0.13 watts |
| PHYSICAL SIZE | |
| Dimensions (W) x (D) x (H) | 69.85 mm (2.75") x 100 mm (3.94") x 9.5 mm (0.37") |
| Weight | 98g (3.46 oz) |
| ENVIRONMENTAL | |
| Temp - Operating | 5° to 55°C (41° to 131°F) |
| Temp - Non-Operating | -40° to 60°C (-40° to 140°F) |
| Vibration - Operating | 9.8 m/s (1.0G) 5 to 500 Hz |
| Vibration - Non-Operating | 49 m/s (5.0G) 15 to 500 Hz |
| Shock - Operating | 3,185 m/s (325G) 2ms |
| Shock - Non-Operating | 8,820 m/s (900G) 1ms |
| ACOUSTICS | |
| Acoustics (idle) | 23 dB |
| Acoustics (Seek) | 23 dB |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 0.5 lb
Warranty: 1 Year DiscTech
Refurbished
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
