Toshiba MK4006GAH 40GB 1.8 PATA Hard Drives
- Brand NewCondition Levels Explained
The product is brand new.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
$30.00
| Capacity: | 40GB |
| Speed: | 4.2K RPM |
| Interface Types: | IDE ATA 1.8in ZIF |
| Form Factor: | 1.8" x 8mm |
| Electrical Interface: | EIDE Ultra ATA100 100MBps |
| RAM: | 2MB |
Description

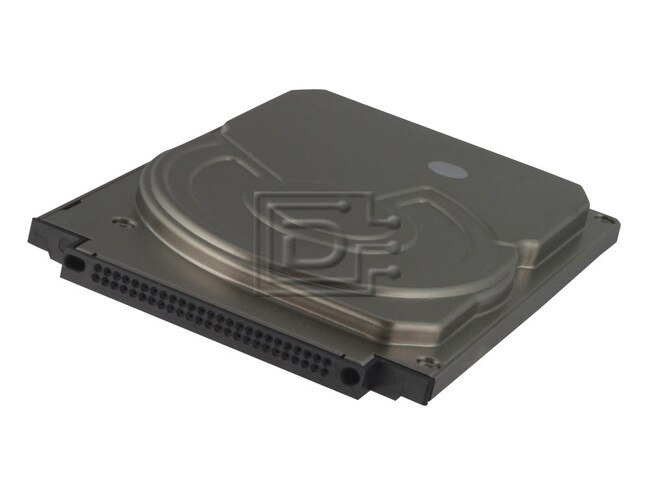

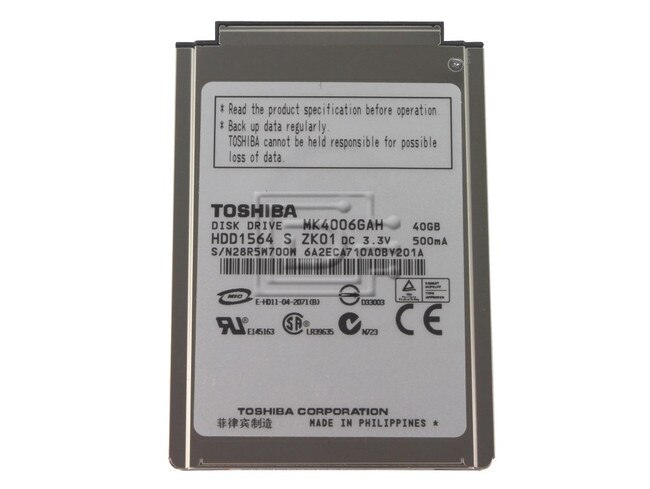

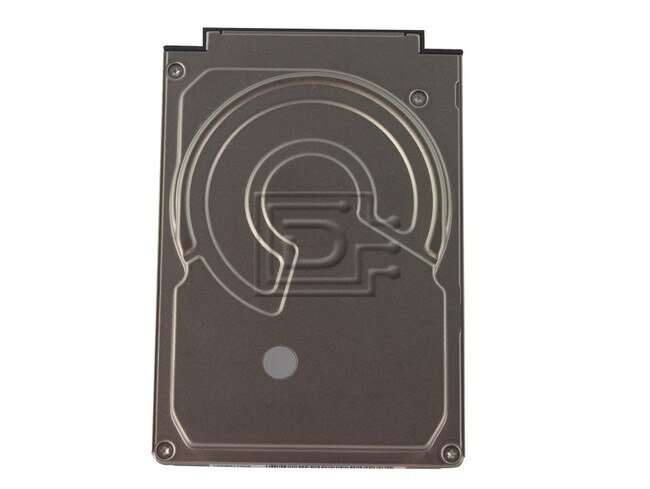

Toshiba MK4006GAH 40GB Mobile 4.2K 1.8" PATA Hard Drive - Brand New
This Toshiba 40GB hard disk drive is the size of a credit card and weighs only 62 grams. It is ideal for mobile storage solutions due to its ideal light weight, small form factor and tremendous capacity. The MK4006GAH is highly ruggedised and durable, with operating shock resistance of 250G, making it extremely suitable for demanding environments.Compatibility
Specifications
| Performance |
| Track-to-track Seek | 3ms | ||||
| Average Seek Time | 15ms | ||||
| Rotational Speed | 4,200 RPM | ||||
| Buffer Size | 2MB | ||||
| Power Requirements |
| Voltage | 3.3 V | ||||
| Seek Power | 1.1 watts | ||||
| Read/Write Power | 1.1 watts | ||||
| Active Idle Power | 0.12 watts | ||||
| Low Power Idle | 0.12watts | ||||
| Standby Power | 0.12 watts | ||||
| Sleep Power | 0.07 watts | ||||
| Physical Size |  |
| Dimensions (W) x (D) x (H) | 54 mm x 78.5 mm (3.94") x 8 mm (0.37") | ||||
| Weight | 62G (max) | ||||
| Environmental | |
| Temp - Operating | 5° to 60°C | ||||
| Temp - Non-Operating | -20° to 65°C | ||||
| Vibration - Operating | 2G, with 15-500Hz | ||||
| Vibration - Non-Operating | 5G, with 10-500Hz | ||||
| Shock - Operating | 500G | ||||
| Shock - Non-Operating | 1500G | ||||
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1 lb
Warranty: 1 Year DiscTech
Condition
Brand New
Warranty
1 Year DiscTech Warranty
