Toshiba Part #/MPN: MK8050GACY
DiscTech Item #: TOS-MK8050GACY-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Capacity: 80GB
Speed: 4,200RPM
Interface Types: IDE ATA 2.5in IDC44M for laptop
Form Factor: 2.5inx9mm Fits Most laptops
Sector Size: 512 / 512e
Average Seek Time: 12
Electrical Interface: EIDE Ultra ATA100 100MBps
On-Board Cache: 16MB

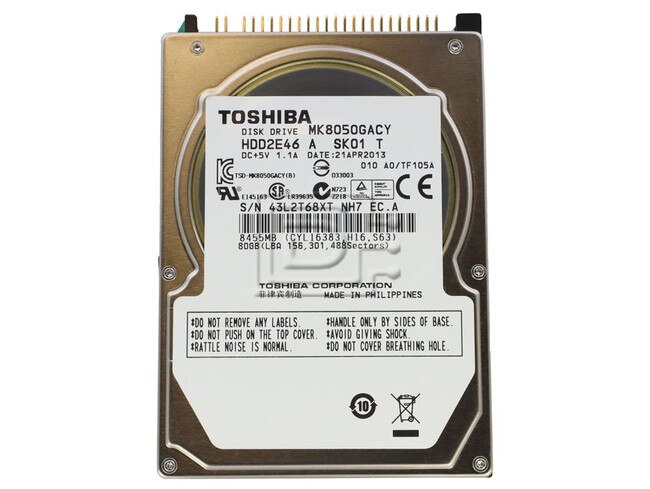

Toshiba MK8050GACY 2.5" 80GB 4200RPM ATA / PATA / IDE / EIDE 100 - Brand New
Toshiba MK8050GACY 2.5" 80GB 4200RPM ATA / PATA / IDE / EIDE 100 - Brand New
Providing capacious storage in a slim form factor, Toshiba's 80GB 2.5" hard disk drive is an ideal solution for mobile computing and consumer electronics. With an areal density of 64.8 gigabits per square inch and a super slim package measuring 9.5mm high, Toshiba's MK8025GACY hard disk drive accommodates the storage needs of multi-functional mobile PCs and other applications, such as telecommunications products, printers, copiers, GPS systems and MP3 players.
| Data Storage Physical: | |
|---|---|
| Per drive, formatted* | 80.012GB |
| Data Heads | 4 |
| Number of Disks | 2 |
| Logical Configuration: | |
| Heads | 16 |
| Cylinders | 16,383 |
| User Sectors/Track at zone 0 | 63 |
| Logical Blocks (LBA) | 156,301,488 |
| Data Transfer Rate: | |
| Max transfer rate to host | 100 Mb/sec |
| Seek Time: | |
| Track-to-track | 2ms |
| Average | 12ms |
| Maximum | 22ms |
| Nominal Power Requirements: | |
| Logic | +5V(±5%) |
| Start | 5.0watts (max) |
| Seeking | 2.9watts (typ) |
| Reading/Writing | 2.5watts (typ) |
| Idle | 1.05watts (typ) |
| Standby | 0.25watts (typ) |
| Sleep | 0.1watts (typ) |
| Other: | |
| Rotational Speed | 4,200rpm |
| Average Latency | 5.55ms |
| Interface | ATA-2/3/4/5/6 |
| Buffer | 16MB |
| Physical & Environmental Specs | |
| Dimensions/Weight: | |
| Height | 0.37" (9.5mm) |
| Width | 2.75" (69.85mm) |
| Depth | 3.94" (100mm) |
| Weight: | 3.56 oz (101g) |
| Ambient Temperature: | |
| Operating | 41° - 131°F (5 to 55°C) |
| Non-Operating | -4° - 140°F (-20 to 60°C) |
| Shipping | -40° - 158°F (-40 to 70°C) |
| Vibration and Shock: | |
| Operating Vibration | 9.8 m/s2 (1.0G), 5 - 500 Hz |
| Operating Shock | 200g |
| Non-Operating Shock | 800g |
| Reliability Characteristics | |
| Error Rates: | |
| Non-recoverable | 1 in 1013 bits |
| Seek | 1 in 106 seeks |
| Other: | |
| Preventive Maintenance | None |
| MTTF (Power on hours) | 300,000 |
| Product Life | 5 years or 20,000 power ON hours |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 0.5 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
