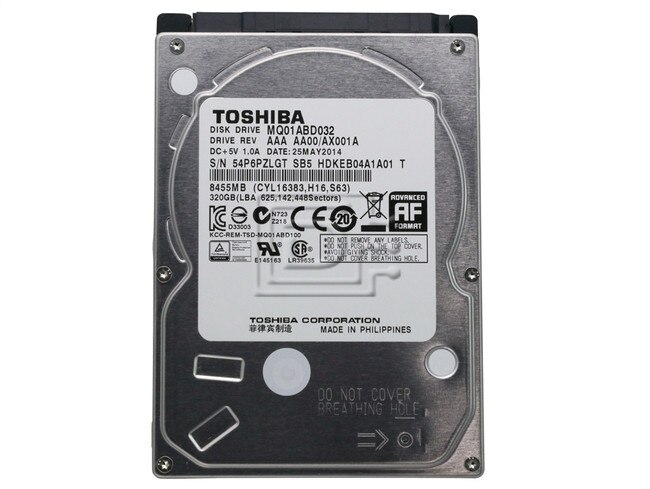

Toshiba Part #/MPN: MQ01ABD032
DiscTech Item #: TOS-MQ01ABD032-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Capacity: 320GB
Speed: 5,400RPM
Interface Types: SATA
Form Factor: 2.5inx9mm Fits Most laptops
Sector Size: 512 / 512e
Average Seek Time: 12
Electrical Interface: SATA 300 - 3.0Gbps
On-Board Cache: 8MB
Toshiba MQ01ABD032 / HDKEB04 320GB 2.5in 3Gbps 5.4K RPM AF512e SATA HDD - Brand New
Toshiba MQ01ABD032 2.5" 3.0 Gb/s 5400 RPM Advanced Format 512 Emulation Serial Attached Technology Attachment Hard Disk Drive - Brand New
2.5-Inch SATA Hard Disk Drives
Capacity and power efficiency for data-intensive and energy-sensitive applications
Toshiba MQ01ABD series offers capacity up to 1TB using 500GB per platter technology. At 744.1Gb/in, the MQ01ABD hard disk drives deliver state-of-the-art storage solution with higher performance than engineered for superior energy efficiency and offers improved acoustic performance at a maximum of 19dB in idle mode and 24dB during seek operation. This combination of areal density, power efficiency and acoustic performance enables PC an d consumer electronics makers to build differentiated systems based on capacity, performance, heat dissipation, and power utilization.
The MQ01ABD drive series continues Toshiba Corporation’s global commitment to design, develop, manufacture, and distribute Environmentally Conscious Products (ECPs) with minimal environmental impact. As part of this voluntary initiative, Toshiba has reduced or eliminated additional hazardous substances in the MQ01ABD drives.
The MQ01ABD series is ideal for notebooks and desktop PCs, mobile workstations, gaming consoles, DVR set-top boxes, external storage solutions and other applications requiring high-capacity, durability and cost –effective storage.
- Up to 1,000GB of Storage Capacity
- 5,400 RPM Rotational Speed
- Advanced Format 542e
- Eco-Conscious Design
- MTTF of 600,000 Hours
Alt Model Number: HDKEB04
Compatibility:
This drive is compatible with any server that accepts 2.5"x9mm laptop SATA Drives.
| 2.5-Inch SATA Hard DisK Drives | ||
|---|---|---|
| Model/Part No. | MQ01ABD032 | |
| Alt Model No. | HDKEB04 | |
| Series Overview | ||
| Drive Capacity | 320GB | |
| Drive Interface | Serial ATA, Revision 2.6 / ATA-8 | |
| Number of Platter (disks) | 1 | |
| Nuber of Data Heads | 2 | |
| Sector Size (bytes) | AF 512e | |
| Transfer Rate Host | 3 Gb/sec | |
| RoHS Compliant | Yes | |
| Performance | ||
| Areal Density (max) | 744.1 Gb/in | |
| Track-to-track Seek | 2 ms | |
| Average Seek Time | 12 ms | |
| Rotational Speed | 5,400 RPM | |
| Average Latency | 5.55 ms | |
| Buffer Size | 8 MB | |
| Power Requirements | ||
| Voltage | 5V(+/-5%) | |
| Spin up (start) Power | 4.5 watts | |
| Seek Power | 1.85 watts | |
| Read/Write Power | 1.5 watts | |
| Low Power Idle | 0.55 watts | |
| Standby Power | 0.18 watts | |
| Sleep Power | 0.15 watts | |
| Physical Size | ||
| Weight | 125gm | |
| Form Factor | 2.5" 15mm | |
| Dimensions (W x D x H) | 69.85mm (2.75") x 100.0mm (3.94") x 9.5mm (0.37") | |
| Weight | 102g (3.60 oz) | |
| Environmental | ||
| Temp - Operating | 5° to 55°C (41° - 131°F) | |
| Temp - Non-Operating | -40° to 60°C (-40° - -140°F) | |
| Vibration - Operating | 9.8 m/s (1.0G) 5 to 500 Hz | |
| Vibration - Non-Operating | 49 m/s (5.0G) 15 to 500 Hz | |
| Shock - Operating | 3,920 m/s (400G) 2ms | |
| Shock - Non-Operating | 8,820 m/s (900G) 1ms Hz | |
| Acoustics | ||
| Acoustics (idle) | 17dB | |
| Acoustics (seek) | 23dB | |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: HDKEB04
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
