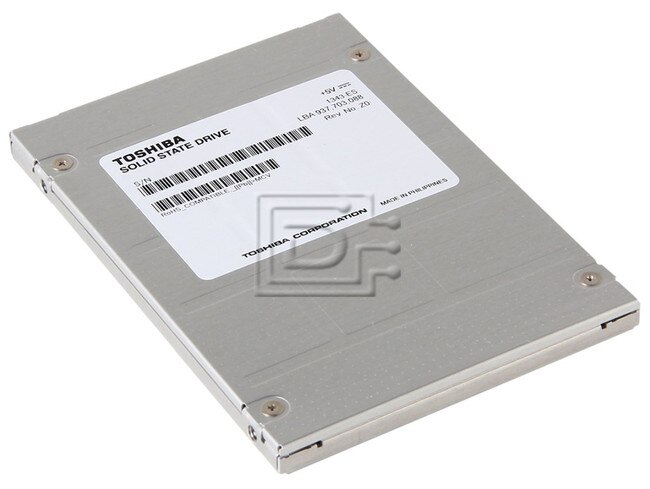

Toshiba PX02SSU010 100GB SAS eSSD

Toshiba Part #/MPN: PX02SSU010

DiscTech Item #: TOS-PX02SSU010-BN-5Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Enterprise Grade

Capacity: 100GB

Speed: Solid State Memory

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx7mm Fits All laptops

Encryption/SED Supported

Sector Size: 512 / 512e

Sustained Throughput: 910/410

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps


SSD Endurance DWPD: Enterprise Mixed Use

Voltage: 12V

Toshiba PX02SSU010 100GB 2.5in 12Gbps Write Intensive 30-DWPD MLC SAS eSSD - Brand New

Toshiba PX02SSU010 100GB 2.5" 12.0 Gb/s Write Intensive 30 Drive Writes Per Day Multi-Level Cell Enterprise Serial Attached SCSI Solid State Disk Drive - Brand New

Enterprise High Endurance SSD
The PX02SS Enterprise SSD series is optimized for use in mission-critical server and storage platforms requiring high endurance from write-intensive applications such as write caching, acceleration and OLTP (On-Line Transaction Process) servers. The PX02SS series features MLC NAND flash memory in capacities of 100, 200, 400 and 800 GB, all with a 12 Gbit/s SAS interface. The drive achieves random write speeds up to 42,000 IOPS, random read speeds of up to 130,000 IOPS and increases eSSD endurance capability to 30 DWPD (Drive Write Per Day).

Optional features: PX02SSQ/U series supports self-encryption which may help IT professionals protect data from unintended data disclosure when drives or storage systems are re-purposed, retired from service, or otherwise moved outside the physical security of the data center environment.

Toshiba’s TCG SED option (PX02SSQ/U) is designed according to the Trusted Computing Group (TCG) industry-standard Enterprise Security Sub-Classification (SSC), and provides for both access security and full-disk encryption with SIE (Sanitize Instant Erase) capability.

Key Features

  • Up to 800 GB Storage Capacity
  • 30 DWPD (Drive Write Per Day)
  • MLC NAND Flash Memory
  • Dual-Port 12 Gbit/s SAS Interface
  • Power Loss Protection
  • Quadruple Swing-By Code Technology (QSBC)
  • Self Encryption and SIE (Sanitize Instant Erase) Function

  • High-Performance Enterprise Storage Systems
  • On-Line Transaction Processing (OLTP) Databases
  • High Performance Computing (HPC)
  • Big Data Analytics
  • Write-Caching
  • Financial and e-Commerce


This drive is compatible with laptops that accept 2.5" x 7mm (Thin/Case) SAS drives.

Enterprise High Endurance SSD
Model NumberPX02SSU010
Basic Specifications
Interface Speed12.0 Gbit/s, 6.0 Gbit/s, 1.5 Gbit/s
Memory TypeMLC
Formatted Capacity100GB
Sustained 64Kib Sequential Write (12.0 Gbit/ Dual Port)910 MiB/s
Sustained Sequential Write (12.0 Gbit/s Dual Port)410 MiB/s
Sustained 4KiB Random Read (12.0 Gbit/s Dual Port)1300,000 IOPS
Sustained 4KiB Random Write (12.0 Gbit/s Dual Port)42,000 IOPS
MTTF2,000,000 hours
Power Requirements
Supply Voltage5 V ±5 %
12 V ±5 %
Power Consumption (Ready)2.7 W Typ
Height7.0 mm
+0, -0.5 mm
Width69.85 ±0.25 mm
Length100.45 mm Max.
Weight170 g Max
Environmental Specifications
Temperature (Operating)0 to 55°C
Relative Humidity(Operating)5% to 95%RH
Vibraton (Operating)21.27 m/s{2.17 Grms}(5 to 800 Hz)
Shock (Operating)9,800 m/s{1,000G}(0.5 ms durarion)

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 0.7 lb

Warranty: 5 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

5 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
