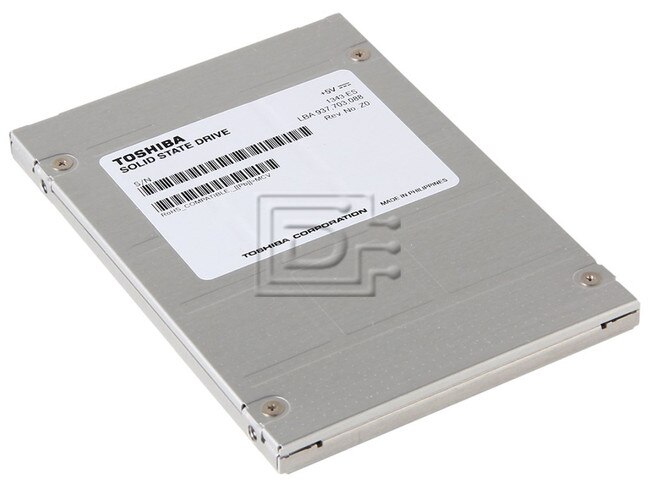

Toshiba PX02SSU020 200GB SAS eSSD
| Capacity: | 200GB |
| Speed: | Solid State |
| Interface Types: | SAS |
| Form Factor: | 2.5" x 7mm Fits All laptops |
| SSD Endurance DWPD: | Enterprise Write Intensive / WI |
| Electrical Interface: | SAS-3 12Gbps |
Description
Toshiba PX02SSU020 200GB 2.5in 12Gbps Write Intensive 30-DWPD MLC SAS eSSD - Brand New
Toshiba PX02SSU020 200GB 2.5" 12.0 Gb/s Write Intensive 30-Drive Write Per Day Multi-Level Cell Enterprise Serial Attacted SCSI Solid State Disk Drive - Brand New
Enterprise High Endurance SSD
The PX02SS Enterprise SSD series is optimized for use in mission-critical server and storage platforms requiring high endurance from write-intensive applications such as write caching, acceleration and OLTP (On-Line Transaction Process) servers. The PX02SS series features MLC NAND flash memory in capacities of 100, 200, 400 and 800 GB, all with a 12 Gbit/s SAS interface. The drive achieves random write speeds up to 42,000 IOPS, random read speeds of up to 130,000 IOPS and increases eSSD endurance capability to 30 DWPD (Drive Write Per Day).
Optional features: PX02SSQ/U series supports self-encryption which may help IT professionals protect data from unintended data disclosure when drives or storage systems are re-purposed, retired from service, or otherwise moved outside the physical security of the data center environment.
Toshiba’s TCG SED option (PX02SSQ/U) is designed according to the Trusted Computing Group (TCG) industry-standard Enterprise Security Sub-Classification (SSC), and provides for both access security and full-disk encryption with SIE (Sanitize Instant Erase) capability.
Key Features
- Up to 800 GB Storage Capacity
- 30 DWPD (Drive Write Per Day)
- MLC NAND Flash Memory
- Dual-Port 12 Gbit/s SAS Interface
- Power Loss Protection
- Quadruple Swing-By Code Technology (QSBC)
- Self Encryption and SIE (Sanitize Instant Erase) Function
- High-Performance Enterprise Storage Systems
- On-Line Transaction Processing (OLTP) Databases
- High Performance Computing (HPC)
- Big Data Analytics
- Write-Caching
- Financial and e-Commerce
Compatibility:
This drive is compatible with laptops that accept 2.5" x 7mm (Thin/Case) SAS drives.Specifications
| Enterprise High Endurance SSD | |
|---|---|
| Model Number | PX02SSU020 |
| Basic Specifications | |
| Interface | SAS-3.0 |
| Interface Speed | 12.0 Gbit/s, 6.0 Gbit/s, 1.5 Gbit/s |
| Memory Type | MLC |
| Formatted Capacity | 200GB |
| Sustained 64Kib Sequential Write (12.0 Gbit/ Dual Port) | 910 MiB/s |
| Sustained Sequential Write (12.0 Gbit/s Dual Port) | 410 MiB/s |
| Sustained 4KiB Random Read (12.0 Gbit/s Dual Port) | 1300,000 IOPS |
| Sustained 4KiB Random Write (12.0 Gbit/s Dual Port) | 42,000 IOPS |
| Reliability | |
| MTTF | 2,000,000 hours |
| DWPD | 30 |
| Power Requirements | |
| Supply Voltage | 5 V ±5 % 12 V ±5 % |
| Power Consumption (Ready) | 2.7 W Typ |
| Dimensions | |
| Height | 7.0 mm +0, -0.5 mm |
| Width | 69.85 ±0.25 mm |
| Length | 100.45 mm Max. |
| Weight | 170 g Max |
| Environmental Specifications | |
| Temperature (Operating) | 0 to 55°C |
| Relative Humidity(Operating) | 5% to 95%RH |
| Vibraton (Operating) | 21.27 m/s{2.17 Grms}(5 to 800 Hz) |
| Shock (Operating) | 9,800 m/s{1,000G}(0.5 ms durarion) |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 0.7 lb
Warranty: 5 Year Manufacturer
Condition
Brand New
Warranty
5 Year Manufacturer Warranty
