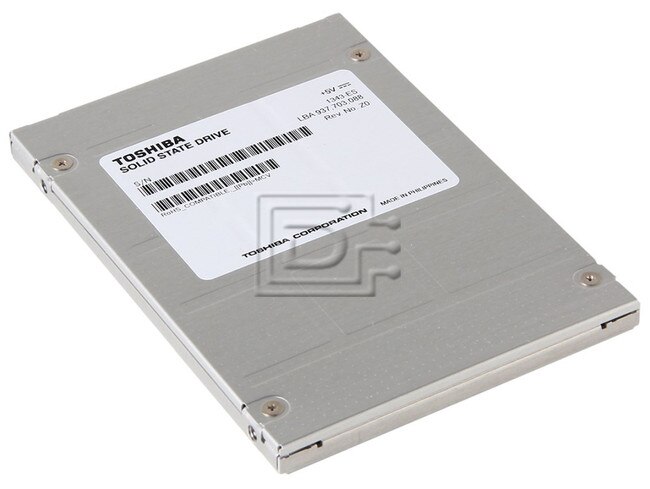

Toshiba PX03SNF020 200GB SAS SSD

- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 5 Year ManufacturerWarrantyProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
| Capacity: | 200GB |
| Speed: | Solid State |
| Interface Types: | SAS |
| Form Factor: | 2.5" x 7mm Fits All laptops |
| SSD Endurance DWPD: | Enterprise Read Intensive / RI |
| Electrical Interface: | SAS-3 12Gbps |
Description
Toshiba PX03SNF020 200GB 2.5in Phoenix M2R 12Gbps Read-Intensive 1-DWPD SAS eSSD - Brand New
Toshiba PX03SNF020 200GB 2.5" Phoenix M2R 12.0 Gbps Serial Attached SCSI Enterprise Read-Intensive 1-DWPD Solid State Disk Drive - Brand New
Alt MPN: SDFCQ03GEA01
Read-intensive 2.5" SAS Enterprise SSD optimized for light-duty storage and read-caching applications; featuring
- 12Gb SAS and industry standard self-encrypting technology.
- 19nm MLC NAND Process
- 12 Gb/sec SAS Interface & 6 Gb/sec SAS Interface
- Quadruple Swing by Code, Layered ECC Approach for Improved Error Correction
- Power Loss Protection
Compatibility
This drive is compatible with any server that accepts 2.5" x 7mm Thin Case SAS hard drives.
Specifications
| Drive Model | PX03SNF020 |
|---|---|
| Capacity | 200GB |
| Performance | |
| Interface Type | SAS |
| Interface Speed(MBps) | 1500 (12Gbps) |
| 4KiB Random Read (Sustained) | 130,000IOPS |
| 4Kib Random Write (Sustained) | 26,000IOPS |
| 4Kib Random 70/30 Read/Write (Sustained) | 63,000IOPS |
| 64Kib Sequential Read (Sustained) | 1100 MiB/s 910MiB/s |
| 64Kib Sequential Write (Sustained) | 380 MiB/s |
| MTTF (hours) | 2,000,000 |
| Power Requirements | |
| Voltage | 5V (+/- 5%), 12V (+/- 5%) |
| Power Consumption | 2.7 W Typ. |
| Energy Consumption Efficiency | 24,400 IOPS/W |
| Physical | |
| Height (in/mm) | 0.28/7.0 |
| Width (in/mm) | 2.75/69.85 |
| Depth (in/mm) | 3.95/100.45 |
| Weight (lb/g) | 0.15/70 |
| Enviromental | |
| Temp - Operating | 0° to 55°C |
| Temp - Non-Operating | -40° to 70°C |
| Vibration Operating | 21.27 m/s² |
| Vibration - Non-Operating | 159.74 m/s² |
| Shock - Operating | 9,800 m/s² (1,000G 0.5ms, ½ sine) |
| Shock - Non-Operating | 9,800 m/s² (1,000G 0.5ms, ½ sine) |
| Reliability | |
| Operation Condition (hrs x days) | 24x7 |
| Total Bytes Written | 365 TB |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: SDFCQ03GEA01
Weight: 1.8 lb
Warranty: 5 Year Manufacturer
Condition
The product is brand new.
Warranty
5 Year Manufacturer Warranty
