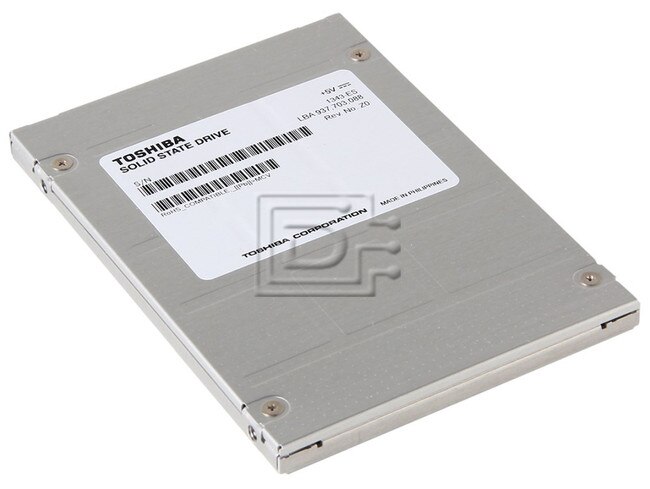

Toshiba PX03SNF040 400GB SAS eSSD

  • Low Stock:Call for ETA
$1,150.00

Capacity:400GB
Speed:Solid State
Interface Types:SAS
Form Factor:2.5" x 7mm Fits All laptops
SSD Endurance DWPD:Enterprise Read Intensive / RI
Electrical Interface:SAS-3 12Gbps
Click to see more 400GB SAS Solid State Drives

Description

Toshiba PX03SNF040 400GB 2.5in Phoenix M2R 12Gbps Read-Intensive 1-DWPD SAS eSSD - Brand New

Toshiba PX03SNF040 400GB 2.5" Phoenix M2R 12.0 Gbps Serial Aattached SCIS Enterprise Read-Intensive 1-DWPD Solid State Disk Drive - Brand New

Read-intensive 2.5" SAS Enterprise SSD optimized for light-duty storage and read-caching applications; featuring

  • 12Gb SAS and industry standard self-encrypting technology.
  • 19nm MLC NAND Process
  • 12 Gb/sec SAS Interface & 6 Gb/sec SAS Interface
  • Quadruple Swing by Code, Layered ECC Approach for Improved Error Correction
  • Power Loss Protection

Compatibility

This drive is compatible with any server that accepts small form factor (SFF) SAS hard drives

Specifications

Drive ModelPX03SNF040
Capacity400GB
Performance
Interface TypeSAS
Interface Speed(MBps)1500 (12Gbps)
4KiB Random Read (Sustained)130,000IOPS
4Kib Random Write (Sustained)26,000IOPS
4Kib Random 70/30 Read/Write (Sustained)63,000IOPS
64Kib Sequential Read (Sustained)1100 MiB/s 910MiB/s
64Kib Sequential Write (Sustained)380 MiB/s
MTTF (hours)2,000,000
Power Requirements
Voltage5V (+/- 5%), 12V (+/- 5%)
Power Consumption2.7 W Typ.
Energy Consumption Efficiency24,400 IOPS/W
Physical
Height (in/mm)0.28/7.0
Width (in/mm)2.75/69.85
Depth (in/mm)3.95/100.45
Weight (lb/g)0.15/70
Enviromental
Temp - Operating0° to 55°C
Temp - Non-Operating-40° to 70°C
Vibration Operating21.27 m/s²
Vibration - Non-Operating159.74 m/s²
Shock - Operating9,800 m/s² (1,000G 0.5ms, ½ sine)
Shock - Non-Operating9,800 m/s² (1,000G 0.5ms, ½ sine)
Reliability
Operation Condition (hrs x days)24x7
Total Bytes Written 730 TB

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 1.8 lb

Warranty: 5 Year Manufacturer
