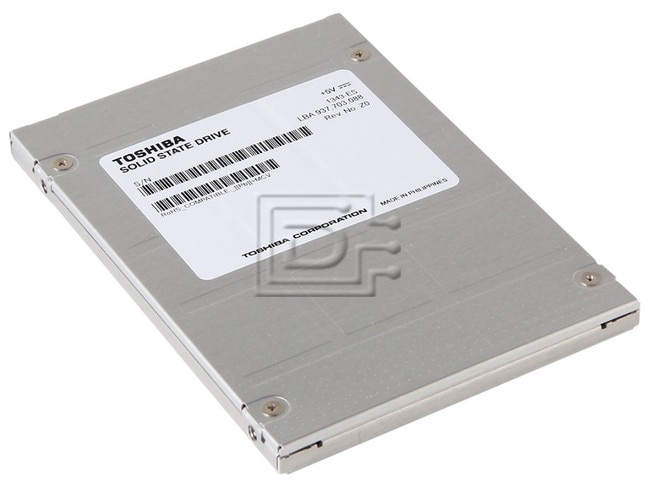

Toshiba PX03SNU080 800GB SAS eSSD
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 5 Year ManufacturerWarrantyProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
| Capacity: | 800GB |
| Speed: | Solid State |
| Interface Types: | SAS |
| Form Factor: | 2.5" x 7mm Fits All laptops |
| SSD Endurance DWPD: | Enterprise Read Intensive / RI |
| Electrical Interface: | SAS-3 12Gbps |
Description
Toshiba PX03SNU080 800GB 2.5in 12Gbps Read Intensive 1-DWPD MLC SAS eSSD - Brand New
Toshiba PX03SNU080 800GB 2.5" 12.0 Gb/s Read Intensive 1 Drive Write Per Day Multi-Level Cell Serial Attached SCSI Enterprise Solid State Disk Drive - Brand New
Enterprise Read Intensive SSD
The PX03SN series is optimized for read-intensive, and low-write-duty applications in server and storage systems and features a 12 Gbit/s SAS interface. The eSSDs are available with capacities of 200, 400, 800 GB as well as 1.6 TB, built with MLC NAND flas memory and support 1 DWPD (Drive Write Per Day) with a random data, 4KiB workload. The drives deliver random write speeds up to 26,000 IOPS and random read speeds up to 130,000 IOPS. The PX03SN series offers high performance enterprise-class solid-state storage suitable for cost sensitive and read-intensive applications characterized with infrequent write operations or predominantly large block & sequential data pattern workloads.
Optional features: PX03SNQ/U series supports self-encryption which may help IT professionals protect data from unintended data disclosure when drives or storage systems are re-purposed, retired from service, or otherwise moved outside the physical security of the data center environment.
Toshiba’s TCG SED option (PX03SNQ/U) is designed to the Trusted Computing Group (TCG) industry-standard “Enterprise” Security Sub-Classification (SSC), and provides for both access security and full-disk encryption with SIE (Sanitize Instant Erase) capability.
Key Features
- Up to 1.6 TB Storage Capacity
- MLC NAND Flash Memory
- Dual-Port 12 Gbit/s SAS Interface
- Power Loss Protection
- Quadruple Swing by Code Technology (QSBC)
- Self Encrypting and SIE (Sanitize Instant Erase) Function
Application
- High-Performance Enterprise Storage
- Cloud Computing
- Data Warehousing
- Media Streaming & VOD (Video on Demand)
- File Servers
- Web-based Applications
Compatibility
Specifications
| Enterprise Read Intensive SSD | |
|---|---|
| Model Number | PX03SNU080 |
| Basic Specifications | |
| Interface | SAS-3.0 |
| Interface Speed | 12.0 Gbit/s, 6.0 Gbit/s, 1.5 Gbit/s |
| Memory Type | MLC |
| Formatted Capacity | 800GB |
| Sustained 64Kib Sequential Write (12.0 Gbit/ Dual Port) | 910 MiB/s |
| Sustained Sequential Write (12.0 Gbit/s Dual Port) | 380 MiB/s |
| Sustained 4KiB Random Read (12.0 Gbit/s Dual Port) | 130,000 IOPS |
| Sustained 4KiB Random Write (12.0 Gbit/s Dual Port) | 26,000 IOPS |
| Reliability | |
| MTTF | 2,000,000 hours |
| DWPD | 1 |
| Power Requirements | |
| Supply Voltage | 5 V ±5 % 12 V ±5 % |
| Power Consumption (Ready) | 2.7 W Typ |
| Dimensions | |
| Height | 7.0 mm +0, -0.5 mm |
| Width | 69.85 ±0.25 mm |
| Length | 100.45 mm Max. |
| Weight | 70 g Max |
| Environmental Specifications | |
| Temperature (Operating) | 0 to 55°C |
| Relative Humidity(Operating) | 5% to 95%RH |
| Vibraton (Operating) | 21.27 m/s{2.17 Grms}(5 to 800 Hz) |
| Shock (Operating) | 9,800 m/s{1,000G}(0.5 ms durarion) |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 0.5 lb
Warranty: 5 Year Manufacturer
Condition
The product is brand new.
Warranty
5 Year Manufacturer Warranty
