Toshiba Part #/MPN: PX04PMB080
DiscTech Item #: TOS-PX04PMB080-BN-5Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:5 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 800GB
Speed: Solid State Memory
Interface Types: PCIe
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Sustained Throughput: 3100/2850
Electrical Interface: PCIe - v3.0 - 16GBps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Mixed Use
Wattage/VA: 6W
Voltage: 12V

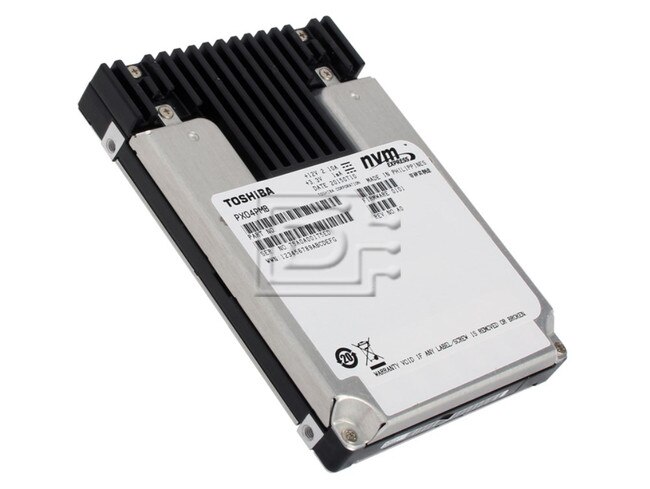

Toshiba PX04PMB080 800GB 2.5in 32GTps Mid Endurance 10-DWPD MLC PCIe / PCi Express 3.0 eSSD - Brand New
Toshiba PX04PMB080 800GB 2.5" 32 GT/s Mid Endurance 10 Drive Writes Per Day Multi-Level Cell Peripheral Component Interconnect Express 3.0 Enterprise Solid State Disk Drive - Brand New
Enterprise Mid Endurance SSD
The PX04PMB Series is a high-performance NVMe SSD optimized for a broad set of enterprise workloads. Applications such as web-server, SQL server, and high-transaction / trading (OLTP) can benefit from the PX04P Series balance of endurance, capacity, performance, and reliability. The PX04P Series was also designed for environments where power requirements are a premium, requiring only 18.5W for maximum active performance and maximizing the power to performance (Watt per IOPs and Watt per MiB/s) ratio compared to similar 25W NVMe SSD solutions.
The PX04P delivers excellent performance on sequential reads, up to 3,100 MiB/s and sequential writes up to 2,350 MiB/s. For random workloads, speeds of up to 660k IOPs for random reads and 185k IOPs are achievable depending on the drive’s capacity.
The Enterprise Mid Endurance PX04P supports 10DWPD (Drive Writes Per Day) and is designed for write-intensive applications such as cache writes, data backup, and OLTP
Key Features
- Up to 3.2TB Storage Capacity
- 2.5-type form factor, 15 mm Z-height
- 10 DWPD with 100% Random Workload
- Up to 660k IOPs random read
- Power Loss Protection
- 18.5W Active Power Consumption
Key Applications
- JBOF (Just a bunch of flash)
- Web server
- HPC
- OLTPD
- Media Streaming
Compatibility:
This drive is compatible with any server that accepts 2.5in x 15mm (SFF) PCIe drives.
| Enterprise Mid Endurance SSD | |
|---|---|
| Model Number | PX04PMB080 |
| Basic Specifications | |
| Interface | PCI Express 3.0 |
| Interface Speed | 32 GT/s (Gen3 x4) |
| Memory Type | MLC |
| Formatted Capacity | 800GB |
| Sustained 128Kib Sequential Write (Up to) | 3,100 MiB/s |
| Sustained 128Kib Sequential Write (Up to) | 2,350 MiB/s |
| Sustained 4KiB Random Read (Up to) | 660,000 IOPS |
| Sustained 4KiB Random Write (Up to) | 185,000 IOPS |
| Reliability | |
| MTTF | 2,000,000 hours |
| DWPD | 10 (fixed) |
| Power Requirements | |
| Supply Voltage | 3.3 V ±9 % (Standby) 12 V ±10 % |
| Power Consumption (Ready) | 6 W Typ |
| Dimensions | |
| Height | 15.0 mm +0, -0.5 mm |
| Width | 69.85 ±0.25 mm |
| Length | 100.45 mm Max. |
| Weight | 150 g Max |
| Environmental Specifications | |
| Temperature (Operating) | 0 to 40°C |
| Relative Humidity(Operating) | 5% to 95%RH |
| Vibraton (Operating) | 21.27 m/s{2.17 Grms}(5 to 800 Hz) |
| Shock (Operating) | 9,800 m/s{1,000G}(0.5 ms durarion) |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 0.7 lb
Warranty: 5 Year Manufacturer
Brand New
The product is brand new.
5 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
