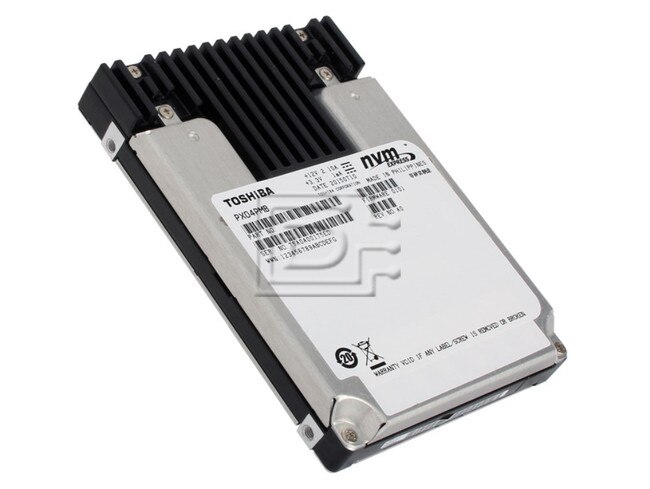

Toshiba PX04PMB160 1.6TB PCIe eSSD

Toshiba Part #/MPN: PX04PMB160

DiscTech Item #: TOS-PX04PMB160-BN-5Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Enterprise Grade

Capacity: 1.6TB

Speed: Solid State Memory

Interface Types: PCIe

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Sustained Throughput: 3100/2350

Electrical Interface: PCIe - v3.0 - 16GBps


SSD Endurance DWPD: Enterprise Mixed Use

Wattage/VA: 6W

Voltage: 12V

Toshiba PX04PMB160 1.6TB 2.5in 32GTps Mid Endurance 10-DWPD MLC PCIe / PCI Express 3.0 eSSD - Brand New

Toshiba PX04PMB160 2.5" 32GT/s Mid Endurance 10 Drive Writes Per Day Multi-Level Cell Peripheral Component Interconnect Express 3.0 Enterprise Solid State Drive - Brand New

Enterprise Mid Endurance SSD

The PX04PMB Series is a high-performance NVMe SSD optimized for a broad set of enterprise workloads. Applications such as web-server, SQL server, and high-transaction / trading (OLTP) can benefit from the PX04P Series balance of endurance, capacity, performance, and reliability. The PX04P Series was also designed for environments where power requirements are a premium, requiring only 18.5W for maximum active performance and maximizing the power to performance (Watt per IOPs and Watt per MiB/s) ratio compared to similar 25W NVMe SSD solutions.

The PX04P delivers excellent performance on sequential reads, up to 3,100 MiB/s and sequential writes up to 2,350 MiB/s. For random workloads, speeds of up to 660k IOPs for random reads and 185k IOPs are achievable depending on the drive’s capacity.

The Enterprise Mid Endurance PX04P supports 10DWPD (Drive Writes Per Day) and is designed for write-intensive applications such as cache writes, data backup, and OLTP

Key Features

  • Up to 3.2TB Storage Capacity
  • 2.5-type form factor, 15 mm Z-height
  • 10 DWPD with 100% Random Workload
  • Up to 660k IOPs random read
  • Power Loss Protection
  • 18.5W Active Power Consumption

Key Applications

  • JBOF (Just a bunch of flash)
  • Web server
  • HPC
  • Media Streaming


This drive is compatible with any server that accepts 2.5in x 15mm (SFF) PCIe drives.

Enterprise Mid Endurance SSD
Model NumberPX04PMB160
Basic Specifications
InterfacePCI Express 3.0
Interface Speed32 GT/s (Gen3 x4)
Memory TypeMLC
Formatted Capacity1.6T / 1,600GB
Sustained 128Kib Sequential Write (Up to)3,100 MiB/s
Sustained 128Kib Sequential Write (Up to)2,350 MiB/s
Sustained 4KiB Random Read (Up to)660,000 IOPS
Sustained 4KiB Random Write (Up to)185,000 IOPS
MTTF2,000,000 hours
DWPD10 (fixed)
Power Requirements
Supply Voltage3.3 V ±9 % (Standby)
12 V ±10 %
Power Consumption (Ready)6 W Typ
Height15.0 mm
+0, -0.5 mm
Width69.85 ±0.25 mm
Length100.45 mm Max.
Weight150 g Max
Environmental Specifications
Temperature (Operating)0 to 40°C
Relative Humidity(Operating)5% to 95%RH
Vibraton (Operating)21.27 m/s{2.17 Grms}(5 to 800 Hz)
Shock (Operating)9,800 m/s{1,000G}(0.5 ms durarion)

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 0.8 lb

Warranty: 5 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

5 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
