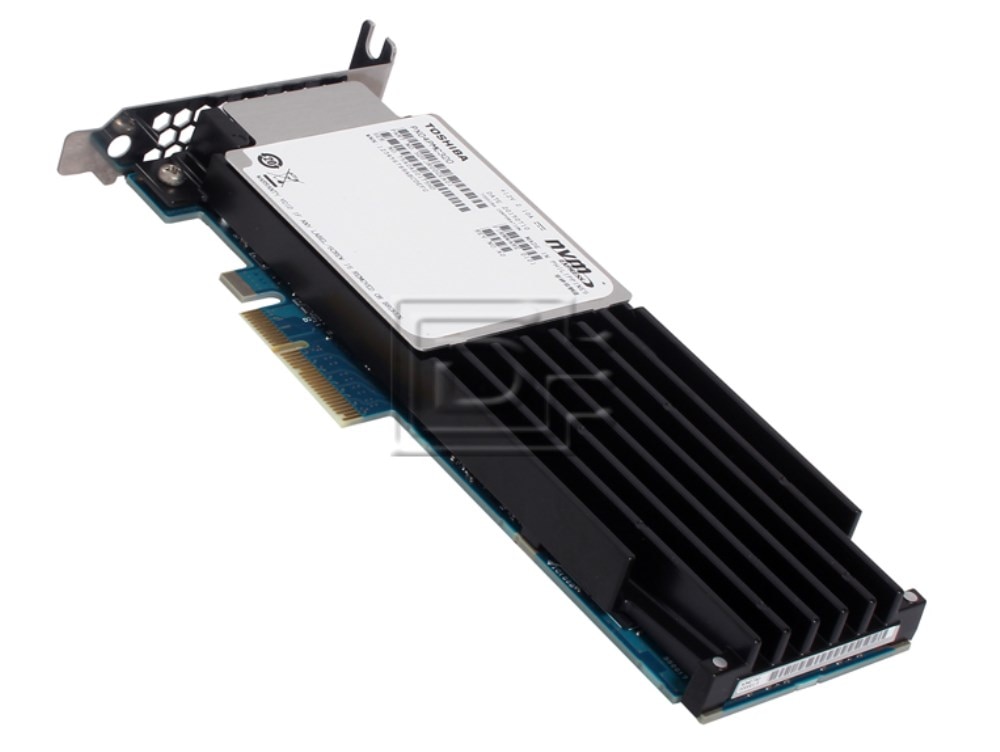

Toshiba PX04PMC080 800GB PCIe 3eSSD

Toshiba Part #/MPN: PX04PMC080

DiscTech Item #: TOS-PX04PMC080-BN-5Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Enterprise Grade

Capacity: 800GB

Speed: Solid State Memory

Interface Types: PCIe

Form Factor: Half-Height/Half-Length

Sector Size: 512 / 512e

Sustained Throughput: 3100/2850

Electrical Interface: PCIe - v3.0 - 16GBps


SSD Endurance DWPD: Enterprise Mixed Use

Wattage/VA: 6W

Voltage: 12V

Toshiba PX04PMC080 800GB HHHL 32GTps Mid Endurance 10-DWPD MLC PCIe /PCI Express 3.0 eSSD - Brand New

Toshiba PX04PMC080 800GB Half Height, Half Length 32 GT/s Mid Endurance 10 Drive Writes Per Day Multi-Level Cell Peripheral Component Interconnect Express 3.0 Enterprise Solid State Disk Drive - Brand New

Enterprise Mid Endurance SSD

The PX04PMC Series is a high-performance NVMe AIC (Add-in Card) SSD optimized for a broad set of enterprise workloads. Applications such as web-server, SQL server, and high-transaction / trading (OLTP) can benefit from the PX04P Series balance of endurance, capacity, performance, and reliability. The PX04P Series was also designed for environments where power requirements are a premium, requiring only 18.5W for maximum active performance and maximizing the power to performance (Watt per IOPs and Watt per MiB/s) ratio compared to similar 25W NVMe SSD solutions.

The PX04P delivers excellent performance on sequential reads, up to 3,100 MiB/s and sequential writes up to 2,350 MiB/s. For random workloads, speeds of up to 660k IOPs for random reads and 185k IOPs are achievable depending on the drive’s capacity.

The Enterprise Mid Endurance PX04P supports 10DWPD (Drive Writes Per Day) and is designed for write-intensive applications such as cache writes, data backup, and OLTP

Key Features

  • Up to 3.2TB Storage Capacity
  • HHHL Add In Card
  • 10 DWPD with 100% Random Workload
  • Up to 660k IOPs random read
  • Power Loss Protection
  • 18.5W Active Power Consumption

Key Applications

  • JBOF (Just a bunch of flash)
  • Web server
  • HPC
  • Media Streaming


This drive is compatible with any server that accepts Half Height/Half Length PCIe drives.

Enterprise Mid Endurance SSD HHHL
Model NumberPX04PMC080
Basic Specifications
InterfacePCI Express 3.0
Interface Speed32 GT/s (Gen3 x4)
Memory TypeMLC
Formatted Capacity800GB
Sustained 128Kib Sequential Write (Up to)3,100 MiB/s
Sustained 128Kib Sequential Write (Up to)2,350 MiB/s
Sustained 4KiB Random Read (Up to)660,000 IOPS
Sustained 4KiB Random Write (Up to)185,000 IOPS
MTTF2,000,000 hours
DWPD10 (fixed)
Power Requirements
Supply Voltage3.3 V ±9 % (Standby)
12 V ±10 %
Power Consumption (Ready)6 W Typ
±0.13 mm
Width18.73 mm Max
Length167.52 ±0.13 mm
Weight220 g Max

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 0.7 lb

Warranty: 5 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

5 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
