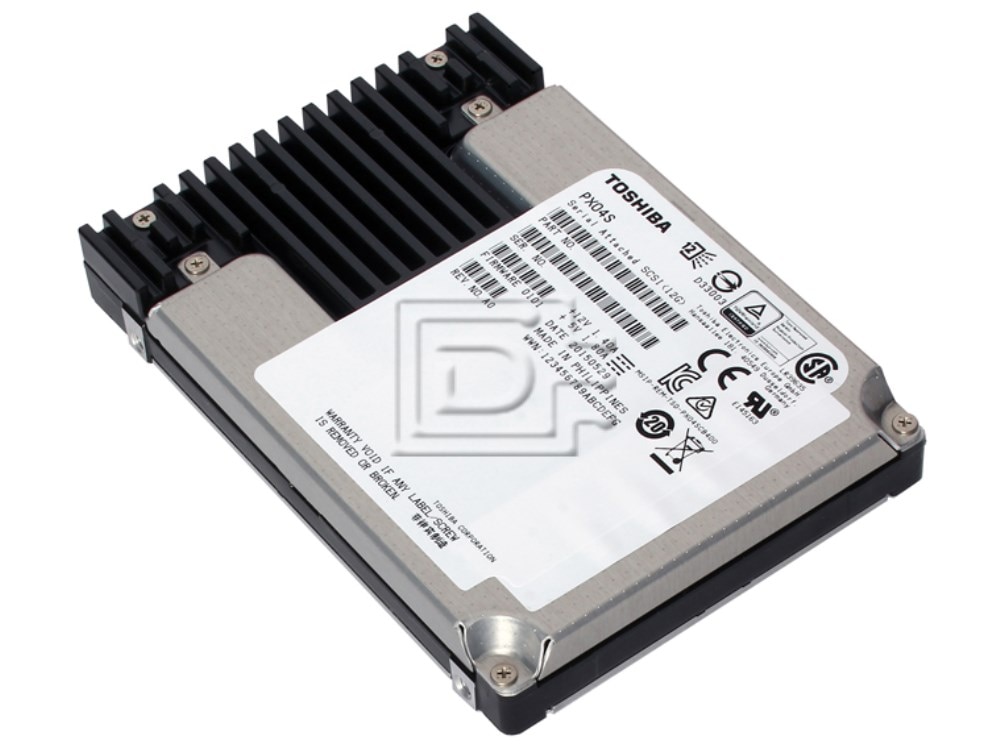

Toshiba PX04SHB020 200GB SAS eSSD

Toshiba Part #/MPN: PX04SHB020

DiscTech Item #: TOS-PX04SHB020-BN-5Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Enterprise Grade

Capacity: 200GB

Speed: Solid State Memory

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Encryption/SED Supported

Sector Size: 512 / 512e

Sustained Throughput: 1900/850

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps


SSD Endurance DWPD: Enterprise Write Intensive

Voltage: 12V

Toshiba PX04SHB020 200GB 2.5in 12Gbps High Endurance 25-DWPD MLC SAS eSSD - Brand New

Toshiba PX04SHB020 200GB 2.5" 12.0 Gb/s High Endurance 25 Drive Writes Per Day Multi-Cell Seriel Attached SCSI Enterprise Solid State Disk Drive - Brand New

Enterprise High Endurance SSD

The PX04SHB Series is optimized for write-intensive virtualized data centers, big data analytics and high performance computing (HPC) workloads. The best-in-class 270k IOPS random read , 12.0 Gbit/s SAS SSD delivers a unique customer-tunable power and performance feature allowing optimization for power efficiency or maximum performance.

Further features include power-loss protection and data path protection. Each model is available as a self-encrypting drive (SED) with instant secure erase and supports pin-3 power disable for improved enclosure services control over storage media.

Aiming at applications requiring the highest levels of eSSD performance, reliability and endurance, this Enterprise High Endurance SSD supports excellent 25 DWPD (Drive Writes Per Day). The PX04SHB is available in capacities from 200GB to 1.6TB.

Key Features

  • Up to 1.6TB Storage Capacity with Dual-Port 12.0 Gbit/s SAS Interface
  • 270k IOPS random read
  • 2.5-Inch Form-Factor, 15mm Z-Height
  • 25 DWPD with 100% Random Workload
  • Improved Read/Write Bandwidth and Random IOPS
  • Power-Loss-Protection and End-to-End Data Protection including T10 DIF
  • Pin-3 Power Disable Support
  • Self-Encrypting (SED) Option

Key Application

  • Write-Intensive Virtualized Data Centers
  • Big Data Analytics
  • High Performance Computing (HPC)


This drive is compatible with any server that accepts 2.5in x 15mm (SFF) SAS drives.

Enterprise High Endurance SSD
Model NumberPX04SHB020
Basic Specifications
Interface Speed12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s
Memory TypeMLC
Formatted Capacity200GB
Sustained 64Kib Sequential Read1,900 MiB/s
Sustained 64Kib Sequential Write850 MiB/s
Sustained 4KiB Random Read (Up to)270,000 IOPS
Sustained 4KiB Random Write (Up to)125,000 IOPS
MTTF2,000,000 hours
Power Requirements
Supply Voltage5 V ±7 %
12 V ±7 %
Power Consumption (Ready)3.2 W Typ
Height15.0 mm +0 , -0.5 mm
Width69.85 ±0.25 mm
Length100.45 mm Max
Weight150 g Max
Enviromental Specificaions
Temperature (Operating)0 to 55 °C
Relative Humidity ( Operating )5 to 95 % R.H.
Vibration ( Operating )21.27 m/s2 { 2.17 Grms } ( 5 to 800 Hz )
Shock ( Operating )9,800 m/s2 { 1,000 G } ( 0.5 ms duration )

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 0.7 lb

Warranty: 5 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

5 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
