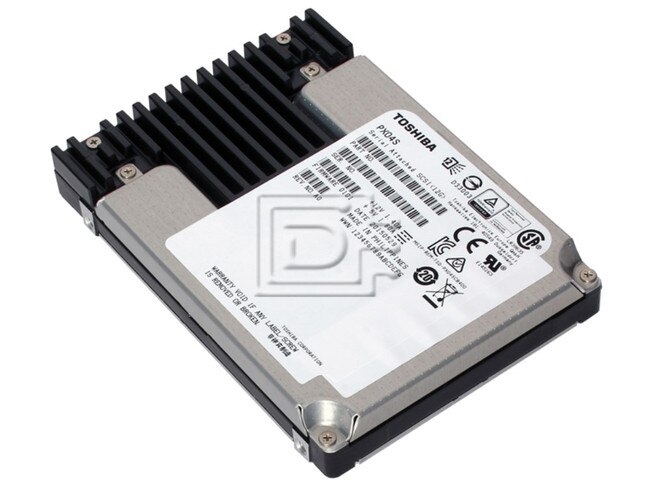

Toshiba PX04SHQ020 200GB SAS eSSD
| Capacity: | 200GB |
| Speed: | Solid State |
| Interface Types: | SAS |
| Form Factor: | 2.5" SFF Server Drive |
| SSD Endurance DWPD: | Enterprise Write Intensive / WI |
| Electrical Interface: | SAS-3 12Gbps |
Description
Toshiba PX04SHQ020 200GB 2.5in 12Gbps High Endurance 25-DWPD MLC SAS eSSD - Brand New
Toshiba PX04SHQ020 200GB 2.5" 12.0 Gb/s High Endurance 25 Drive Writes Per Day Multi-Level Cell Serial Attached SCSI Enterprise Solid State Disk Drive - Brand New
Enterprise High Endurance SSD
The PX04SHB Series is optimized for write-intensive virtualized data centers, big data analytics and high performance computing (HPC) workloads. The best-in-class 270k IOPS random read , 12.0 Gbit/s SAS SSD delivers a unique customer-tunable power and performance feature allowing optimization for power efficiency or maximum performance.
Further features include power-loss protection and data path protection. Each model is available as a self-encrypting drive (SED) with instant secure erase and supports pin-3 power disable for improved enclosure services control over storage media.
Aiming at applications requiring the highest levels of eSSD performance, reliability and endurance, this Enterprise High Endurance SSD supports excellent 25 DWPD (Drive Writes Per Day). The PX04SHB is available in capacities from 200GB to 1.6TB.
Key Features
- Up to 1.6TB Storage Capacity with Dual-Port 12.0 Gbit/s SAS Interface
- 270k IOPS random read
- 2.5-Inch Form-Factor, 15mm Z-Height
- 25 DWPD with 100% Random Workload
- Improved Read/Write Bandwidth and Random IOPS
- Power-Loss-Protection and End-to-End Data Protection including T10 DIF
- Pin-3 Power Disable Support
- Self-Encrypting (SED) Option
Key Application
- Write-Intensive Virtualized Data Centers
- Big Data Analytics
- High Performance Computing (HPC)
Compatibility:
This drive is compatible with any server that accepts 2.5in x 15mm (SFF) SAS drives.
Specifications
| Enterprise High Endurance SSD | |
|---|---|
| Model Number | PX04SHQ020 |
| Basic Specifications | |
| Interface | SAS-3.0 |
| Interface Speed | 12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s |
| Memory Type | MLC |
| Formatted Capacity | 200GB |
| Sustained 64Kib Sequential Read | 1,900 MiB/s |
| Sustained 64Kib Sequential Write | 850 MiB/s |
| Sustained 4KiB Random Read (Up to) | 270,000 IOPS |
| Sustained 4KiB Random Write (Up to) | 125,000 IOPS |
| Reliability | |
| MTTF | 2,000,000 hours |
| DWPD | 25 |
| Power Requirements | |
| Supply Voltage | 5 V ±7 % 12 V ±7 % |
| Power Consumption (Ready) | 3.2 W Typ |
| Dimensions | |
| Height | 15.0 mm +0 , -0.5 mm |
| Width | 69.85 ±0.25 mm |
| Length | 100.45 mm Max |
| Weight | 150 g Max |
| Enviromental Specificaions | |
| Temperature (Operating) | 0 to 55 °C |
| Relative Humidity ( Operating ) | 5 to 95 % R.H. |
| Vibration ( Operating ) | 21.27 m/s2 { 2.17 Grms } ( 5 to 800 Hz ) |
| Shock ( Operating ) | 9,800 m/s2 { 1,000 G } ( 0.5 ms duration ) |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 0.7 lb
Warranty: 5 Year Manufacturer
Condition
Brand New
Warranty
5 Year Manufacturer Warranty
