Toshiba Part #/MPN: PX04SLQ200
DiscTech Item #: TOS-PX04SLQ200-BN-5Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:5 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Speed: Solid State Memory
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx9mm Fits Most laptops
Sector Size: 512 / 512e
Sustained Throughput: 1900/850
Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps
SSD Type: MLC
SSD Endurance DWPD: Consumer / Value
Voltage: 12V

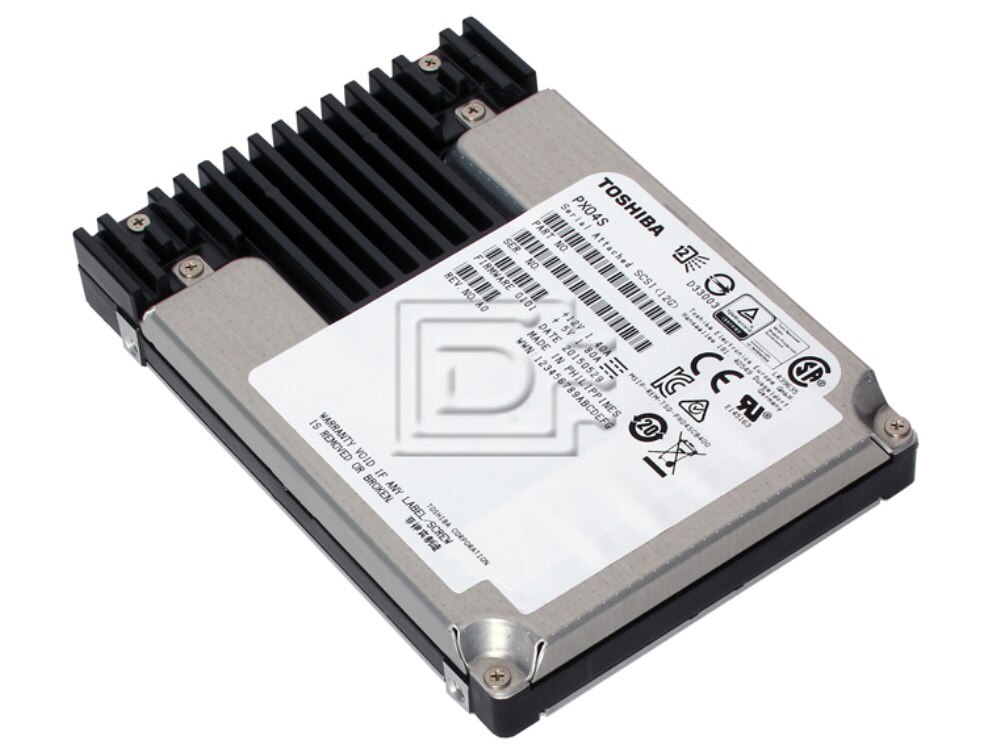

Toshiba PX04SLQ200 2TB 2.5in 12Gbps Consumer 0.5-DWPD MLC SAS eSSD - Brand New
Toshiba PX04SLQ200 2TB / 2000GB 2.5" 12.0 Gb/s Consumer 0.5 Drive Writes Per Day Multi-Level Cell Serial Attached SCSI Enterprise Solid State Disk Drive - Brand New
Enterprise Read Intensive SSD
The PX04SL SSD family is designed for read-intensive application workloads including web servers, data warehousing, media streaming and VOD and offers large capacities up to 4TB with 12.0 Gbit/s SAS interface.
The series’ 270K IOPS sustained random read performance helps read-intensive application workloads to realize superior results and assists organizations in minimizing total cost of ownership while maintaining high performance, reliability and endurance for maximum scalability.
Optimized for applications demanding 0.5 or less Drive Writes Per Day (DWPD), the family is equipped with unique customer-tunable feature allowing optimization for maximum performance or power efficiency. Additional features include power-loss protection and full data path protection. Each model supports pin-3 power disable for improved enclosure services control over storage media. Self-encrypting drive options with instant secure erase are also available.
Key Features
- 2TB and 4TB Storage Capacity
- 12.0 Gbit/s Dual-Port SAS Interface
- 270K IOPS Sustained Random Read Performance
- 0.5 DWPD with 100% Random Workload
- Improved Read/Write Bandwidth and Random IOPS
- Power-Loss-Protection and End-to-End Data Protection including T10 DIF
- Pin-3 Power Disable Support
- Self-Encrypting (SED) Option (PX04SLQxxx)
Applications
- Data Warehousing
- Web Servers
- Media Streaming
- Video on Demand (VOD)
Compatibility:
This drive is compatible with any server that accepts 2.5in x 15mm (SFF) SAS drives.
| Enterprise Read Intensive SSD | |
|---|---|
| Model Number | PX04SLQ200 |
| Basic Specifications | |
| Interface | SAS-3.0 |
| Interface Speed | 12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s |
| Memory Type | MLC |
| Formatted Capacity | 2TB / 2,000GB |
| Sustained 64Kib Sequential Read | 1,900 MiB/s |
| Sustained 64Kib Sequential Write | 850 MiB/s |
| Sustained 4KiB Random Read (Up to) | 270,000 IOPS |
| Sustained 4KiB Random Write (Up to) | 19,000 IOPS |
| Reliability | |
| MTTF | 2,000,000 hours |
| DWPD | 0.5 |
| Power Requirements | |
| Supply Voltage | 5 V ±7 % 12 V ±7 % |
| Power Consumption (Ready) | 3.2 W Typ |
| Dimensions | |
| Height | 15.0 mm +0 , -0.5 mm |
| Width | 69.85 ±0.25 mm |
| Length | 100.45 mm Max |
| Weight | 150 g Max |
| Enviromental Specificaions | |
| Temperature (Operating) | 0 to 55 °C |
| Relative Humidity ( Operating ) | 5 to 95 % R.H. |
| Vibration ( Operating ) | 21.27 m/s2 { 2.17 Grms } ( 5 to 800 Hz ) |
| Shock ( Operating ) | 9,800 m/s2 { 1,000 G } ( 0.5 ms duration ) |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 0.7 lb
Warranty: 5 Year Manufacturer
Brand New
The product is brand new.
5 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
