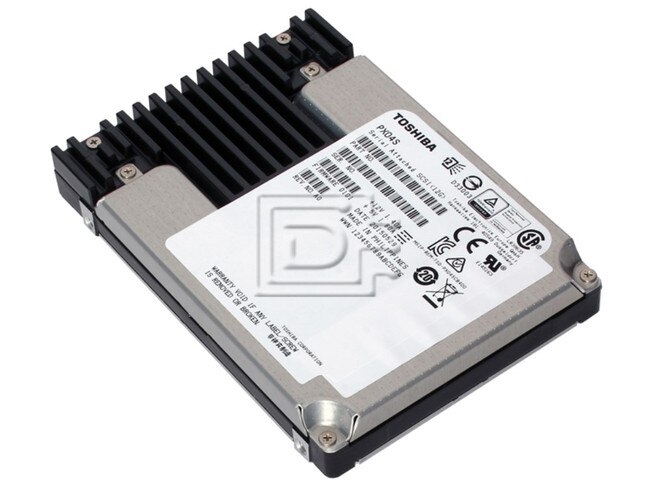

Toshiba PX04SMB080 800GB SAS Solid State Drive

(0) No Reviews Yet

Toshiba Part #/MPN: PX04SMB080

DiscTech Item #: TOS-PX04SMB080-BN-5Y


$2,255.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$2,255.00

Enterprise Grade

Capacity: 800GB

Speed: Solid State Memory

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Sustained Throughput: 1900/850

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps

SSD Type: MLC

SSD Endurance DWPD: Enterprise Mixed Use

Toshiba PX04SMB080 800GB 12Gbps eMLC Mid Endurance Mixed-Use 10-DWPD SAS SSD – Brand New

Toshiba PX04SMB080 800GB 12Gbps Enterprise, Multi-Level Cell, Mid Endurance, Mixed-Use, 10-DWPD, Serial Attached SCSI Solid-State Disk Drive – Brand New

Enterprise Mid Endurance SSD
The PX04SMB Series is optimized for mixed-use, mission-critical hyperscale and virtualized environments. The 270k IOPS random read, 12.0 Gbit/s SAS SSD delivers a unique customer-tunable power and performance feature allowing optimization for power efficiency or maximum performance.

Further features of the impressive series include power-loss protection and data path protection. Each model is available as a self-encrypting drive with instant secure erase and supports pin-3 power disable for improved enclosure services control over storage media.

The Enterprise Mid Endurance SSD offers 10 DWPD (Drive Writes Per Day) with capacities of up to 3.2TB and is designed for general online transaction processing (OLTP) and e-commerce.

Key Features

  • Up to 3.2TB Storage Capacity with Dual-Port 12.0 Gbit/s SAS Interface
  • 270k IOPS random read
  • 2.5-Inch Form-Factor, 15mm Z-Height
  • 10 DWPD with 100% Random Workload
  • Improved Read/Write Bandwidth and Random IOPS
  • Power-Loss-Protection and End-to-End Data Protection including T10 DIF
  • Pin-3 Power Disable Support
  • Self-Encrypting (SED) Option

Key Application

  • Mixed-Use, Mission-Critical Enterprise Workloads
  • Hyperscale and Virtualized Environments
  • General online transaction processing (OLTP)
  • E-commerce


Compatibility:

This drive is compatible with any server that accepts 2.5in x 15mm (SFF) SAS drives.

Basic Specification
Intel Model NumberPX04SMB080
InterfaceSAS-3.0
Interface Speed12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s
Memory TypeMLC
Formatted Capacity800GB
Sustained 64KiB Sequential Read1,900 MiB/s
Sustained 64KiB Sequential Write850 MiB/s
Sustained 4KiB Random Read270,000 IOPS
Sustained 4KiB Random Write90,000 IOPS
Reliability
MTTF2,000,000 hours
DWPD10
Power Requirements
Supply Voltage5 V ±7 % , 12 V ±7 %
Power Consumption (Ready)3.2 W Typ.
Dimension
Height15.0 mm +0 , -0.5 mm
Width69.85 ±0.25 mm
Length100.45 mm Max.
Weight150 g Max
Environmental Specifications
Temperature (Operating)0 to 55 °C
Relative Humidity (Operating)5 to 95 % R.H.
Vibration (Operating)21.27 m/s {2.17 Grms} (5 to 800 Hz)
Shock (Operating)9,800 m/s {1,000 G} (0.5 ms duration)

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 1 lb

Warranty: 5 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

5 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
