Toshiba Part #/MPN: PX04SMQ160
DiscTech Item #: TOS-PX04SMQ160-BN-5Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:5 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 1.6TB
Speed: Solid State Memory
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Sustained Throughput: 1900/850
Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Mixed Use
Voltage: 12V

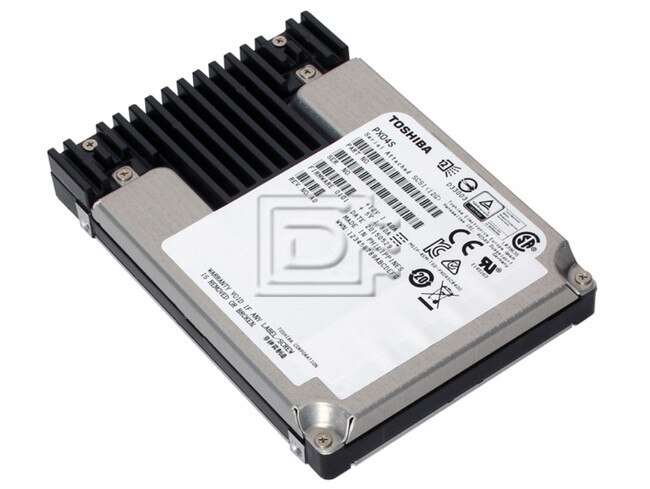

Toshiba PX04SMQ160 1.6TB 2.5in 12Gbps Mixed Use 10-DWPD MLC SAS eSSD - Brand New
Toshiba PX04SMQ160 1.6TB / 1600GB 2.5" 12.0 Gb/s Mixed Use 10 Drive Writes Per Day Multi-Level Cells SAS / Serial Attached SCSI Enterprise Solid State Disk Drive - Brand New
Enterprise Mid Endurance SSD
The PX04SMB Series is optimized for mixed-use, mission-critical hyperscale and virtualized environments. The 270k IOPS random read, 12.0 Gbit/s SAS SSD delivers a unique customer-tunable power and performance feature allowing optimization for power efficiency or maximum performance.
Further features of the impressive series include power-loss protection and data path protection. Each model is available as a self-encrypting drive with instant secure erase and supports pin-3 power disable for improved enclosure services control over storage media.
The Enterprise Mid Endurance SSD offers 10 DWPD (Drive Writes Per Day) with capacities of up to 3.2TB and is designed for general online transaction processing (OLTP) and e-commerce.
Key Features
- Up to 3.2TB Storage Capacity with Dual-Port 12.0 Gbit/s SAS Interface
- 270k IOPS random read
- 2.5-Inch Form-Factor, 15mm Z-Height
- 10 DWPD with 100% Random Workload
- Improved Read/Write Bandwidth and Random IOPS
- Power-Loss-Protection and End-to-End Data Protection including T10 DIF
- Pin-3 Power Disable Support
- Self-Encrypting (SED) Option
Key Applications
- Mixed-Use, Mission-Critical Enterprise Workloads
- Hyperscale and Virtualized Environments
- General online transaction processing (OLTP)
- E-commerce
Compatibility:
This drive is compatible with any server that accepts 2.5in x 15mm (SFF) SAS drives.
| Enterprise Mid Endurance SSD | |
|---|---|
| Model Number | PX04SMQ160 |
| Basic Specifications | |
| Interface | SAS-3.0 |
| Interface Speed | 12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s |
| Memory Type | MLC |
| Formatted Capacity | 1.6TB / 1,600GB |
| Sustained 64Kib Sequential Read | 1,900 MiB/s |
| Sustained 64Kib Sequential Write | 850 MiB/s |
| Sustained 4KiB Random Read (Up to) | 270,000 IOPS |
| Sustained 4KiB Random Write (Up to) | 90,000 IOPS |
| Reliability | |
| MTTF | 2,000,000 hours |
| DWPD | 10 |
| Power Requirements | |
| Supply Voltage | 5 V ±7 % 12 V ±7 % |
| Power Consumption (Ready) | 3.2 W Typ |
| Dimensions | |
| Height | 15.0 mm +0 , -0.5 mm |
| Width | 69.85 ±0.25 mm |
| Length | 100.45 mm Max |
| Weight | 150 g Max |
| Enviromental Specificaions | |
| Temperature (Operating) | 0 to 55 °C |
| Relative Humidity ( Operating ) | 5 to 95 % R.H. |
| Vibration ( Operating ) | 21.27 m/s2 { 2.17 Grms } ( 5 to 800 Hz ) |
| Shock ( Operating ) | 9,800 m/s2 { 1,000 G } ( 0.5 ms duration ) |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 0.7 lb
Warranty: 5 Year Manufacturer
Brand New
The product is brand new.
5 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
