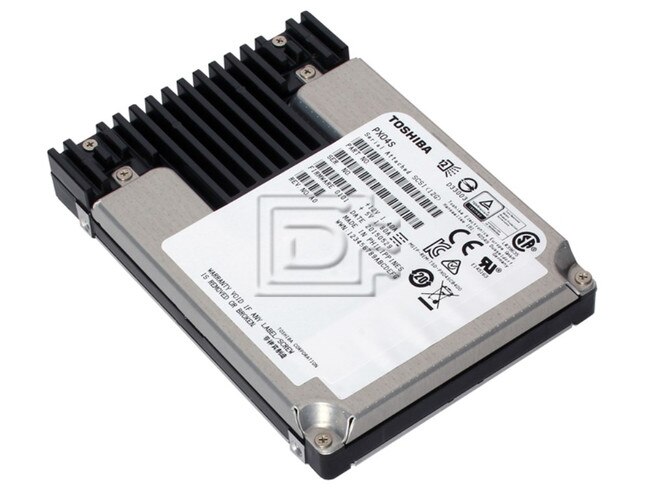

Toshiba PX04SVB192 1.92TB SAS eSSD
| Capacity: | 1.92TB |
| Speed: | Solid State |
| Interface Types: | SAS |
| Form Factor: | 2.5" SFF Server Drive |
| SSD Endurance DWPD: | Enterprise Read Intensive / RI |
| Electrical Interface: | SAS-3 12Gbps |
Description
Toshiba PX04SVB192 1.92TB 2.5in 12Gbps Read Intensive 3-DWPD MLC SAS eSSD - Brand New
Toshiba PX04SVB192 1.92TB / 1920GB 2.5" 12.0 Gb/s Read Intensive 3 Drive Write Per Day Multi-Level Cell SAS / Serial Attached SCSI Enterprise Solid State Disk Drive - Brand New
Enterprise Value Endurance SSD
The PX04SVB is 270k IOPS random read, 12.0 Gbit/s SAS SSD series with 3.84TB capacity. It is optimized for web server, SQL server and read- intensive storage applications, requiring a balance of reliability, capacity and endurance.
The SSD models deliver a unique customer-tunable power and performance feature allowing optimization for power efficiency or maximum performance.
Further features include power-loss protection and full data path protection. Each model is available as a self-encrypting drive with instant secure erase and supports pin-3 power disable for improved enclosure services control over storage media.
The Enterprise Value Endurance PX04SVB supports 3 DWPD (Drive Writes Per Day) and is designed for read-intensive applications such as media streaming, data warehousing and web servers.
Key Features
- Up to 3.84TB Storage Capacity with Dual-Port 12.0 Gbit/s SAS Interface
- 270k IOPS random read
- 2.5-Inch Form-Factor, 15mm Z-Height
- 3 DWPD with 100% Random Workload
- Improved Read/Write Bandwidth and Random IOPS
- Power-Loss-Protection and End-to-End Data Protection including T10 DIF
- Pin-3 Power Disable Support
- Self-Encrypting (SED) Option
Key Applications
- Media Streaming
- Data Warehousing
- Web Servers
Compatibility:
This drive is compatible with any server that accepts 2.5in x 15mm (SFF) SAS drives.
Specifications
| Enterprise Value Endurance SSD | |
|---|---|
| Model Number | PX04SVB192 |
| Basic Specifications | |
| Interface | SAS-3.0 |
| Interface Speed | 12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s |
| Memory Type | MLC |
| Formatted Capacity | 1.92TB / 1,920GB |
| Sustained 64KiB Sequential Read | 1,900 MiB/s |
| Sustained 64KiB Sequential Write | 850 MiB/s |
| Sustained 4KiB Random Read | 270,000 IOPS |
| Sustained 4KiB Random Write | 60,000 IOPS |
| Reliability | |
| MTTF | 2,000,000 hours |
| DWPD | 3 |
| Power Requirements | |
| Supply Voltage | 5 V ±7 % , 12 V ±7 % |
| Power Consumption (Operating) | 3.2W Typ. |
| Dimensions | |
| Height | 15.0 mm +0 , -0.5 mm |
| Width | 69.85 ±0.25 mm |
| Length | 100.45 mm Max. |
| Weight | 150 g Max. |
| Enviromental | |
| Temperature (Operating) | 0 to 55 °C |
| Relative Humidity ( Operating ) | 5 to 95 % R.H. |
| Vibration (Operating) | 21.27 m/s {2.17 Grms} (100 to 800 Hz) |
| Shock (Operating) | 9.8 km/s {1,000 G} (0.5 msec) |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 0.7 lb
Warranty: 5 Year Manufacturer
Condition
Brand New
Warranty
5 Year Manufacturer Warranty
