Toshiba Part #/MPN: THNSF8960CCSE
DiscTech Item #: TOS-THNSF8960CCSE-BN-OE-DEL
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 960GB
Speed: Solid State Memory
Interface Types: SATA
Form Factor: 2.5inx7mm Fits All laptops
Sector Size: 512 / 512e
Sustained Throughput: 500/480
Electrical Interface: SATA 600 - 6.0Gbps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Read Intensive

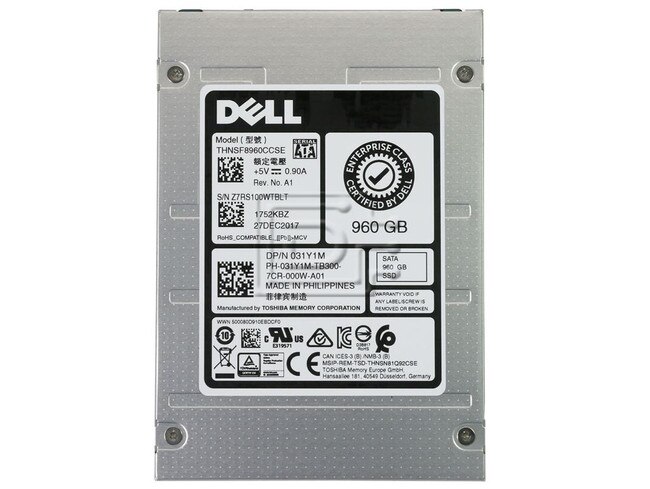

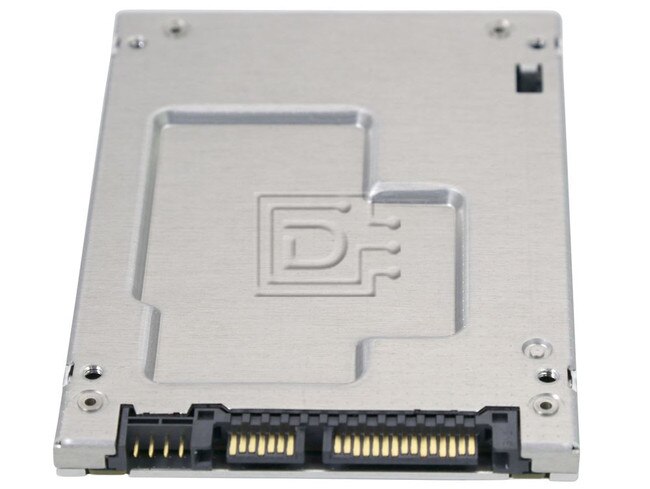

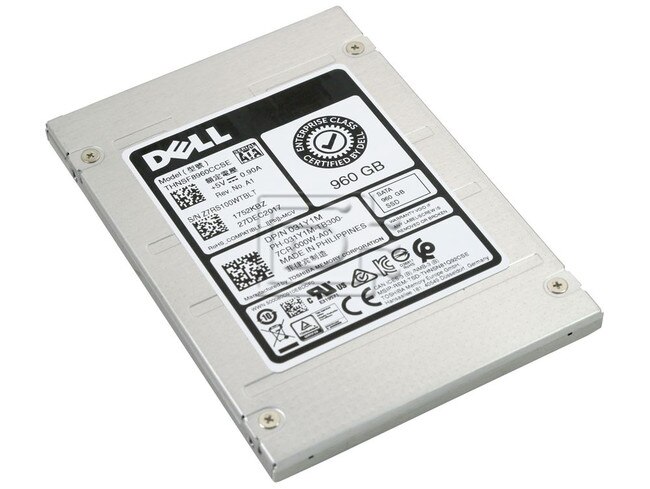

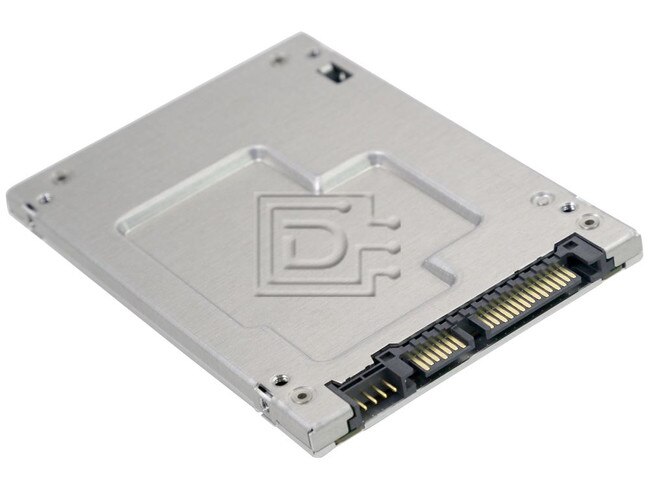

Dell 31Y1M / Toshiba THNSF8960CCSE 960GB 2.5" 6Gbps HS Read Intensive SATA SSD - Brand New
Dell 31Y1M / Toshiba THNSF8960CCSE 960GB 2.5" 6Gbps HS Read Intensive SATA SSD
Dell DP/N: 031Y1M
Enterprise Read Intensive SSD
Designed for read-intensive workloads, the enterprise HK4R SATA SSD series offers excellent performance, high reliability and low power consumption with high quality of service, especially for enterprise and file server use.
The HK4R family supports 6.0 Gbit/s interface and is available in large capacities up to 1.92TB. All 7.0mm height models are equipped with enterprise-grade features such as Power Loss Protection.
Key Features
- Capacities up to 1.92TB
- 1DWPD
- SATA 6.0 Gbit/s Iterface
- Low Operating Power
- Power Loss Protection
- End to end data protection
- Hot-Plug/OS-Aware Hot Removal
Applications
- Web Servers
- File Server
- Media Streaming
- VOD
- Search Engine
- Warm Data Storage
Compatibility:
This drive is compatible with laptops that accept 2.5" x 7mm (Thin/Case) SATA drives.
| HK4R Series (Non-SED) | ||
|---|---|---|
| Model Number | THNSF8960CCSE | |
| BASIC SPECIFICATIONS | ||
| INTERFACE | ACS-3, SATA revision 3.0 | |
| INTERFACE SPEED | 6.0 Gbit/s, 3.0 Gbit/s, 1.5 Gbit/s | |
| MEMORY TYPE | MLC | |
| FORMATTED CAPACITY | 960 GB | |
| SEQUENTIAL READ (64KiB) | 500 MiB/s | |
| SEQUENTIAL WRITE (64KiB) | 480 MiB/s | |
| RANDOM READ (4KiB) | 75 KIOPS | |
| RANDOM WRITE (4KiB) | 14 KIOPS | |
| RELIABILITY | ||
| MTTF | 2,000,000 hours | |
| DWPD | 1 | |
| POWER REQUIREMENTS | ||
| SUPPLY VOLTAGE | 5.0 V ±5 % | |
| POWER CONSUMPTION (OPERATING) | 4.5W Typ. | |
| POWER CONSUMPTION (READY) | 1.2 W Typ. | |
| DIMENSIONS | ||
| HEIGHT | 7.0 mm | |
| WIDTH | 69.85 mm | |
| LENGTH | 100.0 mm | |
| WEIGHT | 60 g Max. | |
| ENVIRONMENTAL | ||
| TEMPERATURE (OPERATING) | 0 to 55°C | |
| RELATIVE HUMIDITY (OPERATING) | 5 to 95 % R.H. | |
| VIBRATION (OPERATING) | 21 m/s {2.17 Grms} (100 to 800 Hz) | |
| SHOCK (OPERATING) | 9.8 km/s {1000 G} (0.5 msec) | |
| MORE FEATURES | Support to power loss protection (PLP) | |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 31Y1M 031Y1M
Weight: 0.5 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
