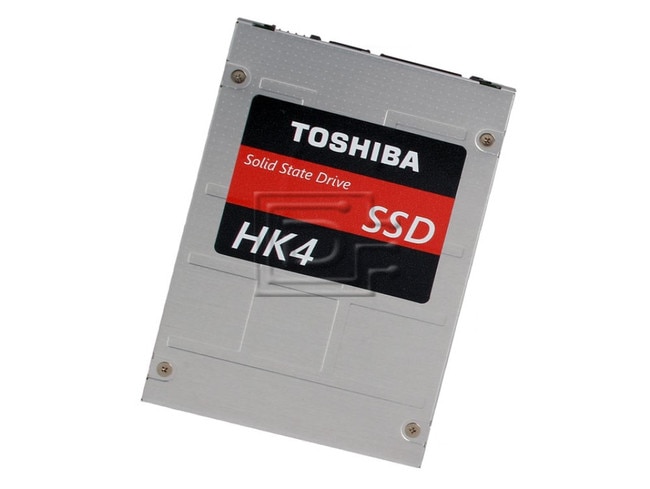

Toshiba THNSN8120PCSE 120GB SATA eSSD
| Capacity: | 120GB |
| Speed: | Solid State |
| Interface Types: | SATA |
| Form Factor: | 2.5" x 7mm Fits All laptops |
| SSD Endurance DWPD: | Enterprise Read Intensive / RI |
| Electrical Interface: | SATA 600 - 6Gbps |
Description
Toshiba HK4R THNSN8120PCSE 120GB 2.5in 6Gbps Read Intensive 1-DWPD MLC SATA / Serial ATA eSSD - Brand New
Toshiba HK4R THNSN8120PCSE 120GB 2.5" 6.0 Gb/s Read Intensive 1 Drive Writes Per Day Multi-Level Cell Serial Attached Technology Attachment Enterprise Solid State Disk Drive - Brand New
Enterprise Read Intensive SSD
Designed for read-intensive workloads, the enterprise HK4R SATA SSD series offers excellent performance, high reliability and low power consumption with high quality of service, especially for enterprise and file server use.
The HK4R family supports 6.0 Gbit/s interface and is available in large capacities up to 1.92TB. All 7.0mm height models are equipped with enterprise-grade features such as Power Loss Protection.
Key Features
- Capacities up to 1.92TB
- 1DWPD
- SATA 6.0 Gbit/s Interface
- Low Operating Power
- Power Loss Protection
- End to end data protection
- Hot-Plug/OS-Aware Hot Removal
Applications
- Web Servers
- File Server
- Media Streaming
- VOD
- Search Engine
- Warm Data Storage
Compatibility:
This drive is compatible with laptops that accept 2.5" x 7mm (Thin/Case) SATA drives.Specifications
| Enterprise Value Endurance SSD | |
|---|---|
| Model Number | THNSN8120PCSE |
| Basic Specifications | |
| Series | HK4R |
| Interface | ACS-3, SATA revision 3.2 |
| Interface Speed | 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s |
| Memory Type | MLC |
| Formatted Capacity | 120GB |
| Sequential Read (64KiB) | 500 MiB/s |
| Sequential Write (64KiB) | 120 MiB/s |
| Random Read (4KiB) | 75 KIOPS |
| Random Write (4KiB) | 4 KIOPS |
| Reliability | |
| MTTF | 2,000,000 hours |
| DWPD | 1 |
| Power Requirements | |
| Supply Voltage | 5.0 V ±5 % |
| Power Consumption (Operating) | 4.5W Typ. |
| Power Consumption (Ready) | 1.2 W Typ. |
| Dimensions | |
| Height | 7.0 mm |
| Width | 69.85 mm |
| Length | 100.45 mm |
| Weight | 60 g Max |
| Enviromental | |
| Temperature (Operating) | 0 to 55 °C |
| Relative Humidity ( Operating ) | 5 to 95 % R.H. |
| Vibration (Operating) | 21.27 m/s {2.17 Grms} (100 to 800 Hz) |
| Shock (Operating) | 9.8 km/s {1,000 G} (0.5 msec) |
| More Features | Support to power loss protection (PLP) |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 0.5 lb
Warranty: 5 Year Manufacturer
Condition
Brand New
Warranty
5 Year Manufacturer Warranty
