Toshiba Part #/MPN: THNSN8200PCSE
DiscTech Item #: TOS-THNSN8200PCSE-BN-5Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:5 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 200GB
Speed: Solid State Memory
Interface Types: SATA
Form Factor: 2.5inx7mm Fits All laptops
Sector Size: 512 / 512e
Sustained Throughput: 500/270
Electrical Interface: SATA 600 - 6.0Gbps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Read Intensive
Wattage/VA: 4.5W
Voltage: 5V

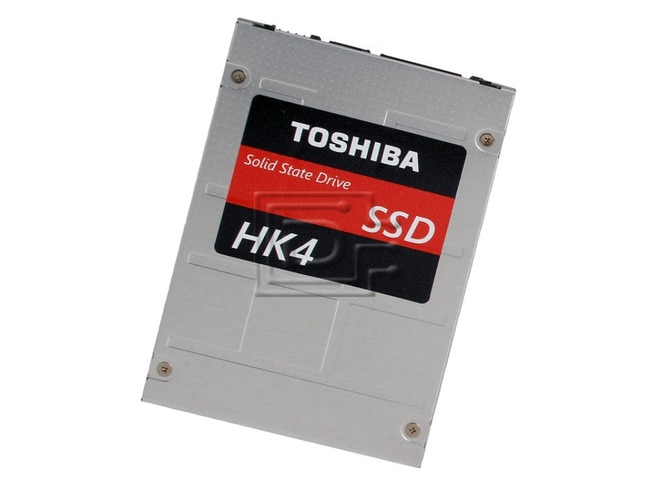

Toshiba HK4E THNSN8200PCSE 200GB 2.5in 6Gbps Read Intensive 3-DWPD MLC SATA / Serial ATA eSSD - Brand New
Toshiba HK4E THNSN8200PCSE 200GB 2.5" 6.0 Gb/s Read Intensive 3 Drive Writes Per Day Multi-Level Cell Serial Attached Technology Attachment Enterprise Solid State Disk Drive - Brand New
Enterprise Value Endurance SSD
Specifically engineered for value-endurance workloads, the HK4E eSSD delivers high reliability, high performance and low power usage. Data center and enterprise applications benefit from the excellent quality of service, provided by the series.
The 7.0mm height drive is available in high capacities up to 1.6TB and supports 6.0 Gbit/s SATA interface. Each model is provided with enterprise-class features such as Power Loss Protection.
Key Features
- Capacities up to 1.6TB
- SATA 6.0 Gbit/s Iterface
- 3DWPD
- Low Operating Power
- Power Loss Protection
- End to end data protection
- Hot-Plug/OS-Aware Hot Removal
Applications
- OLTP
- VDI
- Data center
- Database
- E-Commerce
- E-Mail/Messaging Server
Compatibility:
This drive is compatible with laptops that accept 2.5" x 7mm (Thin/Case) SATA drives.Enterprise Value Endurance SSD | |
---|---|
Model Number | THNSN8200PCSE |
Basic Specifications | |
Series | HK4E |
Interface | ACS-3, SATA revision 3.2 |
Interface Speed | 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s |
Memory Type | MLC |
Formatted Capacity | 200GB |
Sequential Read (64KiB) | 500 MiB/s |
Sequential Write (64KiB) | 270 MiB/s |
Random Read (4KiB) | 75 KIOPS |
Random Write (4KiB) | 20 KIOPS |
Reliability | |
MTTF | 2,000,000 hours |
DWPD | 3 |
Power Requirements | |
Supply Voltage | 5.0 V ±5 % |
Power Consumption (Operating) | 4.5W Typ. |
Power Consumption (Ready) | 1.2 W Typ. |
Dimensions | |
Height | 7.0 mm |
Width | 69.85 mm |
Length | 100.45 mm |
Weight | 60 g Max |
Enviromental | |
Temperature (Operating) | 0 to 55 °C |
Relative Humidity ( Operating ) | 5 to 95 % R.H. |
Vibration (Operating) | 21.27 m/s {2.17 Grms} (100 to 800 Hz) |
Shock (Operating) | 9.8 km/s {1,000 G} (0.5 msec) |
More Features | Support to power loss protection (PLP) |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 0.5 lb
Warranty: 5 Year Manufacturer
Brand New
The product is brand new.
5 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
