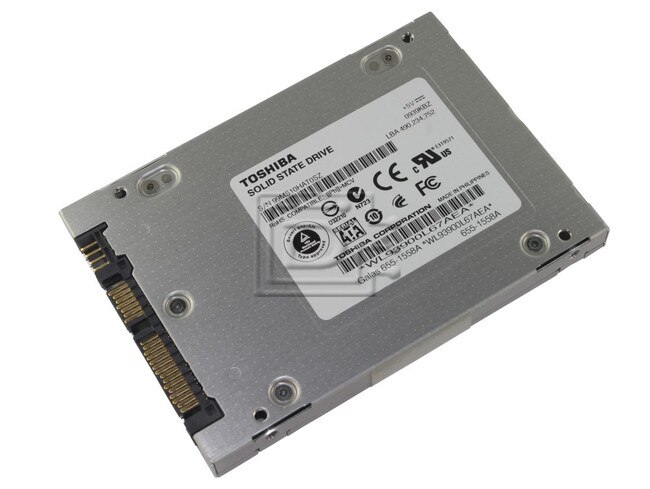

Toshiba THNSNJ120PCS3 120GB SATA eSSD

(0) No Reviews Yet

Toshiba Part #/MPN: THNSNJ120PCS3

DiscTech Item #: TOS-THNSNJ120PCS3-BN-5Y


$199.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$199.00

Enterprise Grade

Capacity: 120GB

Speed: Solid State Memory

Interface Types: SATA

Form Factor: 2.5inx7mm Fits All laptops

Sector Size: 512 / 512e

Electrical Interface: SATA 600 - 6.0Gbps

SSD Type: MLC

SSD Endurance DWPD: Enterprise Read Intensive

Toshiba THNSNJ120PCS3 120GB 2.5in 6Gbps SATA MLC Read-Intensive 1-DWPD eSSD - Brand New

Toshiba THNSNJ120PCS3 120GB 2.5" 6.0 Gbps Serial Advanced Technolgy Attachment Multi-Level Cell Read-Intensive 1-DWPD Enterprise Solid State Disk Drive - Brand New

The HK3R range is designed for use in tiered server storage systems and any read-intensive applications such as fast boot drives and for cache and error logging. The eSSDs are fitted with a 6Gbit/s SATA 3.0 interface and come in a 2.5 inch (6.4cm) form factor. Using state-of-the-art 19nm MLC NAND, the drives achieve sequential read speeds of 500MiB/s and random read speeds of 75,000 IOPS.

All eSSDs of this series feature full power loss protection and end-to-end data protection. The drives also incorporate Toshiba’s robust and highly efficient Quadruple Swing-By Code (QSBC™) for improved error correction and reliability.

  • 19 nm MLC NAND Flash
  • 6Gbit/s SATA 3.0 Interface
  • Quadruple Swing-By Code (QSBC) technology
  • Power loss protection
  • End-to-end data protection


Compatibility:

This drive is compatible with any server that accepts 2.5”x7mm Thin Case SATA drives

Drive ModelTHNSNJ120PCS3
Capacity120GB
Performance
Interface TypeSATA 6.0 Gbps
Memory19mn MLC NAND Flash Memory
Performance: Random read (4KiB)75,000 IOPS
Performance: Random write (4 KiB)10,000 IOPS
Performance: Sequential read (64 KiB)500 MByte/s
Performance: Sequential write (64 KiB)280 MByte/s
Physical
Form factor2.5 inch
Height (in/mm)0.28/7.0
Width (in/mm)2.75/69.85
Depth (in/mm)3.95/100.45
Weight (lb/g)0.132/60.0
Ambient temperature (operating)From 0 °C to +55 °C
Ambient temperature (non-operating)From -40 °C to +70 °C
Shock resistance (operating)9,800 m/s2 {1,000G} / 0.5 ms duration
Shock resistance (non-operating)9,800 m/s2 {1,000G} / 0.5 ms duration
Vibration (operating)21.27 m/s2 {2.17Grms} (5 to 800Hz)
Vibration (non-operating)159.74 m/s2 {16.3Grms} (20 to 2,000Hz)
Reliability
MTTF2,000,000 Hours
Product life5
Operating condition24 hours/day, 7 days/week

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 1 lb

Warranty: 5 Year Manufacturer
