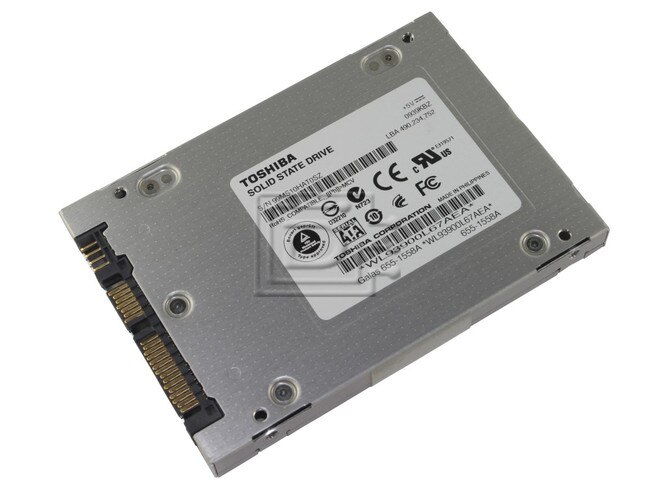

Toshiba THNSNJ120PCSZ 120GB SATA Solid State Drive
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 5 Year ManufacturerWarrantyProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
| Capacity: | 120GB |
| Speed: | Solid State |
| Interface Types: | SATA |
| Form Factor: | 2.5" x 7mm Fits All laptops |
| SSD Endurance DWPD: | Enterprise Read Intensive / RI |
| Electrical Interface: | SATA 600 - 6Gbps |
Description
Toshiba HK3R2 Series THNSNJ120PCSZ 120GB 6Gbps eMLC Read Intensive 1-DWPD SATA SSD - Brand New
Toshiba HK3R2 Series THNSNJ120PCSZ 120GB 6.0 Gb/s Enterprise Multi-Level Cell Read Intensive 1-DWPD Serial ATA Solid- State Disk Drive - Brand New
Enterprise Read Intensive SSD
The HK3R2 Enterprise SATA SSD series is optimized for read-intensive enterprise storage applications where performance, low power consumption and data-integrity are critical. Equipped with a Toshiba designed SATA SSD controller, the series comes in a 2.5-inch 7.0 mm form factor and with capacities of 120 GB (THNSNJ120PCSZ), 240 GB (THNSNJ240PCSZ), 480 GB (THNSNJ480PCSZ) and 960 GB (THNSNJ960PCSZ). The read-intensive Enterprise SSDs incorporate Toshiba Quadruple Swing-By Code (QSBC), a highly efficient error correction code (ECC) for improved reliability. 1 DWPD (Drive Writes Per Day) endurance with random 4 KiB workload, Power Loss Protection and end-to-end data protection highlight the enterprise features of the HK3R2 Enterprise SSD series.
Key Features
- SATA 6.0 Gbit/s Interface
- Capacities up to 960 GB
- 1 DWPD endurance w/ full random 4 KiB workload
- Power Loss Protection and End-to-End Protection
- Quadruple Swing-By Code Technology (QSBC)
Application
- Web / File Server
- Content Distribution NetworkVideo on Demand (VoD) / Media Streaming
- Operating System Boot & Logging
- Low-Duty Storage Systems
- Industrial Applications
Compatibility
This drive is compatible with any server that accepts 2.5in x 7mm SATA drives.
Specifications
| Basic Specification | |
|---|---|
| Intel Model Number | THNSNJ120PCSZ |
| Interface | SATA-3.2 |
| Interface Speed | 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s |
| Memory Type | MLC |
| Formatted Capacity | 120GB |
| Sustained 64KiB Sequential Read | 500 MiB/s |
| Sustained 64KiB Sequential Write | 120 MiB/s |
| Sustained 4KiB Random Read | 75,000 IOPS |
| Sustained 4KiB Random Write | 4,000 IOPS |
| Reliability | |
| MTTF | 2,000,000 hours |
| DWPD | 1 |
| Power Requirements | |
| Supply Voltage | 5 V ±5 % |
| Power Consumption (Operating) | 4.5 W Typ. |
| Power Consumption (Ready) | 1.0 W Typ. |
| Dimension | |
| Height | 7.0 mm +0 , -0.5 mm |
| Width | 69.85 ±0.25 mm |
| Length | 100.45 mm Max. |
| Weight | 60 g Max |
| Environmental Specifications | |
| Temperature (Operating) | 0 to 55 °C |
| Relative Humidity (Operating) | 5 to 95 % R.H. |
| Vibration (Operating) | 21 m/s {2.17 Grms} (100 to 800 Hz) |
| Shock (Operating) | 9,800 m/s {1,000 G} (0.5 ms duration) |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1 lb
Warranty: 5 Year Manufacturer
Condition
The product is brand new.
Warranty
5 Year Manufacturer Warranty
