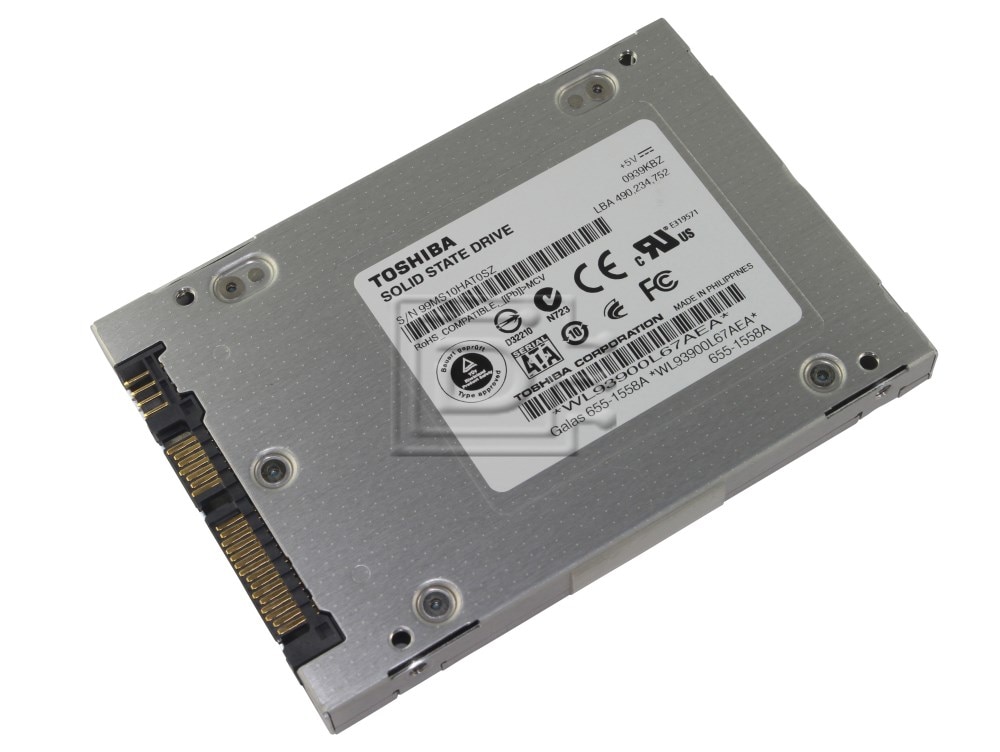

Toshiba THNSNJ200PCSZ 200GB SATA Solid State Drive
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 5 Year ManufacturerWarrantyProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
| Capacity: | 200GB |
| Speed: | Solid State |
| Interface Types: | SATA |
| Form Factor: | 2.5" x 7mm Fits All laptops |
| SSD Endurance DWPD: | Enterprise Read Intensive / RI |
| Electrical Interface: | SATA 600 - 6Gbps |
Description
Toshiba HK3E2 Series THNSNJ200PCSZ 200GB 6Gbps eMLC Value Endurance Read Intensive 3-DWPD SATA SSD - Brand New
Toshiba HK3E2 Series THNSNJ200PCSZ 200GB 6.0 Gb/s Enterprise Multi-Level Cell Value Endurance Read Intensive 3-DWPD Serial ATA Solid State Disk Drive - Brand New
Enterprise Value Endurance SSD
The HK3E2 value-endurance Enterprise SATA SSD series comes in a 2.5-inch 7.0 mm form factor with Toshiba MLC NAND flash memory. Equipped with Toshiba proprietary Quadruple Swing-By Code (QSBC) ECC error-correction technology, the HK3E2 Series supports 3 DWPD (Drive Writes Per Day) with a random data, 4 KiB workload. Additional enterprise-class features include End-to-End Data Protection and Power Loss Protection. The HK3E2 Enterprise SSD family is optimized for Enterprise server and storage systems such as mail and web servers, SQL databases and data center storage.
Key Features
- SATA 6.0 Gbit/s Interface
- Capacities up to 800 GB
- 3 DWPD endurance w/ full random 4 KiB workload
- Power Loss Protection and End-to-End Data Protection
- Quadruple Swing-By Code Technology (QSBC)
Application
- Enterprise server and storage systems
- Exchange mail servers
- Web servers
- SQL databases
- Indexing
- Data center storage
Compatibility
This drive is compatible with any sever that accepts 2.5in x 7mm SATA drives.
Specifications
| Basic Specification | |
|---|---|
| Intel Model Number | THNSNJ200PCSZ |
| Interface | SATA-3.2 |
| Interface Speed | 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s |
| Memory Type | MLC |
| Formatted Capacity | 200GB |
| Sustained 64KiB Sequential Read | 500 MiB/s |
| Sustained 64KiB Sequential Write | 270 MiB/s |
| Sustained 4KiB Random Read | 75,000 IOPS |
| Sustained 4KiB Random Write | 20,000 IOPS |
| Reliability | |
| MTTF | 2,000,000 hours |
| DWPD | 3 |
| Power Requirements | |
| Supply Voltage | 5 V ±5 % |
| Power Consumption (Operating) | 4.5 W Typ. |
| Power Consumption (Ready) | 1.0 W Typ. |
| Dimension | |
| Height | 7.0 mm +0 , -0.5 mm |
| Width | 69.85 ±0.25 mm |
| Length | 100.45 mm Max. |
| Weight | 60 g Max |
| Environmental Specifications | |
| Temperature (Operating) | 0 to 55 °C |
| Relative Humidity (Operating) | 5 to 95 % R.H. |
| Vibration (Operating) | 21 m/s {2.17 Grms} (100 to 800 Hz) |
| Shock (Operating) | 9,800 m/s {1,000 G} (0.5 ms duration) |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1 lb
Warranty: 5 Year Manufacturer
Condition
The product is brand new.
Warranty
5 Year Manufacturer Warranty
