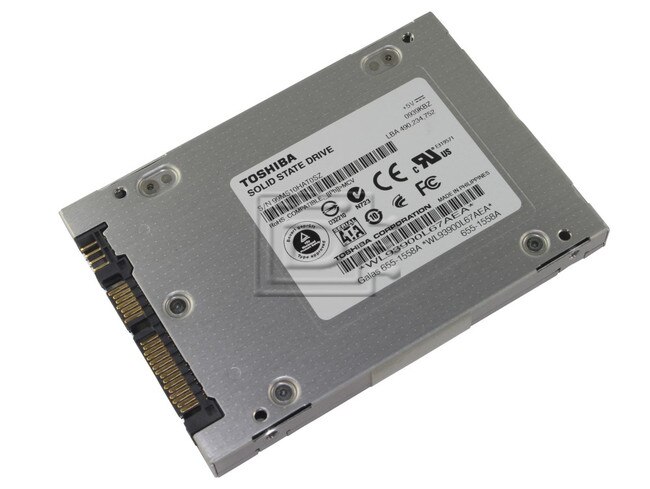

Toshiba THNSNJ480PCS3 480GB SATA eSSD

  • Low Stock:Call for ETA
$399.00

Capacity:480GB
Speed:Solid State
Interface Types:SATA
Form Factor:2.5" x 7mm Fits All laptops
SSD Endurance DWPD:Enterprise Read Intensive / RI
Electrical Interface:SATA 600 - 6Gbps
Click to see more 480GB SATA Solid State Drives

Description

Toshiba THNSNJ480PCS3 480GB 2.5" 6Gbps SATA MLC Enterprise Read-Intensive 1-DWPD SSD - Brand New

Toshiba THNSNJ480PCS3 480GB 2.5" 6Gbps SATA MLC Enterprise Read-Intensive 1-DWPD SSD - Brand New

The HK3R range is designed for use in tiered server storage systems and any read-intensive applications such as fast boot drives and for cache and error logging. The eSSDs are fitted with a 6Gbit/s SATA 3.0 interface and come in a 2.5 inch (6.4cm) form factor. Using state-of-the-art 19nm MLC NAND, the drives achieve sequential read speeds of 500MiB/s and random read speeds of 75,000 IOPS.

All eSSDs of this series feature full power loss protection and end-to-end data protection. The drives also incorporate Toshiba’s robust and highly efficient Quadruple Swing-By Code (QSBC™) for improved error correction and reliability.

  • 19 nm MLC NAND Flash
  • 6Gbit/s SATA 3.0 Interface
  • Quadruple Swing-By Code (QSBC) technology
  • Power loss protection
  • End-to-end data protection

Compatibility

This drive is compatible with any server that accepts 2.5"x7mm (Thin Case) drives

Specifications

Drive ModelTHNSNJ480PCS3
Capacity480GB
Performance
Interface TypeSATA 3.0 (6/3/1.5 Gbps)
Memory19mn MLC NAND Flash Memory
Performance: Random read (4KiB)75,000 IOPS
Performance: Random write (4 KiB)12,000 IOPS
Performance: Sequential read (64 KiB)500 MByte/s
Performance: Sequential write (64 KiB)400 MByte/s
Physical
Form factor2.5 inch
Height (in/mm)0.28/7.0
Width (in/mm)2.75/69.85
Depth (in/mm)3.95/100.45
Weight (lb/g)0.132/60.0
Ambient temperature (operating)From 0 °C to +55 °C
Ambient temperature (non-operating)From -40 °C to +70 °C
Shock resistance (operating)9,800 m/s2 {1,000G} / 0.5 ms duration
Shock resistance (non-operating)9,800 m/s2 {1,000G} / 0.5 ms duration
Vibration (operating)21.27 m/s2 {2.17Grms} (5 to 800Hz)
Vibration (non-operating)159.74 m/s2 {16.3Grms} (20 to 2,000Hz)
Reliability
MTTF2,000,000 Hours
Product life5
Operating condition24 hours/day, 7 days/week

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 0.5 lb

Warranty: 5 Year Manufacturer
