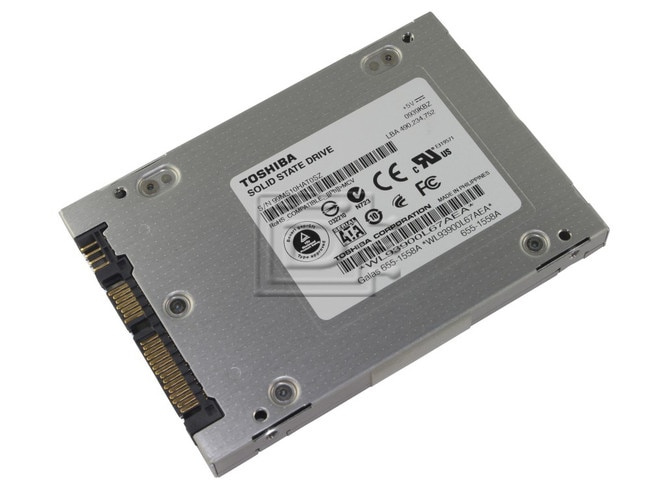

Toshiba THNSNJ480PCSZ 480GB SATA Solid State Drive

Toshiba Part #/MPN: THNSNJ480PCSZ

DiscTech Item #: TOS-THNSNJ480PCSZ-BN-5Y


$385.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$385.00

Enterprise Grade

Capacity: 480GB

Speed: Solid State Memory

Interface Types: SATA

Form Factor: 2.5inx7mm Fits All laptops

Sector Size: 512 / 512e

Sustained Throughput: 500/400

Electrical Interface: SATA 600 - 6.0Gbps

SSD Type: MLC

SSD Endurance DWPD: Enterprise Read Intensive

Toshiba HK3R2 Series THNSNJ480PCSZ 480GB 6Gbps eMLC Read Intensive 1-DWPD SATA SSD - Brand New

Toshiba HK3R2 Series THNSNJ480PCSZ 480GB 6.0 Gb/s Enterprise Multi-Level Cell Read Intensive 1-DWPD Serial ATA Solid-State Disk Drive - Brand New

Enterprise Read Intensive SSD
The HK3R2 Enterprise SATA SSD series is optimized for read-intensive enterprise storage applications where performance, low power consumption and data-integrity are critical. Equipped with a Toshiba designed SATA SSD controller, the series comes in a 2.5-inch 7.0 mm form factor and with capacities of 120 GB (THNSNJ120PCSZ), 240 GB (THNSNJ240PCSZ), 480 GB (THNSNJ480PCSZ) and 960 GB (THNSNJ960PCSZ). The read-intensive Enterprise SSDs incorporate Toshiba Quadruple Swing-By Code (QSBC), a highly efficient error correction code (ECC) for improved reliability. 1 DWPD (Drive Writes Per Day) endurance with random 4 KiB workload, Power Loss Protection and end-to-end data protection highlight the enterprise features of the HK3R2 Enterprise SSD series.

Key Features

  • SATA 6.0 Gbit/s Interface
  • Capacities up to 960 GB
  • 1 DWPD endurance w/ full random 4 KiB workload
  • Power Loss Protection and End-to-End Protection
  • Quadruple Swing-By Code Technology (QSBC)

Application

  • Web / File Server
  • Content Distribution NetworkVideo on Demand (VoD) / Media Streaming
  • Operating System Boot & Logging
  • Low-Duty Storage Systems
  • Industrial Applications


Compatibility:

This drive is compatible with any server that accepts 2.5in x 7mm SATA drives.

Basic Specification
Intel Model NumberTHNSNJ480PCSZ
InterfaceSATA-3.2
Interface Speed6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s
Memory TypeMLC
Formatted Capacity480GB
Sustained 64KiB Sequential Read500 MiB/s
Sustained 64KiB Sequential Write400 MiB/s
Sustained 4KiB Random Read75,000 IOPS
Sustained 4KiB Random Write12,000 IOPS
Reliability
MTTF2,000,000 hours
DWPD1
Power Requirements
Supply Voltage5 V ±5 %
Power Consumption (Operating)4.5 W Typ.
Power Consumption (Ready)1.0 W Typ.
Dimension
Height7.0 mm +0 , -0.5 mm
Width69.85 ±0.25 mm
Length100.45 mm Max.
Weight60 g Max
Environmental Specifications
Temperature (Operating)0 to 55 °C
Relative Humidity (Operating)5 to 95 % R.H.
Vibration (Operating)21 m/s {2.17 Grms} (100 to 800 Hz)
Shock (Operating)9,800 m/s {1,000 G} (0.5 ms duration)

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 1 lb

Warranty: 5 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

5 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
