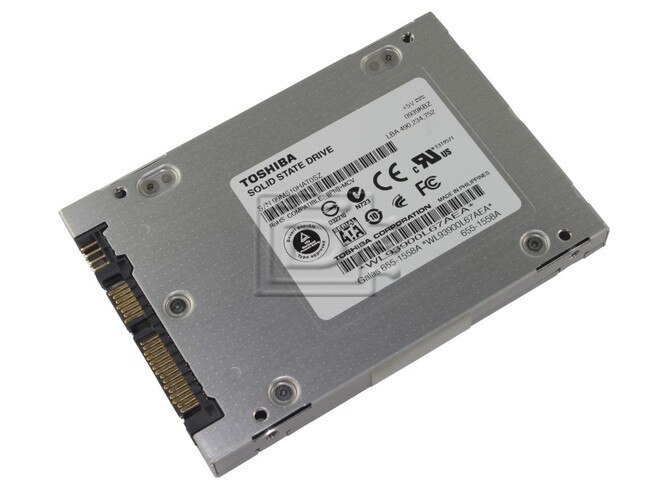

Toshiba THNSNJ800PCSZ 800GB SATA Solid State Drive

Toshiba Part #/MPN: THNSNJ800PCSZ

DiscTech Item #: TOS-THNSNJ800PCSZ-BN-5Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Enterprise Grade

Capacity: 800GB

Speed: Solid State Memory

Interface Types: SATA

Form Factor: 2.5inx7mm Fits All laptops

Sector Size: 512 / 512e

Sustained Throughput: 500/400

Electrical Interface: SATA 600 - 6.0Gbps


SSD Endurance DWPD: Enterprise Read Intensive

Toshiba HK3E2 Series THNSNJ800PCSZ 800GB 6Gbps eMLC Value Endurance Read Intensive 3-DWPD SATA SSD - Brand New

Toshiba HK3E2 Series THNSNJ800PCSZ 800GB 6.0 Gb/s Enterprise Multi-Level Cell Value Endurance Read Intensive 3-DWPD Serial ATA Solid State Disk Drive - Brand New

Enterprise Value Endurance SSD
The HK3E2 value-endurance Enterprise SATA SSD series comes in a 2.5-inch 7.0 mm form factor with Toshiba MLC NAND flash memory. Equipped with Toshiba proprietary Quadruple Swing-By Code (QSBC) ECC error-correction technology, the HK3E2 Series supports 3 DWPD (Drive Writes Per Day) with a random data, 4 KiB workload. Additional enterprise-class features include End-to-End Data Protection and Power Loss Protection. The HK3E2 Enterprise SSD family is optimized for Enterprise server and storage systems such as mail and web servers, SQL databases and data center storage.

Key Features

  • SATA 6.0 Gbit/s Interface
  • Capacities up to 800 GB
  • 3 DWPD endurance w/ full random 4 KiB workload
  • Power Loss Protection and End-to-End Data Protection
  • Quadruple Swing-By Code Technology (QSBC)


  • Enterprise server and storage systems
  • Exchange mail servers
  • Web servers
  • SQL databases
  • Indexing
  • Data center storage


This drive is compatible with any server that accepts 2.5in x 7mm SATA drives.

Basic Specification
Intel Model NumberTHNSNJ800PCSZ
Interface Speed6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s
Memory TypeMLC
Formatted Capacity800GB
Sustained 64KiB Sequential Read500 MiB/s
Sustained 64KiB Sequential Write400 MiB/s
Sustained 4KiB Random Read75,000 IOPS
Sustained 4KiB Random Write30,000 IOPS
MTTF2,000,000 hours
Power Requirements
Supply Voltage5 V ±5 %
Power Consumption (Operating)4.5 W Typ.
Power Consumption (Ready)1.0 W Typ.
Height7.0 mm +0 , -0.5 mm
Width69.85 ±0.25 mm
Length100.45 mm Max.
Weight60 g Max
Environmental Specifications
Temperature (Operating)0 to 55 °C
Relative Humidity (Operating)5 to 95 % R.H.
Vibration (Operating)21 m/s {2.17 Grms} (100 to 800 Hz)
Shock (Operating)9,800 m/s {1,000 G} (0.5 ms duration)

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 1 lb

Warranty: 5 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

5 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
